Molex 96-pin DIN connector No. of rows: 1 Pins per row: 4 5055680471 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
96-pin DIN connector
No. of rows
1
Total number of pins
4
CS
1.25 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.50
9
8% = € 0.04
€ 0.46
15
10% = € 0.05
€ 0.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.50 / piece)
€ 0.50
plus VAT.
14-day return policy included
Highlights & Details
Micro-Lock-Plus 1.25
- Content 1 pc(s)
- No. of rows 1
- Pins per row 4
Our service for you
Technical specifications
- Please review the product datasheet for further information.
- Packaging type
Tape on Full reel
- Product type
96-pin DIN connector
- No. of rows
1
- Pins per row
4
- Total number of pins
4
- CS
1.25 mm
- Connection
SMT
- Factory colour
Black
- Nominal voltage
50 V DC/AC
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Contact material
Brass
- Case material
Polyamide
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
5055680471
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
MOL Power & Signal Sol.
Documents & Downloads
Datasheet
Datasheet 2901132 Molex 96-pin DIN connector No. of rows: 1 Pins per row: 4 5055680471 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 2901132 Molex 96-pin DIN connector No. of rows: 1 Pins per row: 4 5055680471 1 pc(s) Tape on Full reel
Circuit diagramm
Circuit diagramm 2901132 Molex 96-pin DIN connector No. of rows: 1 Pins per row: 4 5055680471 1 pc(s) Tape on Full reel
Description

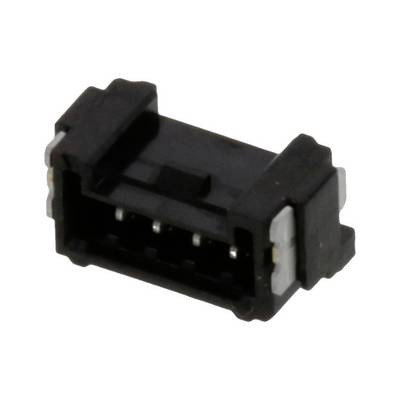

1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Vertical, Surface Mount, Tin-Bismuth Plating, Positive Lock, 4 Circuits, with Pick-and-Place Tape, Black
