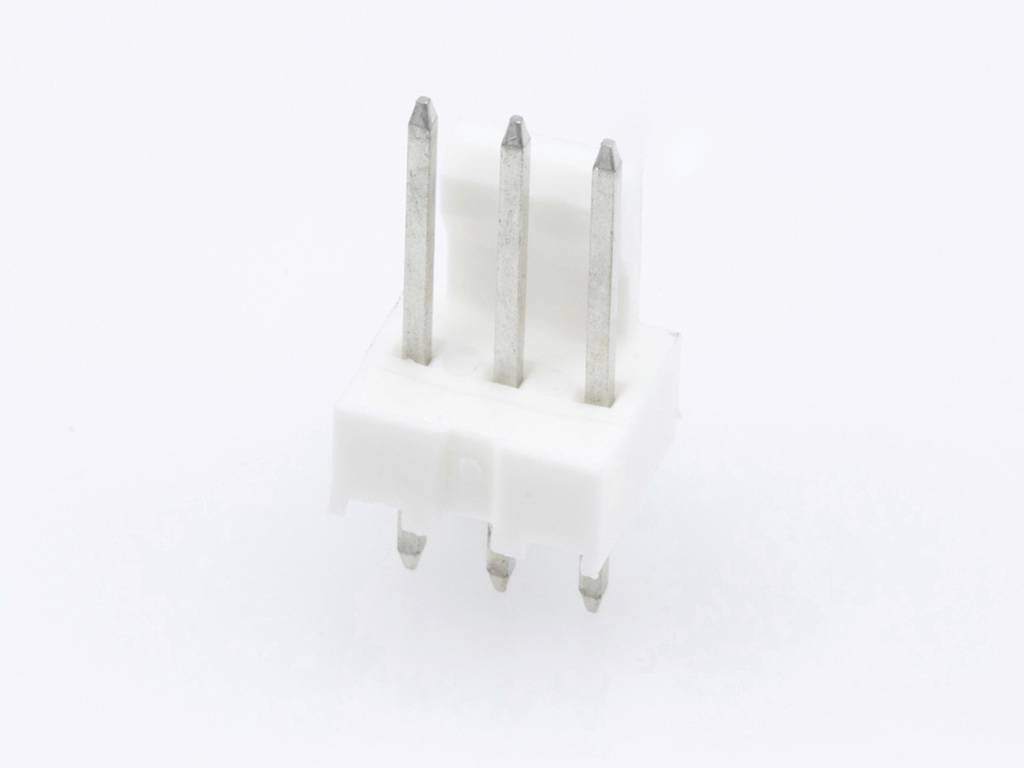

Molex Built-in pin strip (standard) 254 Total number of pins 3 Contact spacing: 2.54 mm 22232031 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
Series
254
CS
2.54 mm
Total number of pins
3
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.22
30
9% = € 0.02
€ 0.20
50
14% = € 0.03
€ 0.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.22 / piece)
€ 0.23
€ 2.20
plus VAT.
14-day return policy included
Highlights & Details
KK® 254
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Series
254
- Features
+ locking mechanism
- CS
2.54 mm
- Pins per row
3
- Total number of pins
3
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Content
1 pc(s)
- Connection
Soldering
- Actuation direction
Perpendicular (to the PCB)
- Case material
Nylon (NL)
- Manufacturer part #
22232031
- Factory colour
Ecru white
- Contact material
Brass
- Board contact surface
Tin plated
- Connector contact surface
Tin
- Nominal voltage
500 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
A-6373-03A222
- Engineering Series Name
100 HDR FLK STR SQ N
- Engineering Series No
06373
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2447922 Molex Built-in pin strip (standard) 254 Total number of pins 3 Contact spacing: 2.54 mm 22232031 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447922 Molex Built-in pin strip (standard) 254 Total number of pins 3 Contact spacing: 2.54 mm 22232031 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447922 Molex Built-in pin strip (standard) 254 Total number of pins 3 Contact spacing: 2.54 mm 22232031 1 pc(s) Bag
Description
KK 254 Solid Header, Vertical, with Friction Lock, 3 Circuits, Tin (Sn) Plating, Bag
