Molex Built-in pin strip (standard) 254 Total number of pins 36 Contact spacing: 2.54 mm 22286360 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
Series
254
CS
2.54 mm
Total number of pins
36
Datasheet (PDF)
Number
Total (€ 0.81 / piece)
€ 1.84
-56 %
€ 0.81
plus VAT.
Only 1 Piece(s) available
Highlights & Details
KK® 254
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 36
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Series
254
- Features
tin-plated
- CS
2.54 mm
- Pins per row
36
- Total number of pins
36
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
2.54 µm
- Connector coating thickness
2.54 µm
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
22286360
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
500 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
42376-0036
- Engineering Series Name
.100 BKWY
- Engineering Series No
42376
Documents & Downloads
Datasheet
Datasheet 2447960 Molex Built-in pin strip (standard) 254 Total number of pins 36 Contact spacing: 2.54 mm 22286360 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447960 Molex Built-in pin strip (standard) 254 Total number of pins 36 Contact spacing: 2.54 mm 22286360 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447960 Molex Built-in pin strip (standard) 254 Total number of pins 36 Contact spacing: 2.54 mm 22286360 1 pc(s) Bag
Description

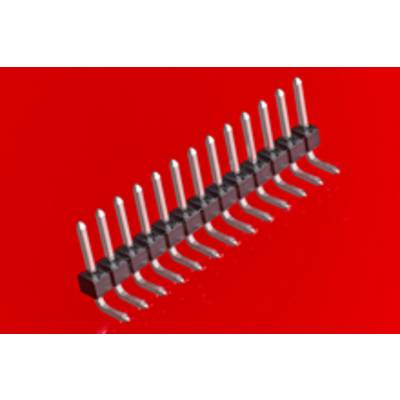

KK 254 Breakaway Header, Right-Angle, 36 Circuits, Tin (Sn) Plating, Mating Pin Length 9.17mm (.361")
