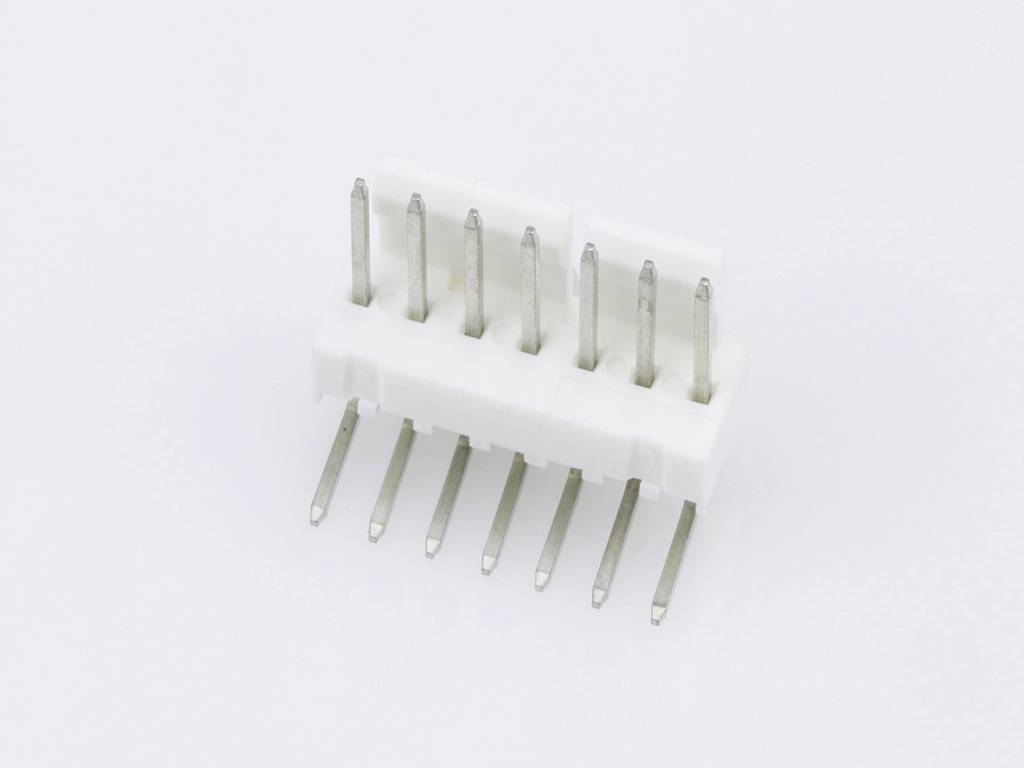

Molex Built-in pin strip (standard) 254 Total number of pins 7 Contact spacing: 2.54 mm 22053071 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
Series
254
CS
2.54 mm
Total number of pins
7
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.08
9
7% = € 0.08
€ 1.00
15
11% = € 0.12
€ 0.96
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.08 / piece)
€ 1.08
plus VAT.
14-day return policy included
Highlights & Details
KK® 254
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 7
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Series
254
- Features
Stackable
+ locking mechanism
- CS
2.54 mm
- Pins per row
7
- Total number of pins
7
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
5.08 µm
- Connector coating thickness
5.08 µm
- Case material
Nylon (NL)
- Manufacturer part #
22053071
- Factory colour
Ecru white
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
500 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
A-7478-07A222
- Engineering Series Name
100 HDR FLK RA SQ NY
- Engineering Series No
07478
Documents & Downloads
Datasheet
Datasheet 2447849 Molex Built-in pin strip (standard) 254 Total number of pins 7 Contact spacing: 2.54 mm 22053071 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447849 Molex Built-in pin strip (standard) 254 Total number of pins 7 Contact spacing: 2.54 mm 22053071 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447849 Molex Built-in pin strip (standard) 254 Total number of pins 7 Contact spacing: 2.54 mm 22053071 1 pc(s) Bag
Description
KK 254 Solid Header, Right-Angle, with Friction Lock, 7 Circuits, Tin (Sn) Plating
