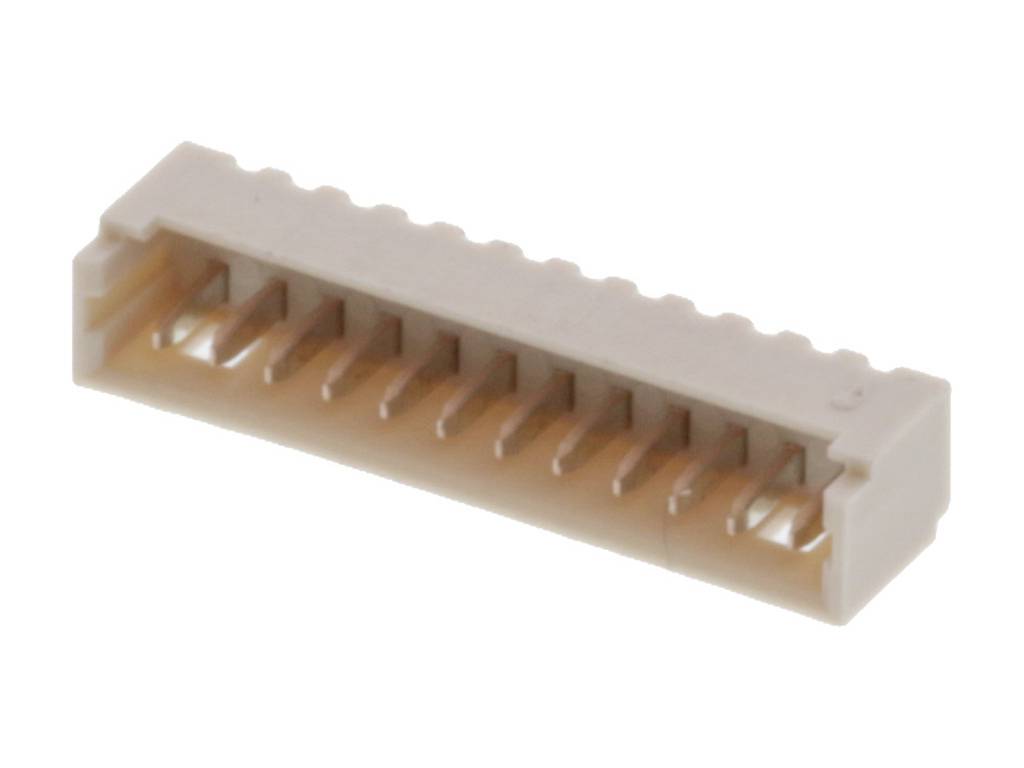

Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 1.25 mm 530471210 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
1.25 mm
Total number of pins
12
Packaging type
Tray
Datasheet (PDF)
Number
Total (€ 0.49 / piece)
€ 0.68
-28 %
€ 0.49
plus VAT.
14-day return policy included
Highlights & Details
PicoBlade 1.25
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 12
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
1.25 mm
- Pins per row
12
- Total number of pins
12
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Content
1 pc(s)
- Connection
Soldering
- Actuation direction
Perpendicular (to the PCB)
- Case material
Nylon (NL)
- Manufacturer part #
530471210
- Factory colour
Ecru
- Contact material
Phosphorus bronze
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
125 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
53047-1210
- Engineering Series Name
WtB Hdr Str THole
- Engineering Series No
53047
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2449593 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 1.25 mm 530471210 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2449593 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 1.25 mm 530471210 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2449593 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 1.25 mm 530471210 1 pc(s) Tray
Description
1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 12 Circuits, Tray, 2.30mm PC Tail Length
