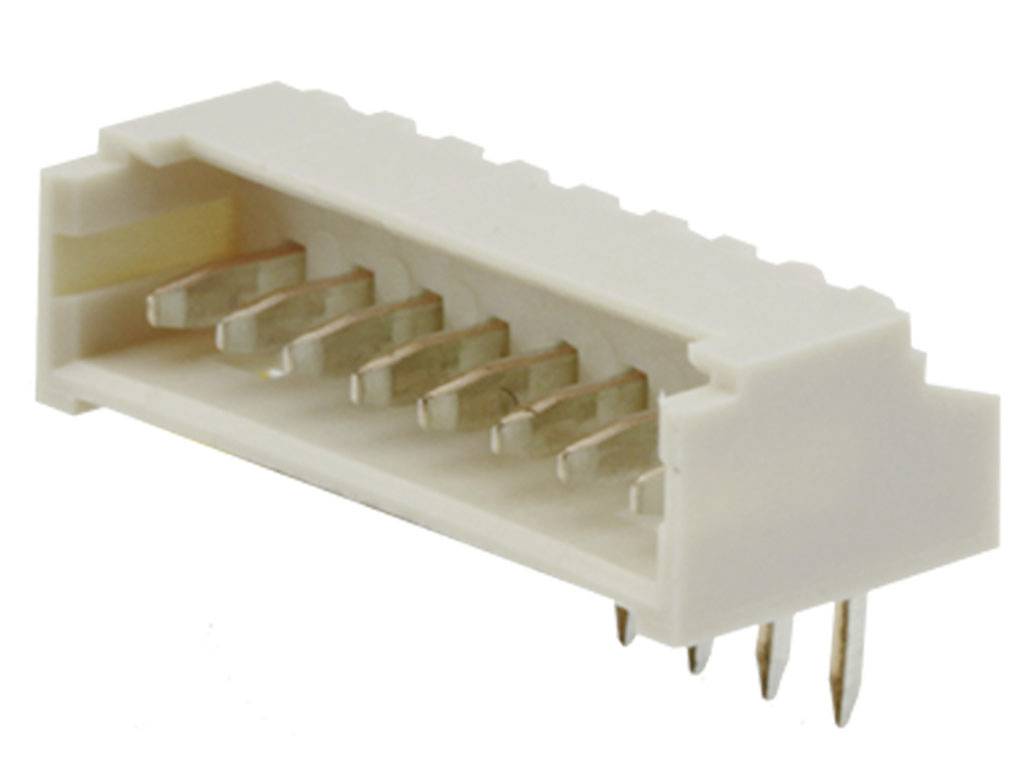

Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 1.25 mm 530481410 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
1.25 mm
Total number of pins
14
Packaging type
Tray
Datasheet (PDF)
Number
Minimum order quantity: 2000
Total (€ 0.71 / piece)
€ 0.78
-9 %
€ 1,420.00
plus VAT.
14-day return policy included
Highlights & Details
PicoBlade 1.25
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 14
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Features
+ locking mechanism
- CS
1.25 mm
- Pins per row
1
- Total number of pins
14
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Case material
Nylon (NL)
- Manufacturer part #
530481410
- Factory colour
Ecru
- Contact material
Tin plated
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
125 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
53048-1410
- Engineering Series Name
WtB Hdr RA Thole
- Engineering Series No
53048
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2449599 Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 1.25 mm 530481410 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2449599 Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 1.25 mm 530481410 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2449599 Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 1.25 mm 530481410 1 pc(s) Tray
Description
1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Through Hole, Tin (Sn) Plating, Friction Lock, 14 Circuits, Tray, 2.30mm PC Tail Length
