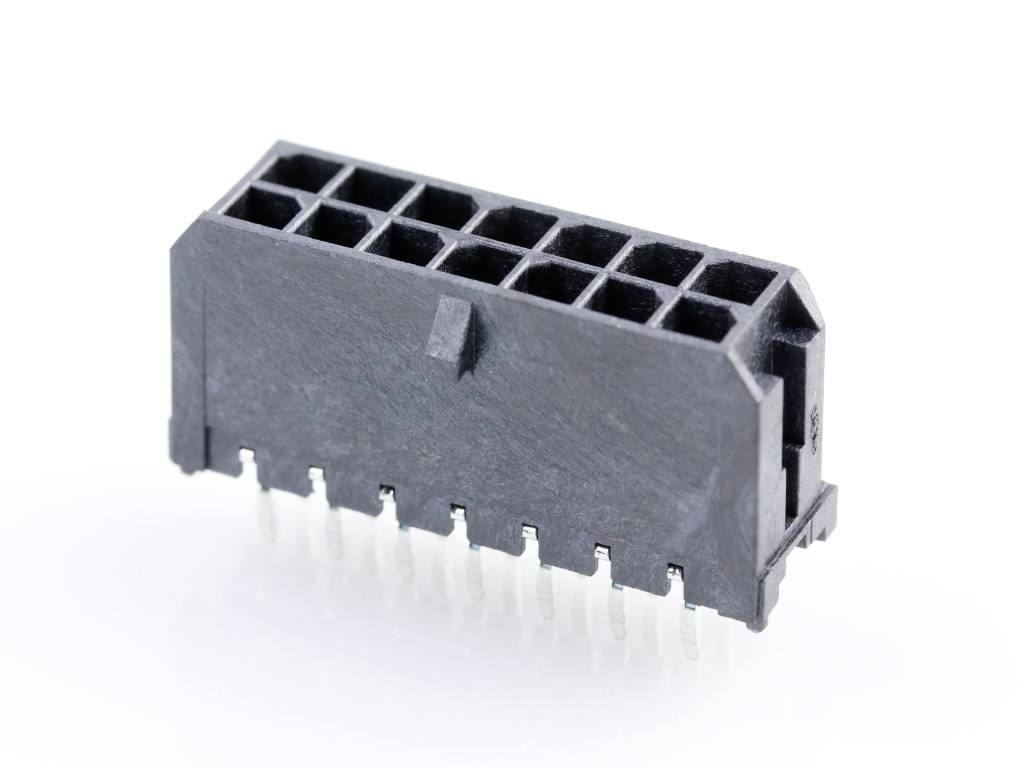

Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 3 mm 430451414 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
2
CS
3 mm
Total number of pins
14
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
78
-
€ 5.45
21
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 24.96
Number
Minimum order quantity: 78
Multiple: 78
Total (€ 5.13 / piece)
€ 400.14
plus VAT.
14-day return policy included
Highlights & Details
Micro Fit
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 14
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Connector system
wire-to-board
- CS
3 mm
- Pins per row
7
- Total number of pins
14
- Nominal current
8.5 A
- Nominal current - rounded value
8.5 A
- Content
1 pc(s)
- Connection
Print
- Connection angle
90°
- Connector coating thickness
0.762 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
430451414
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Gold
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
43045-1414
- Engineering Series Name
MICRO-FIT HDR ASSY
- Engineering Series No
43045
Documents & Downloads
Datasheet
Datasheet 2448658 Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 3 mm 430451414 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448658 Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 3 mm 430451414 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448658 Molex Built-in pin strip (standard) Total number of pins 14 Contact spacing: 3 mm 430451414 1 pc(s) Tray
Description
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 14 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
