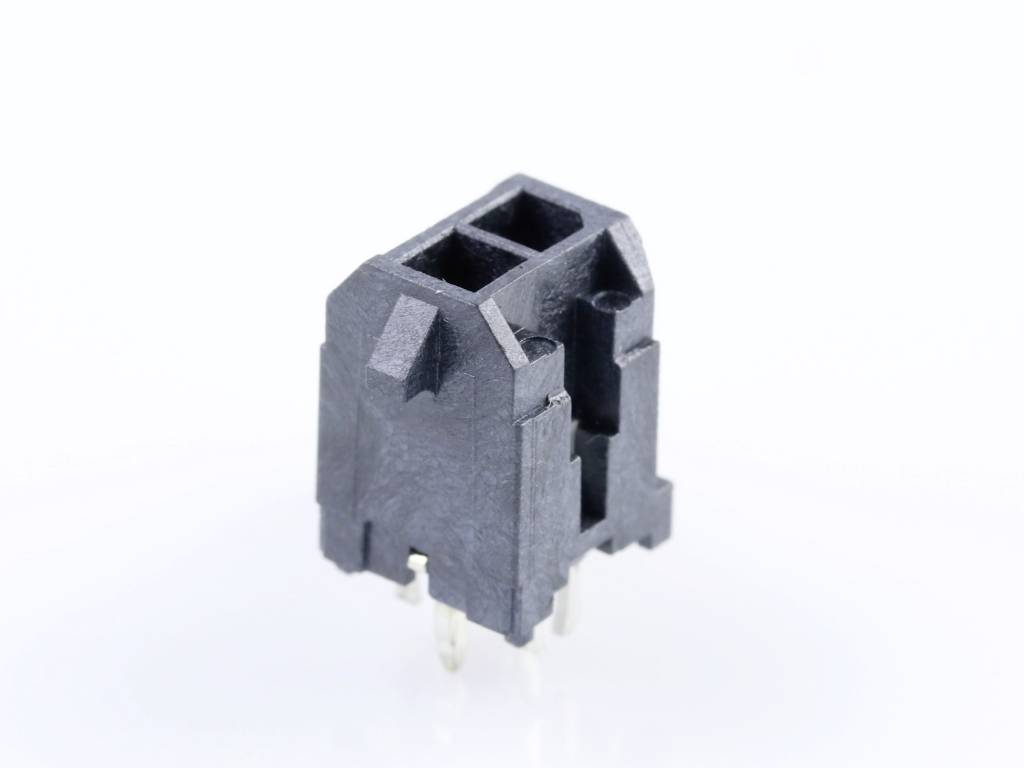

Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450224 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
2
CS
3 mm
Total number of pins
2
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
264
-
€ 0.82
90
7% = € 0.06
€ 0.76
150
11% = € 0.09
€ 0.73
Volume discounts vary depending on the seller
You save € 23.76
Number
Minimum order quantity: 264
Multiple: 264
Total (€ 0.73 / piece)
€ 1.00
-27 %
€ 192.72
plus VAT.
14-day return policy included
Highlights & Details
Micro Fit
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 2
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Connector system
wire-to-board
- Features
+ snap-in nibs
- CS
3 mm
- Pins per row
2
- Total number of pins
2
- Nominal current
8.5 A
- Nominal current - rounded value
8.5 A
- Content
1 pc(s)
- Connection
Print
- Connection angle
90°
- Connector coating thickness
0.254 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
430450224
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
43045-0224
- Engineering Series Name
MICRO-FIT HDR ASSY
- Engineering Series No
43045
Documents & Downloads
Datasheet
Datasheet 2448570 Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450224 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448570 Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450224 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448570 Molex Built-in pin strip (standard) Total number of pins 2 Contact spacing: 3 mm 430450224 1 pc(s) Tray
Description
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Press-fit Metal Retention Clip, Tin, Glow-Wire Capable, Black
