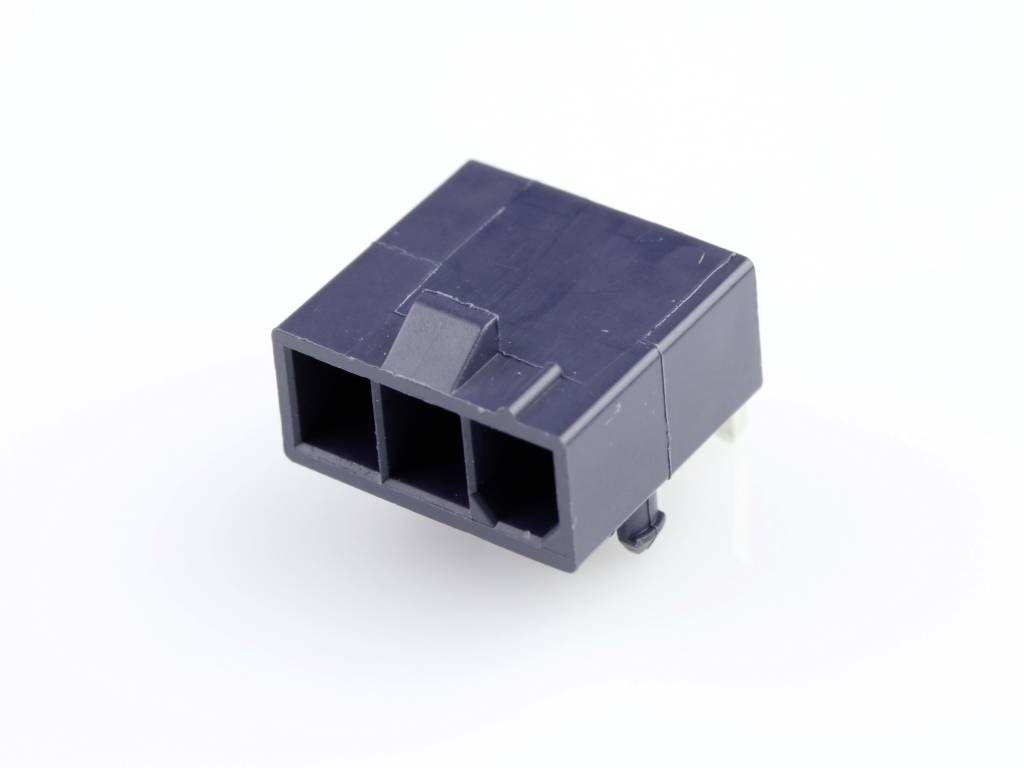

Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726480103 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
4.2 mm
Total number of pins
3
Packaging type
Bag
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 0.61
600
8% = € 0.05
€ 0.56
1000
10% = € 0.06
€ 0.55
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Total (€ 0.61 / piece)
€ 0.68
-10 %
€ 122.00
plus VAT.
14-day return policy included
Highlights & Details
MINI FIT
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Features
+ locking mechanism
- CS
4.2 mm
- Pins per row
3
- Total number of pins
3
- Nominal current
12.5 A
- Nominal current - rounded value
12.5 A
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Actuation direction
Parallel (to the PCB)
- Case material
Nylon (NL)
- Manufacturer part #
1726480103
- Factory colour
Black
- Insulation material
Nylon 6/6
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
172648-0103
- Engineering Series Name
MiniFit Jr RA Header
- Engineering Series No
172648
Documents & Downloads
Datasheet
Datasheet 2447474 Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726480103 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447474 Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726480103 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447474 Molex Built-in pin strip (standard) Total number of pins 3 Contact spacing: 4.2 mm 1726480103 1 pc(s) Bag
Description
Mini-Fit Jr. Header, Single Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 3 Circuits, PA Polyamide Nylon 6/6, 94V-2, Tin (Sn) Plating, Glow-Wire Capable
