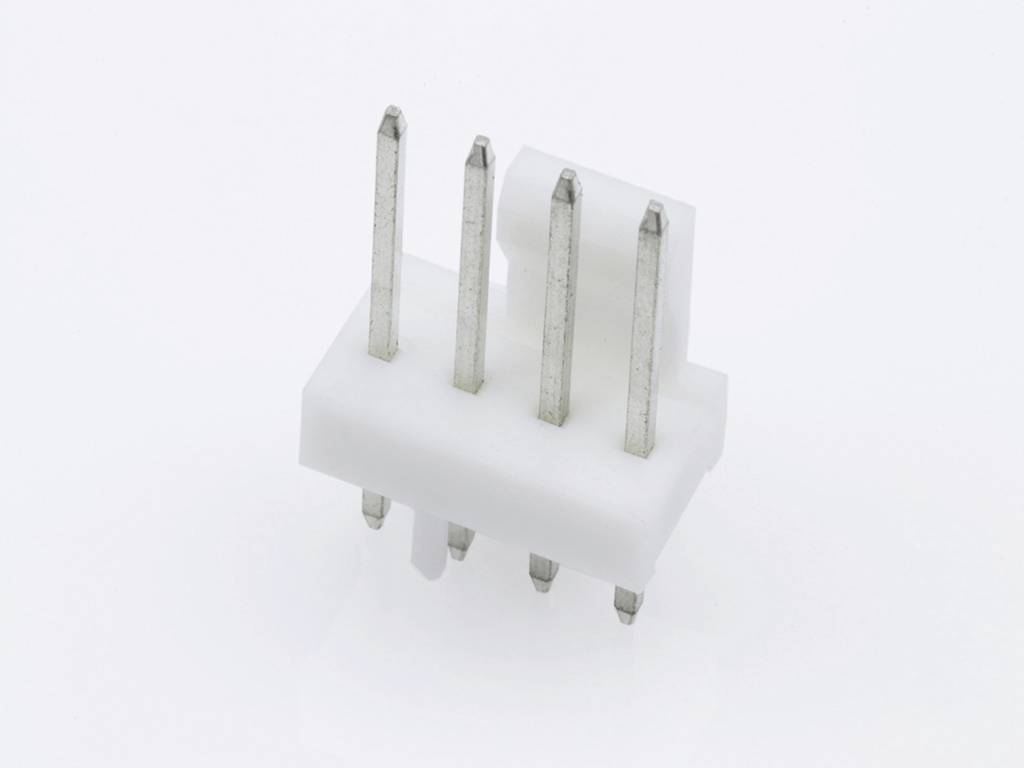

Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.54 mm 470531000 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
2.54 mm
Total number of pins
4
Packaging type
Bag
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.50
21
8% = € 0.04
€ 0.46
35
10% = € 0.05
€ 0.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.50 / piece)
€ 3.50
plus VAT.
14-day return policy included
Highlights & Details
KK® 254
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 4
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Features
+ locking mechanism
- CS
2.54 mm
- Pins per row
4
- Total number of pins
4
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
5.08 µm
- Connector coating thickness
5.08 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
Nylon (NL)
- Manufacturer part #
470531000
- Factory colour
Ecru white
- Contact material
Copper alloy
- Board contact surface
Copper
- Connector contact surface
Tin
- Nominal voltage
500 V
- Length
3.50 mm
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
47053-1000
- Engineering Series Name
4 pin header
- Engineering Series No
47053
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2448908 Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.54 mm 470531000 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2448908 Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.54 mm 470531000 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2448908 Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.54 mm 470531000 1 pc(s) Bag
Description
KK 254 Vertical Header, with Friction Lock, 4 Circuits, PC Tail Length 3.50mm, Bag
