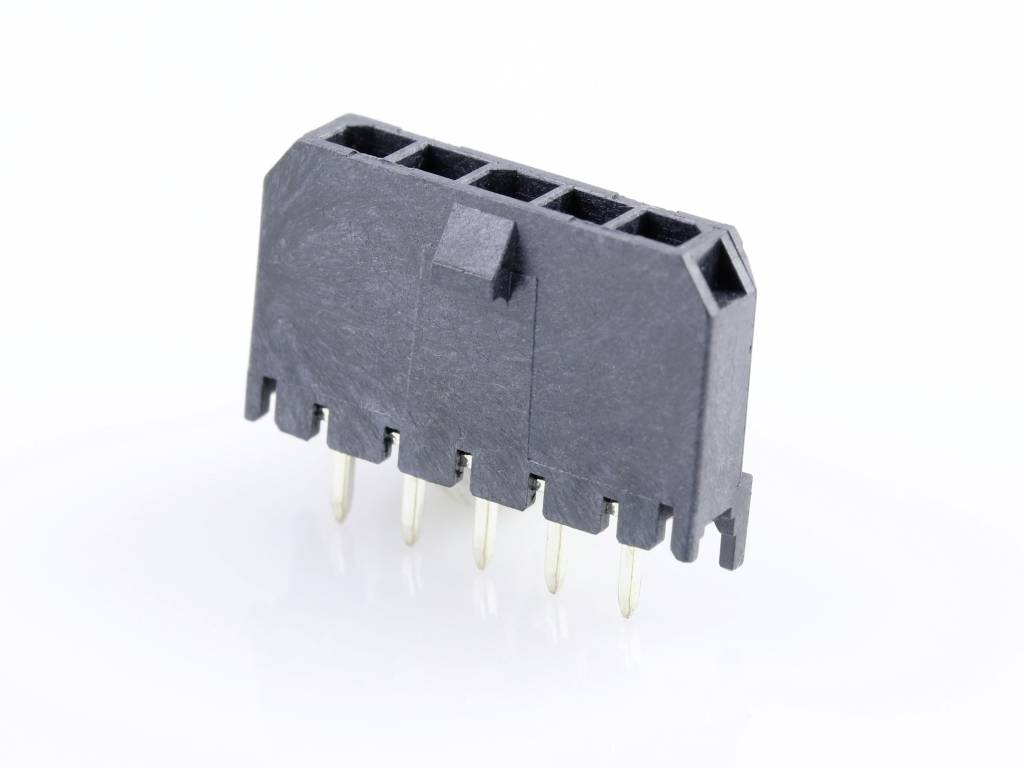

Molex Built-in pin strip (standard) Total number of pins 5 Contact spacing: 3 mm 436500529 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
3 mm
Total number of pins
5
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
918
-
€ 2.09
2601
8% = € 0.16
€ 1.93
4335
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 918
Multiple: 102
Total (€ 2.09 / piece)
€ 1,918.62
plus VAT.
14-day return policy included
Highlights & Details
Micro Fit
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 5
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Features
+ locking mechanism
- CS
3 mm
- Pins per row
5
- Total number of pins
5
- Nominal current
8.5 A
- Nominal current - rounded value
8.5 A
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Coating thickness (PCB side)
2.54 µm
- Connector coating thickness
0.762 µm
- Case material
High temperature resistant thermoplastic
- Manufacturer part #
436500529
- Factory colour
Black
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Gold
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
43650-0529
- Engineering Series Name
MICROFIT SR HDR
- Engineering Series No
43650
Documents & Downloads
Datasheet
Datasheet 2448776 Molex Built-in pin strip (standard) Total number of pins 5 Contact spacing: 3 mm 436500529 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2448776 Molex Built-in pin strip (standard) Total number of pins 5 Contact spacing: 3 mm 436500529 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2448776 Molex Built-in pin strip (standard) Total number of pins 5 Contact spacing: 3 mm 436500529 1 pc(s) Tray
Description
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
