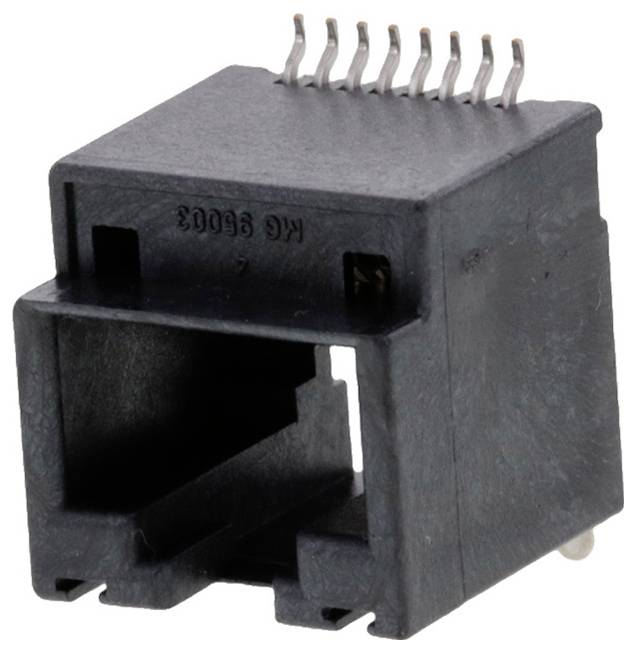

Molex Cat 3 Mod Jack/Plug 855105020 Socket Black 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
RJ45 socket module
Connector type
Socket
Connector standard
RJ45
Type
855105020
Datasheet (PDF)
Technical specifications
- Packaging type
Tape on Full reel
- Type
855105020
- Product type
RJ45 socket module
- Connector type
Socket
- Connector standard
RJ45
- Connection
SMT
- No. of ports
1 x
- Weight
3.132 g
- Factory colour
Black
- Content
1 pc(s)
- Contact material
Copper alloy
- Material
Thermoplastic
- Height
15.7 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Engineering Part No
855105020
- Engineering Series Name
T.E SMT JACK W/SOLD
- Engineering Series No
85510
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3036523 Molex Cat 3 Mod Jack/Plug 855105020 Socket Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3036523 Molex Cat 3 Mod Jack/Plug 855105020 Socket Black 1 pc(s)
Circuit diagramm
Circuit diagramm 3036523 Molex Cat 3 Mod Jack/Plug 855105020 Socket Black 1 pc(s)
Description
Modular Jack, Vertical, Top Entry, Surface Mount, 8/8, Solder Tabs, 13" Reel
