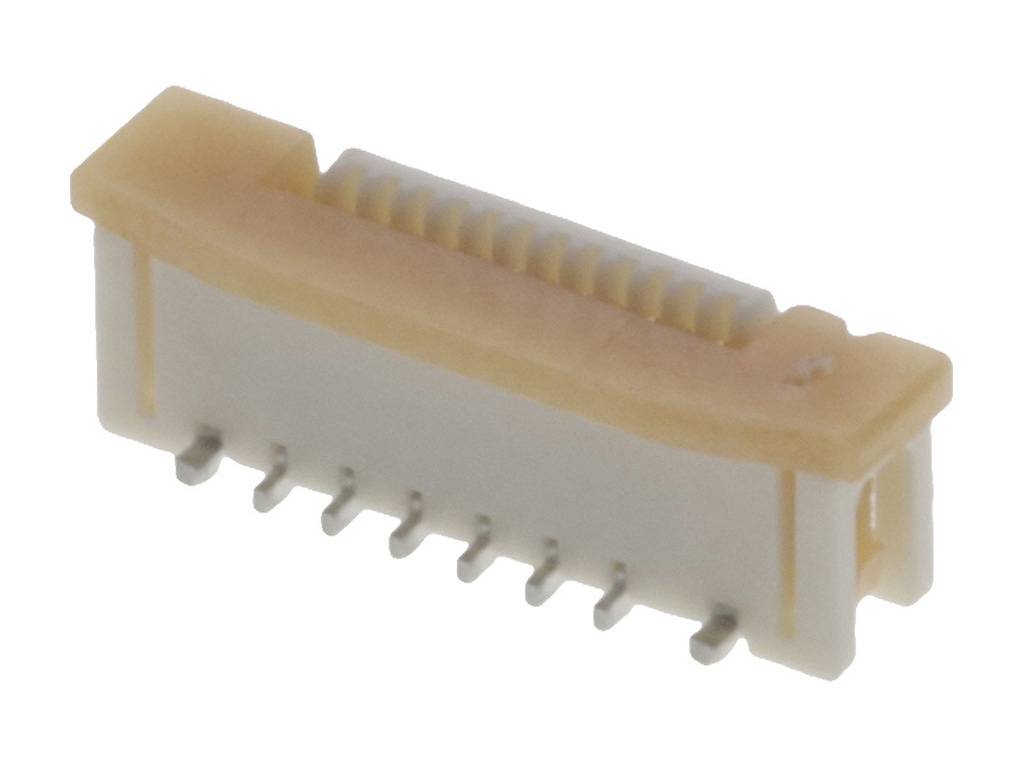

Molex FFC/FPC connector Total number of pins 12 Contact spacing: 0.5 mm 525591252 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
FFC/FPC connector
No. of rows
1
CS
0.5 mm
Total number of pins
12
Packaging type
Tape on Full reel
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
Highlights & Details
0.5mm FFC/FPC
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 12
Our service for you
Technical specifications
- Please review the product datasheet for further information.
- Packaging type
Tape on Full reel
- Product type
FFC/FPC connector
- No. of rows
1
- CS
0.5 mm
- Total number of pins
12
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Content
1 pc(s)
- Connection
SMT
- Case material
Nylon (NL)
- Manufacturer part #
525591252
- Contact material
Phosphorus bronze
- Board contact surface
Tin
- Connector contact surface
Gold
- Nominal voltage
50 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
MOL Micro Solutions
Documents & Downloads
Datasheet
Datasheet 2901198 Molex FFC/FPC connector Total number of pins 12 Contact spacing: 0.5 mm 525591252 1 pc(s) Tape on Full reel
Circuit diagramm
Circuit diagramm 2901198 Molex FFC/FPC connector Total number of pins 12 Contact spacing: 0.5 mm 525591252 1 pc(s) Tape on Full reel
Description
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 12 Circuits, Gold Plating
