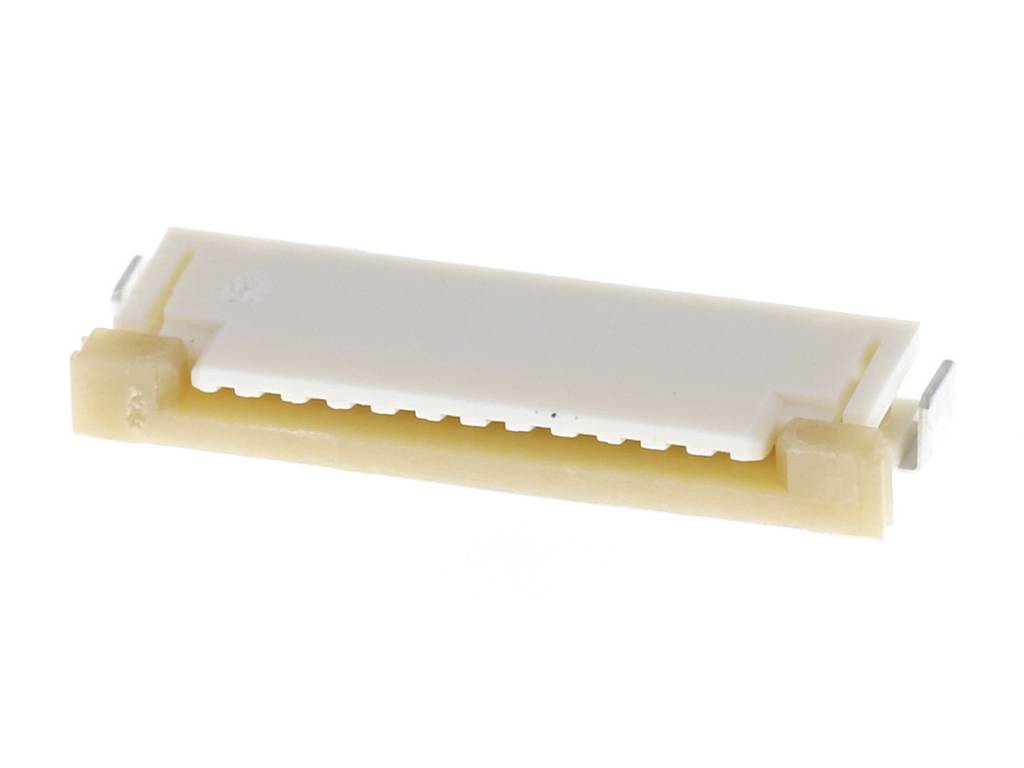

Molex FFC/FPC connector Total number of pins 12 Contact spacing: 1 mm 522071233 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
FFC/FPC connector
Connector type
right angle
No. of rows
1
CS
1 mm
Total number of pins
12
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.50
6
7% = € 0.11
€ 1.39
10
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 1.50 / piece)
€ 3.00
plus VAT.
14-day return policy included
Highlights & Details
FFC/FPC 1mm
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 12
Our service for you
Technical specifications
- Please review the product datasheet for further information.
- Packaging type
Tape on Full reel
- Product type
FFC/FPC connector
- Connector type
right angle
- No. of rows
1
- CS
1 mm
- Pins per row
12
- Total number of pins
12
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Content
1 pc(s)
- Connection
SMT
- Connection angle
90°
- Case material
Nylon (NL)
- Manufacturer part #
522071233
- Factory colour
Ecru
- Contact material
Phosphorus bronze
- Board contact surface
Silver alloy
- Connector contact surface
Silver alloy
- Nominal voltage
125 V
- Height
2.70 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
MOL Micro Solutions
Documents & Downloads
Datasheet
Datasheet 2901141 Molex FFC/FPC connector Total number of pins 12 Contact spacing: 1 mm 522071233 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 2901141 Molex FFC/FPC connector Total number of pins 12 Contact spacing: 1 mm 522071233 1 pc(s) Tape on Full reel
Circuit diagramm
Circuit diagramm 2901141 Molex FFC/FPC connector Total number of pins 12 Contact spacing: 1 mm 522071233 1 pc(s) Tape on Full reel
Description
Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Top Contact, 2.70mm Height, 12 Circuits, Tin-Silver-Bismuth Plating
