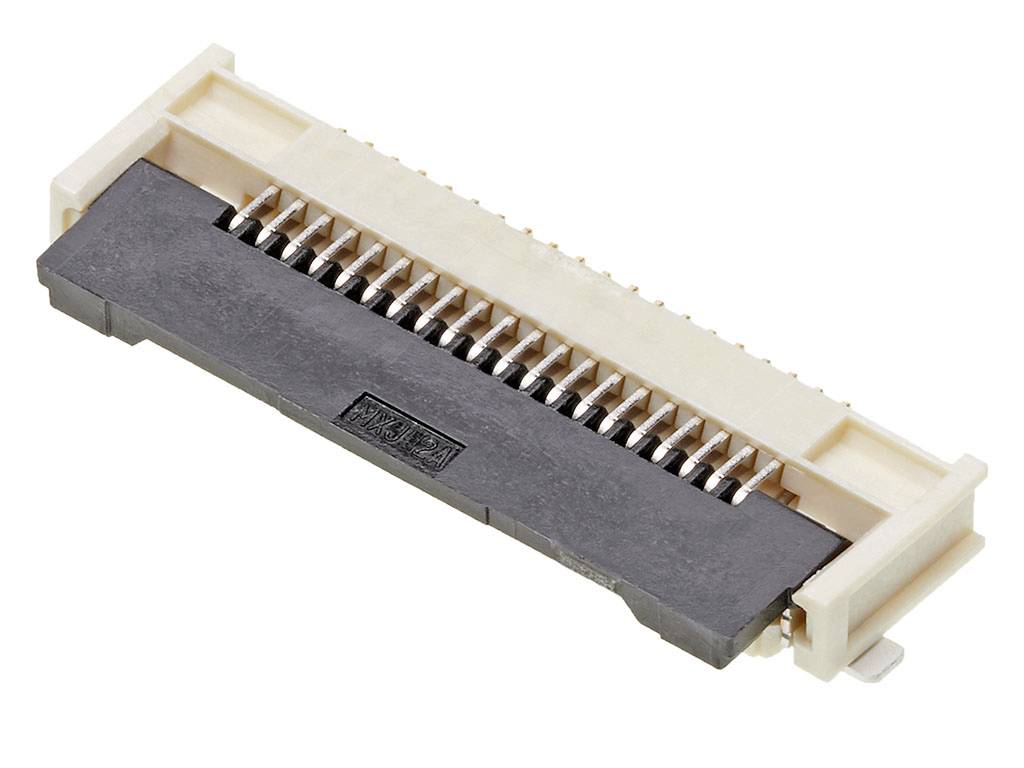

Molex FFC/FPC connector Total number of pins 20 Contact spacing: 0.5 mm 5051102091 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
FFC/FPC connector
No. of rows
1
CS
0.5 mm
Total number of pins
20
Packaging type
Tape on Full reel
Datasheet (PDF)
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.56 / piece)
€ 0.56
plus VAT.
14-day return policy included
Highlights & Details
Easy-On FFC/FPC connector
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 20
Our service for you
Technical specifications
- Please review the product datasheet for further information.
- Packaging type
Tape on Full reel
- Product type
FFC/FPC connector
- No. of rows
1
- CS
0.5 mm
- Total number of pins
20
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Content
1 pc(s)
- Connection
SMT
- Coating thickness (PCB side)
0.051 µm
- Connector coating thickness
0.051 µm
- Case material
Liquid crystal polymer
- Manufacturer part #
5051102091
- Factory colour
Beige
- Contact material
Phosphorus bronze
- Board contact surface
Gold
- Connector contact surface
Gold
- Nominal voltage
50 V
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
MOL Micro Solutions
Documents & Downloads
Datasheet
Datasheet 2901130 Molex FFC/FPC connector Total number of pins 20 Contact spacing: 0.5 mm 5051102091 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 2901130 Molex FFC/FPC connector Total number of pins 20 Contact spacing: 0.5 mm 5051102091 1 pc(s) Tape on Full reel
Circuit diagramm
Circuit diagramm 2901130 Molex FFC/FPC connector Total number of pins 20 Contact spacing: 0.5 mm 5051102091 1 pc(s) Tape on Full reel
Description
Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 20 Circuits, Gold over Nickel Plating
