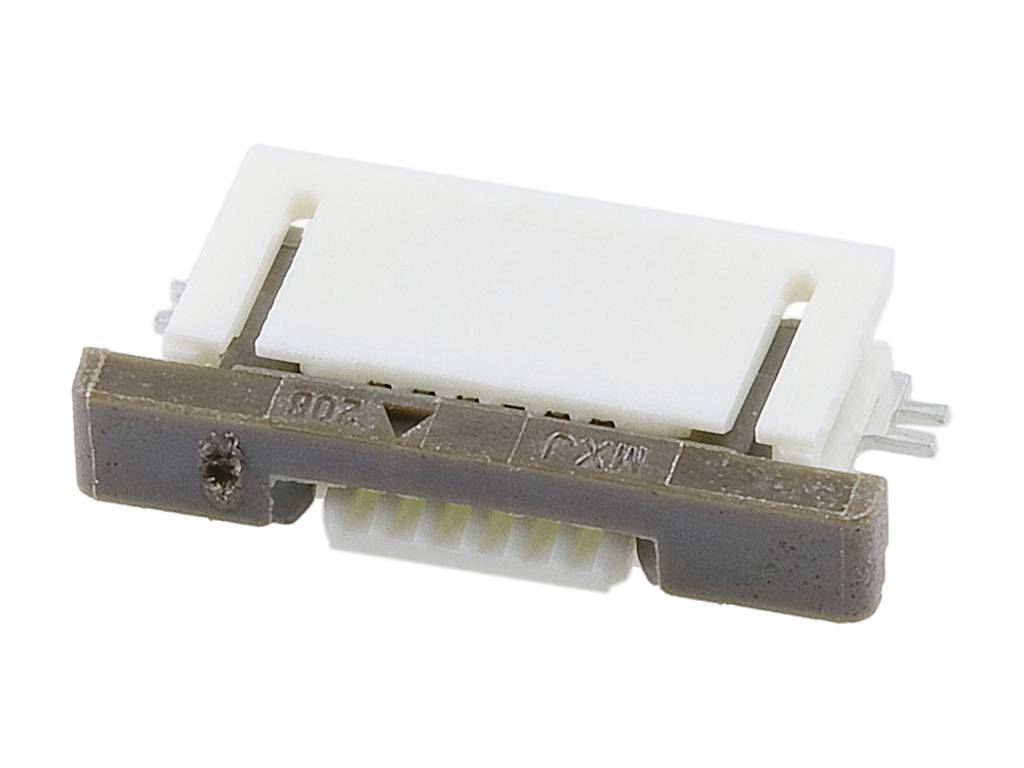

Molex FFC/FPC connector Total number of pins 6 Contact spacing: 0.5 mm 527460671 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
FFC/FPC connector
Connector type
right angle
No. of rows
1
CS
0.5 mm
Total number of pins
6
Datasheet (PDF)
Number
Minimum order quantity: 3
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.34 / piece)
€ 1.02
plus VAT.
Highlights & Details
0.5mm FFC/FPC
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 6
Our service for you
Technical specifications
- Please review the product datasheet for further information.
- Packaging type
Tape on Full reel
- Product type
FFC/FPC connector
- Connector type
right angle
- No. of rows
1
- Connector system
wire-to-board
- Features
gold-plated contacts
- CS
0.5 mm
- Pins per row
6
- Total number of pins
6
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Content
1 pc(s)
- Connection
SMT
- Connection angle
90°
- Manufacturer part #
527460671
- Contact material
Phosphorus bronze
- Board contact surface
Gold
- Connector contact surface
Gold
- Nominal voltage
50 V
- Height
2.00 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
MOL Micro Solutions
Documents & Downloads
Datasheet
Datasheet 2901217 Molex FFC/FPC connector Total number of pins 6 Contact spacing: 0.5 mm 527460671 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 2901217 Molex FFC/FPC connector Total number of pins 6 Contact spacing: 0.5 mm 527460671 1 pc(s) Tape on Full reel
Circuit diagramm
Circuit diagramm 2901217 Molex FFC/FPC connector Total number of pins 6 Contact spacing: 0.5 mm 527460671 1 pc(s) Tape on Full reel
Description
Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 6 Circuits, Gold Plating
