Buy Molex Molex MOL DataCom & Specialty cat 3 Mod Jack/Plug 855135014-236 Socket Black 236 pc(s)

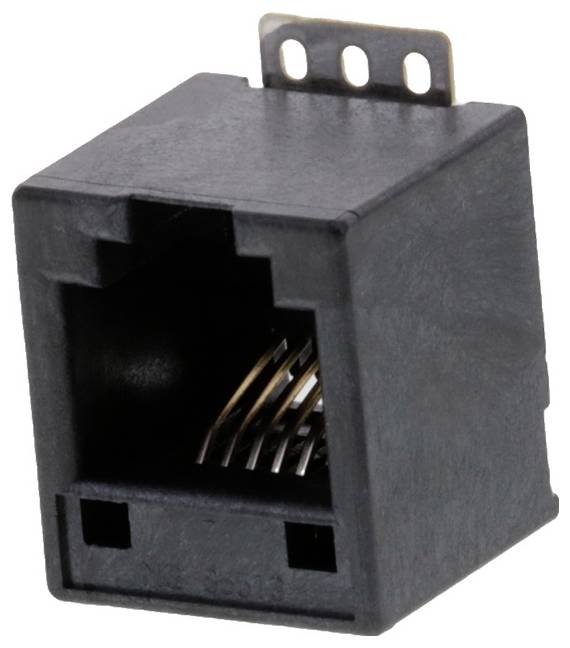

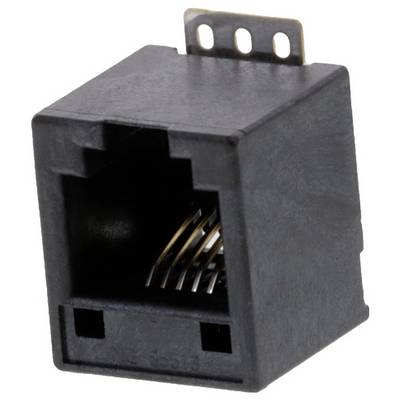

A close-up image of a black RJ45 Ethernet jack with visible metal connectors inside, used for network cable connections.

Image similar

A schematic drawing of a connector, possibly for an Ethernet cable, with a rectangular opening and visible cable contacts.

1/2

Image similar

Packaging type

Tape on Full reel

Connector standard

RJ45

Connector type

Socket

Product type

RJ45 socket module

Type

Molex MOL DataCom & Specialty

Datasheet (PDF)

2 Set(s)

Sales and shipping:

Packaging units

Number

Set(s)

Tape on Full reel
Set(s) (Content: )

Total (1 st = € 0.64)

€

Only 2 Set(s) available

Report legal concerns

Highlights & Details

cat 3 Mod Jack/Plug

Modular Jack, Vertical, Top Entry, Surface Mount, 6/6, Low Profile, 13" Reel
This text is machine translated.

Technical specifications

Please review product datasheet for further information.

Packaging type: Tape on Full reel

Type: Molex MOL DataCom & Specialty

Content: 236 pc(s)

Factory colour: Black

Connector standard: RJ45

Height: 12.7 mm

Engineering Part No: 855135014

Engineering Series Name: SH T.E SMT W/SOLDER

Engineering Series No: 85513

No. of ports: 1 x

Connection: SMT

Material: Thermoplastic

Connector type: Socket

Contact material: Copper alloy

RoHS-compliant: Yes

Max. temperature: +85 °C

Min. temperature: -40 °C

Weight: 2.258 g

Product type: RJ45 socket module
