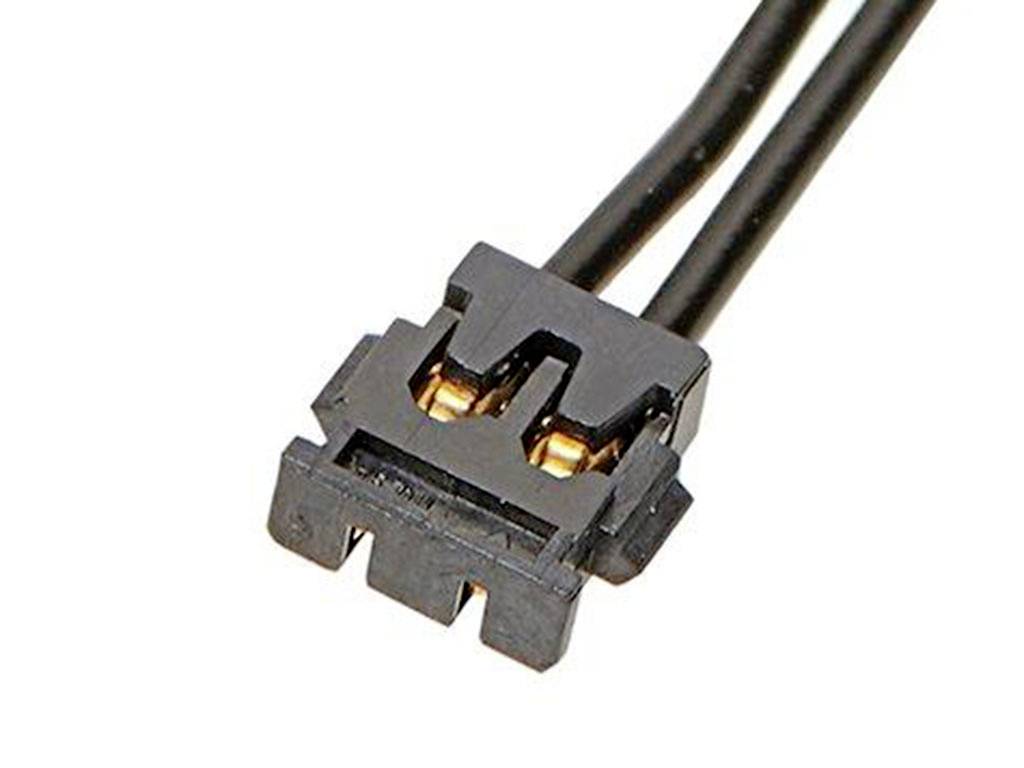

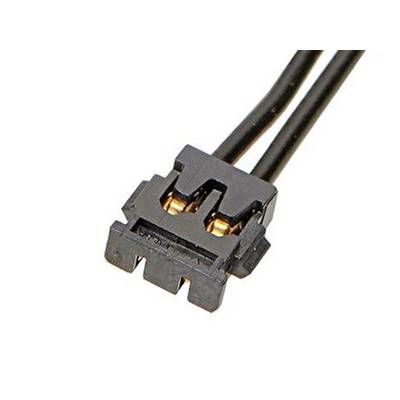

Molex Socket housing cable Total number of pins 2 Contact spacing: 1.2 mm 369200203 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket
No. of rows
1
CS
1.2 mm
Total number of pins
2
Datasheet (PDF)
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
Off-the-Shelf Assy
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 2
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Socket housing cable
- Connector type
Socket
- No. of rows
1
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
1.2 mm
- Total number of pins
2
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Content
1 pc(s)
- AWG max.
28
- Connection
Crimp
Press-in
- Coating thickness (PCB side)
0.1 µm
- Connector coating thickness
0.1 µm
- Case material
Liquid crystal polymer
- Manufacturer part #
369200203
- Factory colour
Black
- Contact material
Copper alloy
- Board contact surface
Gold
- Connector contact surface
Gold
- Nominal voltage
50 V DC/AC
- RoHS-compliant
Yes
- Type
Molex MOL Power & Signal Sol.
- Engineering Series Name
PicoEzmate OTS Discr
- Engineering Series No
36920
Documents & Downloads
Datasheet
Datasheet 2448223 Molex Socket housing cable Total number of pins 2 Contact spacing: 1.2 mm 369200203 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2448223 Molex Socket housing cable Total number of pins 2 Contact spacing: 1.2 mm 369200203 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2448223 Molex Socket housing cable Total number of pins 2 Contact spacing: 1.2 mm 369200203 1 pc(s) Bag
Description
Pico-EZmate-to-Pico-EZmate Off-the-Shelf (OTS) Cable Assembly, 1.20mm Pitch, Single Row, 300.00mm Length, 2 Circuits, Black
