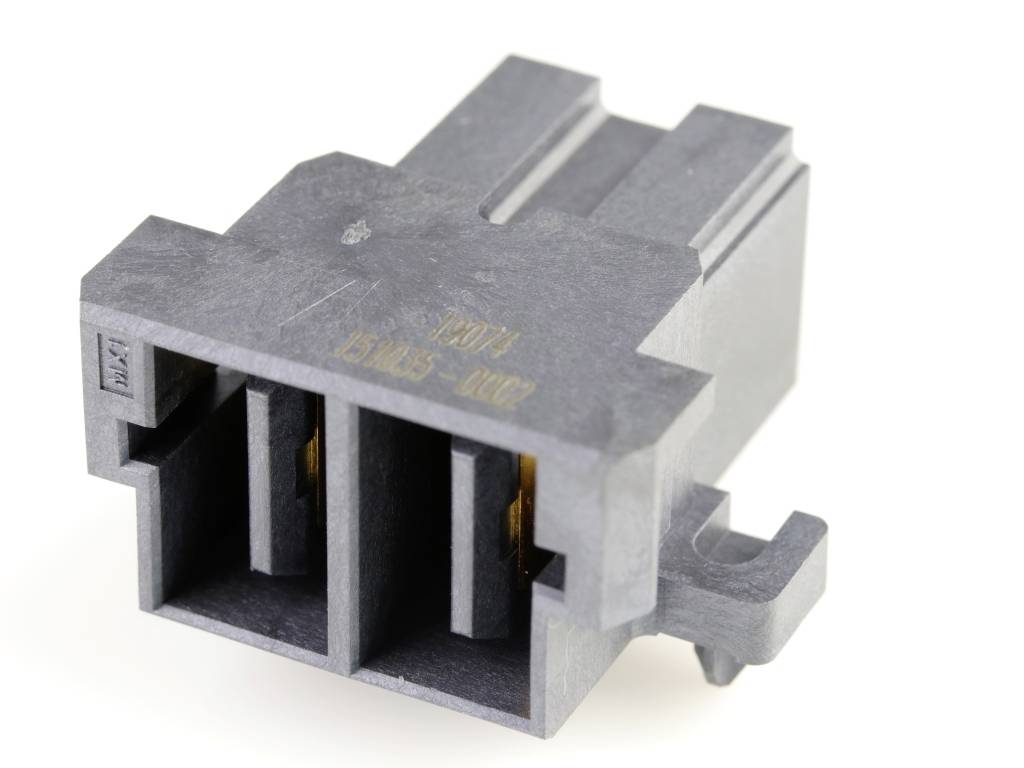

Molex Socket housing cable Total number of pins 2 Contact spacing: 11 mm 1510350002 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Socket housing cable
No. of rows
1
CS
11 mm
Total number of pins
2
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
21
-
€ 15.96
63
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 21
Total (€ 15.96 / piece)
€ 335.16
plus VAT.
14-day return policy included
Highlights & Details
Guardian
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 2
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Socket housing cable
- No. of rows
1
- Features
+ locking mechanism
- CS
11 mm
- Pins per row
2
- Total number of pins
2
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Connector coating thickness
0.076 µm
- Case material
Liquid crystal polymer
- Manufacturer part #
1510350002
- Factory colour
Gold
- Contact material
Copper alloy
- Board contact surface
Tin
- Connector contact surface
Gold
- Nominal voltage
600 V DC/AC
- Length
3.86 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
151035-0002
- Engineering Series Name
RA Plug
- Engineering Series No
151035
Documents & Downloads
Datasheet
Datasheet 2447295 Molex Socket housing cable Total number of pins 2 Contact spacing: 11 mm 1510350002 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2447295 Molex Socket housing cable Total number of pins 2 Contact spacing: 11 mm 1510350002 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2447295 Molex Socket housing cable Total number of pins 2 Contact spacing: 11 mm 1510350002 1 pc(s) Tray
Description
11.00mm Pitch EXTreme Guardian Power Plug, Right-Angle, Gold (Au) Plating, 3.86mm Tail Length, 2 Circuits, with Peg
