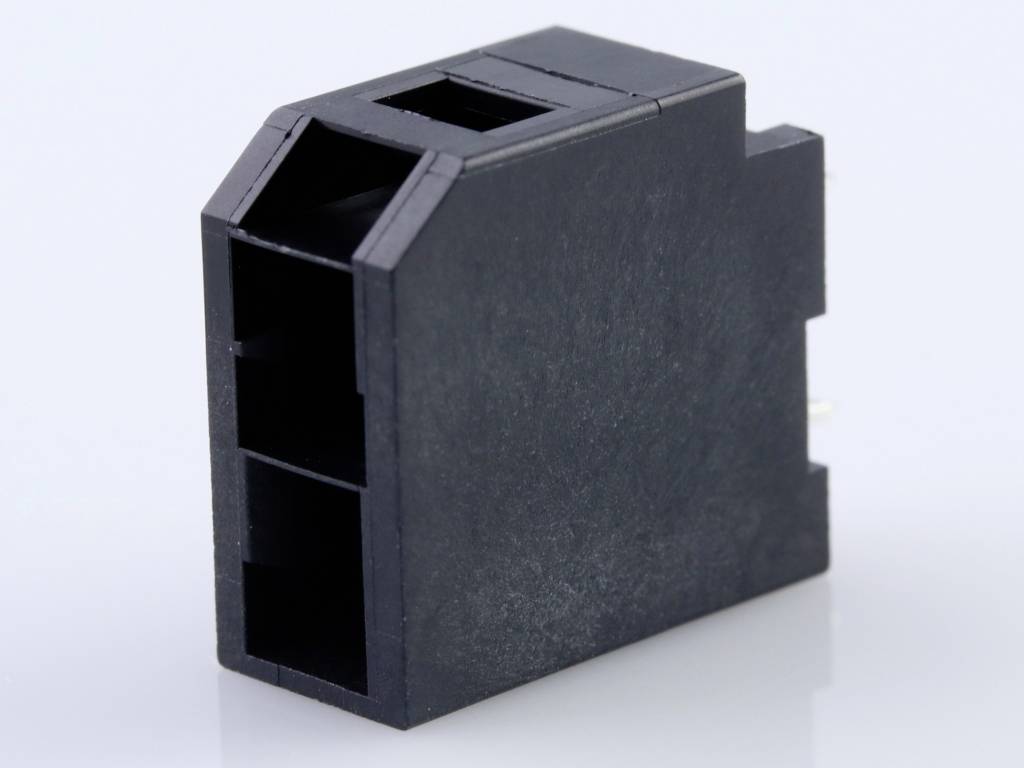

Molex Socket housing cable Total number of pins 2 Contact spacing: 6.5 mm 1510481206 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Socket housing cable
No. of rows
2
CS
6.5 mm
Total number of pins
2
Packaging type
Tray
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
210
-
€ 0.66
300
8% = € 0.05
€ 0.61
500
12% = € 0.08
€ 0.58
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 210
Multiple: 210
Total (€ 0.66 / piece)
€ 0.67
€ 138.60
plus VAT.
14-day return policy included
Highlights & Details
6.5 mm WTB/WTW
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 2
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Tray
- Product type
Socket housing cable
- No. of rows
2
- Connector system
wire-to-board
wire-to-wire
- Features
+ locking mechanism
encodable
- CS
6.5 mm
- Total number of pins
2
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
1.27 µm
- Connector coating thickness
1.27 µm
- Case material
Polyamide
- Manufacturer part #
1510481206
- Factory colour
Black
- Contact material
Copper alloy
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
600 V DC/AC
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
151048-1206
- Engineering Series Name
6.5mm Keying header
- Engineering Series No
151048
Documents & Downloads
Datasheet
Datasheet 2447297 Molex Socket housing cable Total number of pins 2 Contact spacing: 6.5 mm 1510481206 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2447297 Molex Socket housing cable Total number of pins 2 Contact spacing: 6.5 mm 1510481206 1 pc(s) Tray
Circuit diagramm
Circuit diagramm 2447297 Molex Socket housing cable Total number of pins 2 Contact spacing: 6.5 mm 1510481206 1 pc(s) Tray
Description
CP-6.5 Header, 6.50mm Pitch, Dual Row, Vertical, Polarized, Positive Lock, Tray Packaging, Glow-Wire Capable, 2 Circuits, Black
