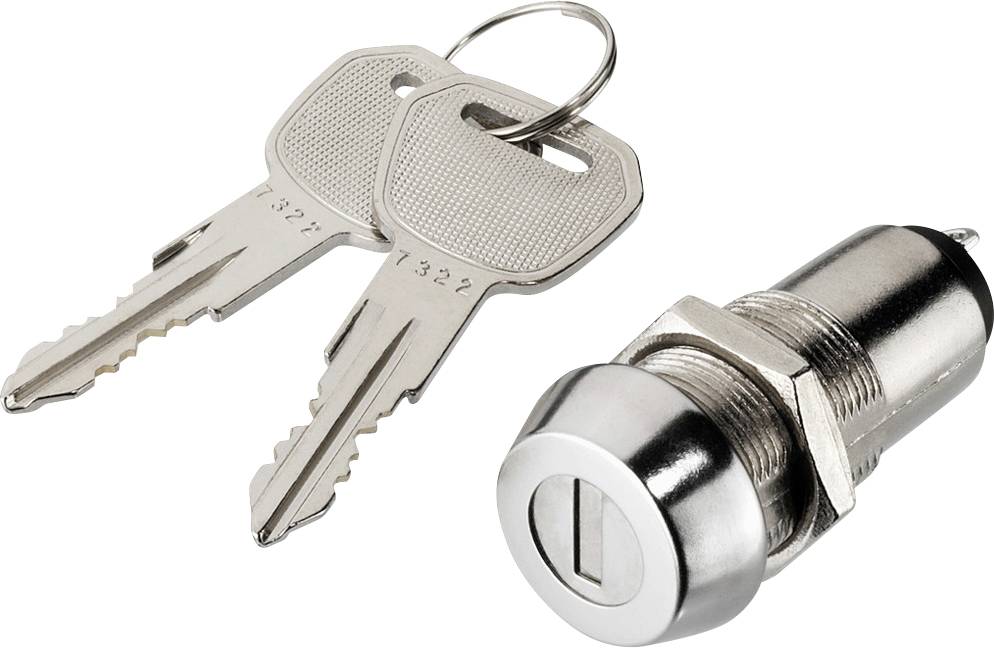

Monacor 0011300 NS-30 Key switch 150 V 3 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Key switch
Switching voltage
150 V
Switching current (max.)
3 A
Contact type
1 maker
Recess diameter
19 mm
Datasheet (PDF)
Technical specifications
- Load carrying capacity " 150 V/3 A
- Net weight: 0.068 kg
- Dimensions: 42 mm
- Weight: 68 g
- Type: Key switch
- Switching functions 1 x ON
- Mounting hole 19 mm
- Product type
Key switch
- Contact type
1 maker
- Switching voltage
150 V
- Switching current (max.)
3 A
- Recess diameter
19 mm
- Type
NS-30
- Content
1 pc(s)
- Weight
68 g
Documents & Downloads
Datasheet
Datasheet 3340664 Monacor 0011300 NS-30 Key switch 150 V 3 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340664 Monacor 0011300 NS-30 Key switch 150 V 3 A 1 pc(s)
Description
Key switches

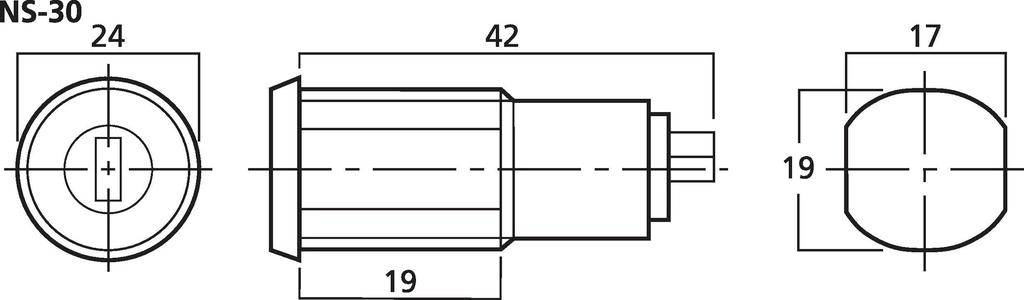

Switch-contact 1 x ON, " 150 V/3 A Length 42 mm Mounting hole Ø 19 mm
This text is machine translated.
Switch-contact 1 x ON, " 150 V/3 A Length 42 mm Mounting hole Ø 19 mm
This text is machine translated.
Features
- Type: Key switch
- Switching functions 1 x ON
- Load carrying capacity " 150 V/3 A
- Installation hole Ø 19 mm
- Dimensions: 42 mm
- Weight: 68 g
