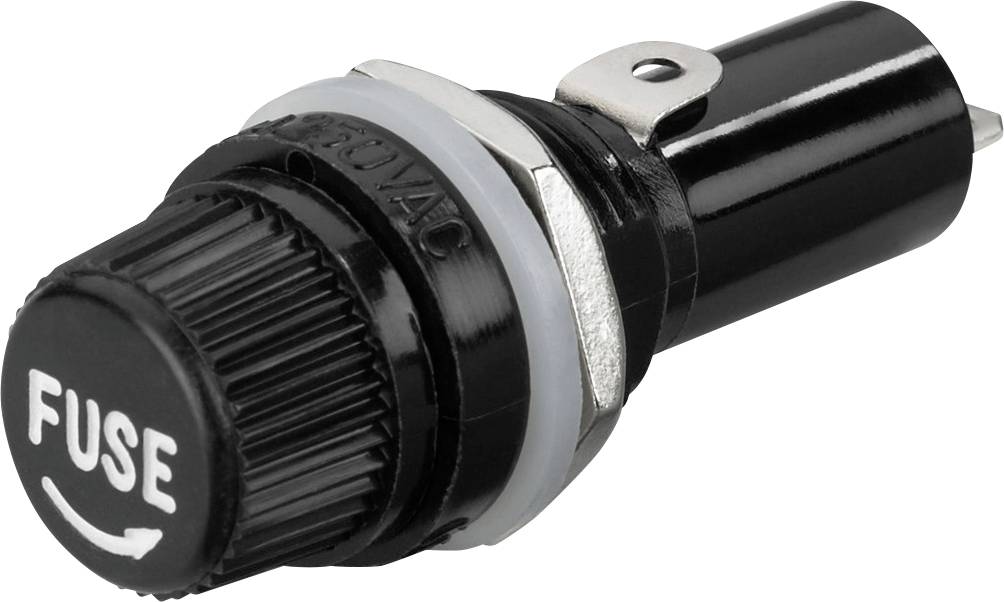

Monacor 0031050 TC-2510L Fuse holder Suitable for Micro fuse 6.3 x 32 mm 10 A 50 V 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse holder
Nominal voltage
50 V
Nominal current - rounded value
10 A
Mounting type
Recess-mount
Suitable for
Micro fuse 6.3 x 32 mm
Datasheet (PDF)
Technical specifications
- Net weight: 0.012 kg
- Dimensions: 15 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 12 g
- Gross weight: 0.012 kg
- Type: Fuse holder
- Suitable for: America./jap. Fine-wire fuses (6.3 x 32 mm)
- TYPE DC 10 A/ > 50 V.
- Mounting dimensions 42 mm
- Product type
Fuse holder
- Nominal voltage
50 V
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Factory colour
Black
- Mounting type
Recess-mount
- Suitable for
Micro fuse 6.3 x 32 mm
- Weight
12 g
- Min. temperature
0 °C
- Max. temperature
40 °C
- Length
42 mm
- (Ø)
15 mm
- Content
1 pc(s)

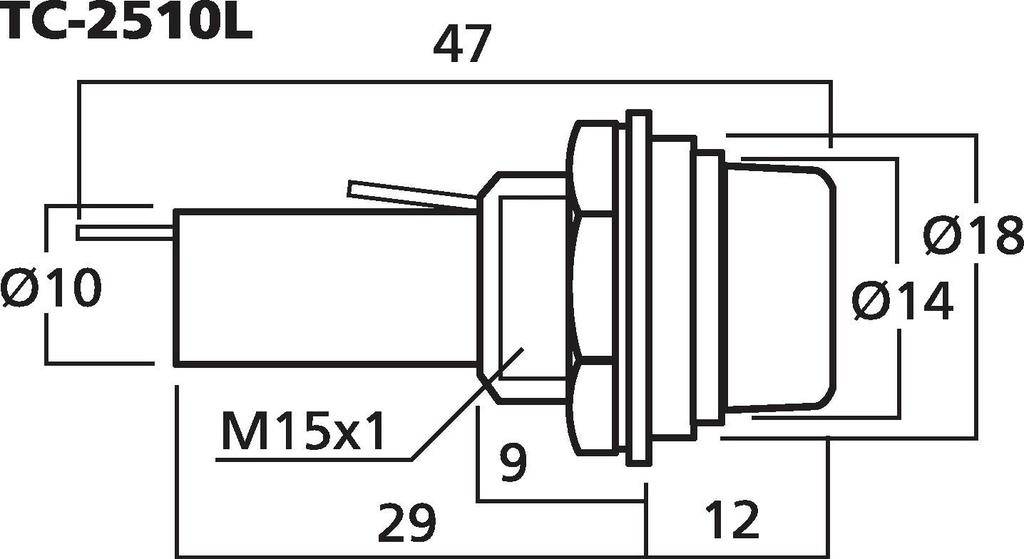

- Dim
(Ø x L) 15 mm x 42 mm
- Type
TC-2510L
Documents & Downloads
Datasheet
Datasheet 3340675 Monacor 0031050 TC-2510L Fuse holder Suitable for Micro fuse 6.3 x 32 mm 10 A 50 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3340675 Monacor 0031050 TC-2510L Fuse holder Suitable for Micro fuse 6.3 x 32 mm 10 A 50 V 1 pc(s)
Description
Fuse holders
For america./jap. Micro fuses (6.3 x 32 mm) Ø 15 mm mounting length 42 mm DC 10 A/ > 50 V
This text is machine translated.
For america./jap. Micro fuses (6.3 x 32 mm) Ø 15 mm mounting length 42 mm DC 10 A/ > 50 V
This text is machine translated.
Features
- Type: Fuse holder
- TYPE DC 10 A/ > 50 V.
- Colour, black
- Suitable for: America./jap. Fine-wire fuses (6.3 x 32 mm)
- Ass. Operating temperature 0-40 °C
- Dimensions: Ø 15 mm
- Mounting dimensions 42 mm
- Weight: 12 g
- Packing: 1
- Packaging dimensions (W x H x L) 0.02 x 0.02 x 0.055 m
- Gross weight: 0.012 kg
- Net weight: 0.012 kg
