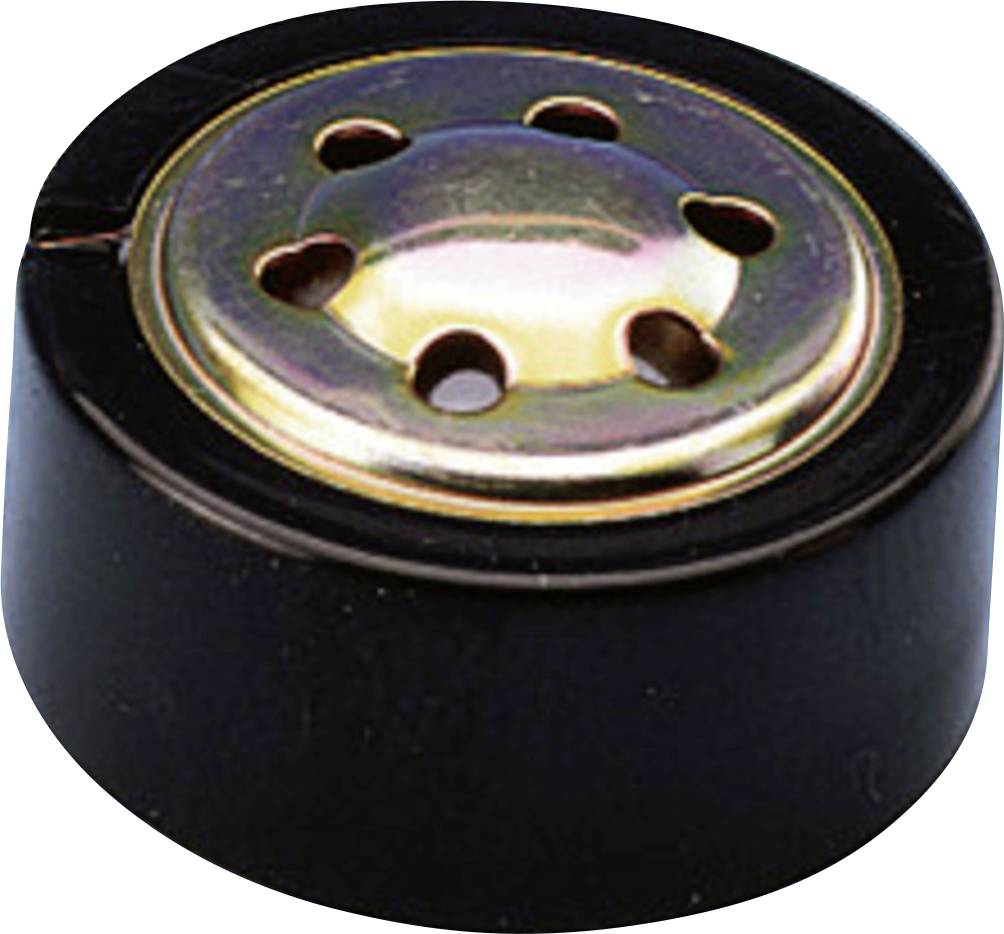

Monacor 0231210 Microphone capsule Frequency range=100 Hz - 10000 Hz
EAN:
Part number:
Item no:
Product type
Microphone capsule
Dim
(Ø x H) 23 mm x 11.5 mm
Min. frequency
100 Hz
Max. frequency
10000 Hz
Impedance
200 Ω
Datasheet (PDF)
Technical specifications
- Net weight: 0.014 kg
- Frequency range 100-10000 Hz
- Dimensions 23 x 11.5 mm
- Ass. Operating temperature 0-40 °C
- Weight: 14 g
- Characteristic: Ball
- Sensitivity 2.5 mV/Pa
- Output impedance 200 Ω
- Product type
Microphone capsule
- Dim
(Ø x H) 23 mm x 11.5 mm
- Min. frequency
100 Hz
- Max. frequency
10000 Hz
- Impedance
200 Ω
- Height
11.5 mm
- Frequency range
100 Hz - 10000 Hz
- Content
1 pc(s)
- (Ø)
23 mm

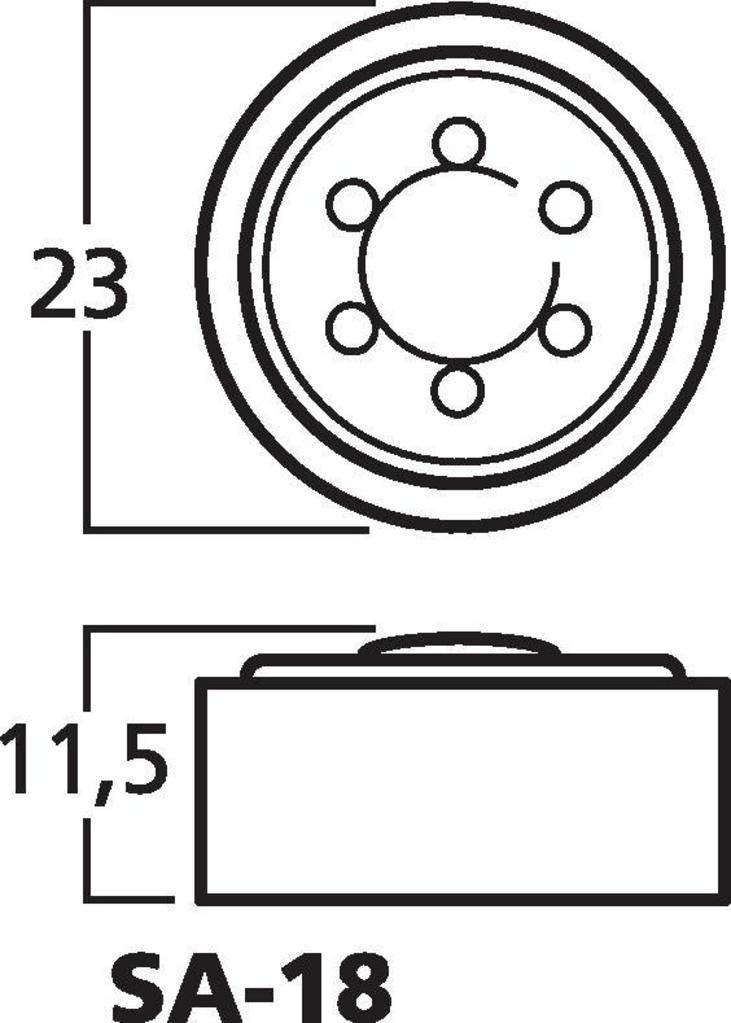

- Type
SA-18
Documents & Downloads
Datasheet
Datasheet 3340724 Monacor 0231210 Microphone capsule Frequency range=100 Hz - 10000 Hz
User & Safety Instructions
User & Safety Instructions 3340724 Monacor 0231210 Microphone capsule Frequency range=100 Hz - 10000 Hz
Description
Dynamic microphone capsule
Omnidirectional characteristic with protective membrane.
Ø 23 mm x 11.5 mm
This text is machine translated.
Omnidirectional characteristic with protective membrane.
Ø 23 mm x 11.5 mm
This text is machine translated.
Features
- Characteristic: Ball
- Frequency range 100-10000 Hz
- Sensitivity 2.5 mV/Pa
- Output impedance 200 Ω
- Ass. Operating temperature 0-40 °C
- Dimensions: Ø 23 mm x 11.5 mm
- Weight: 14 g
