Monacor 0233660 Microphone capsule 1.5 - 10 V Frequency range=50 Hz - 16000 Hz
EAN:
Part number:
Item no:
Product type
Microphone capsule
Max. operating voltage
10 V
Dim

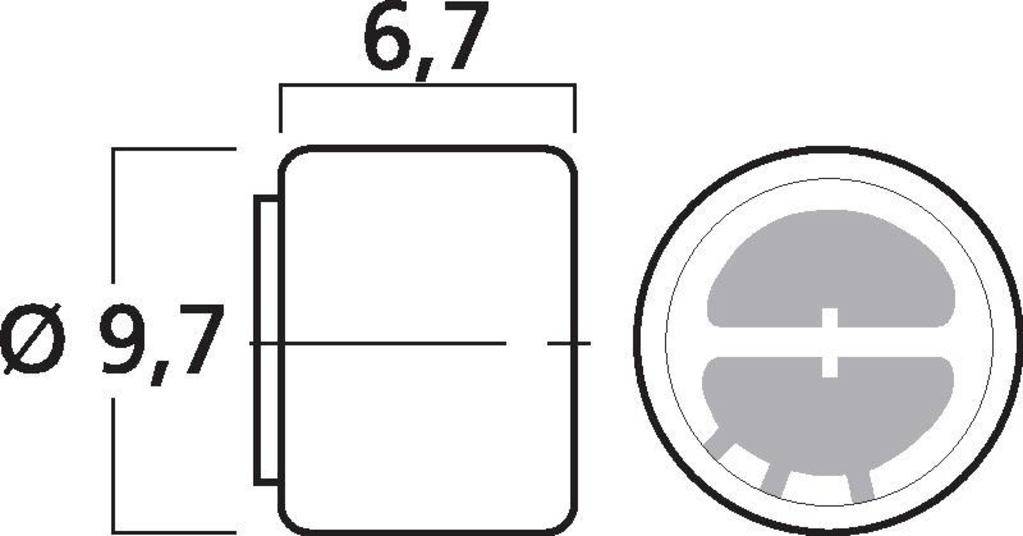

(Ø x H) 9.7 mm x 6.7 mm
Min. operating voltage
1.5 V
Min. frequency
50 Hz
Datasheet (PDF)
Technical specifications
- Net weight: 0.001 kg
- Frequency range 50-16000 Hz
- Dimensions 9.7 x 6.7 mm
- Ass. Operating temperature 0-40 °C
- Weight: 1 g
- Power supply DC 1,5-10 V/0.5 mA
- Characteristic: Ball
- Sensitivity 7.9 mV/Pa
- Output impedance 2.2 kΩ
- Signal-to-noise ratio > 58 dB
- Coupler capacitor 0.1-4.7 µF
- Product type
Microphone capsule
- Dim
(Ø x H) 9.7 mm x 6.7 mm
- Min. operating voltage
1.5 V
- Max. operating voltage
10 V
- Min. frequency
50 Hz
- Max. frequency
16000 Hz
- Impedance
2.2 kΩ
- Height
6.7 mm
- Operating voltage
1.5 - 10 V
- Frequency range
50 Hz - 16000 Hz
- Content
1 pc(s)
- (Ø)
9.7 mm
- Type
MCE-400
Documents & Downloads
Datasheet
Datasheet 3340726 Monacor 0233660 Microphone capsule 1.5 - 10 V Frequency range=50 Hz - 16000 Hz
User & Safety Instructions
User & Safety Instructions 3340726 Monacor 0233660 Microphone capsule 1.5 - 10 V Frequency range=50 Hz - 16000 Hz
Description

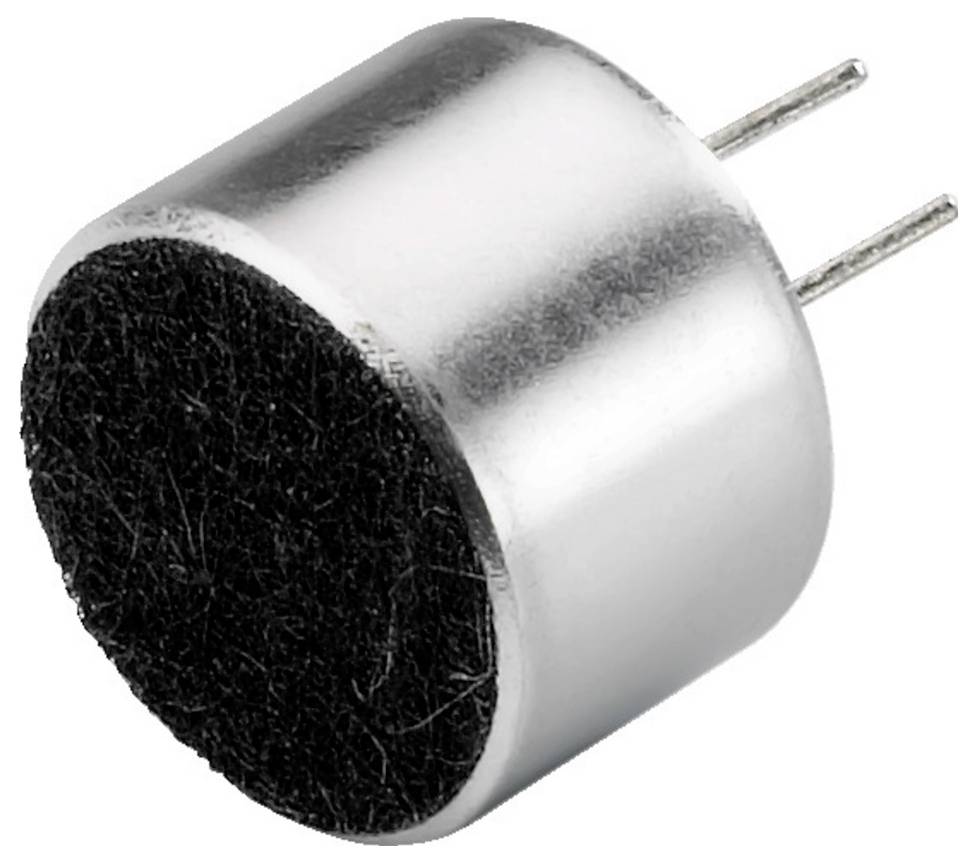

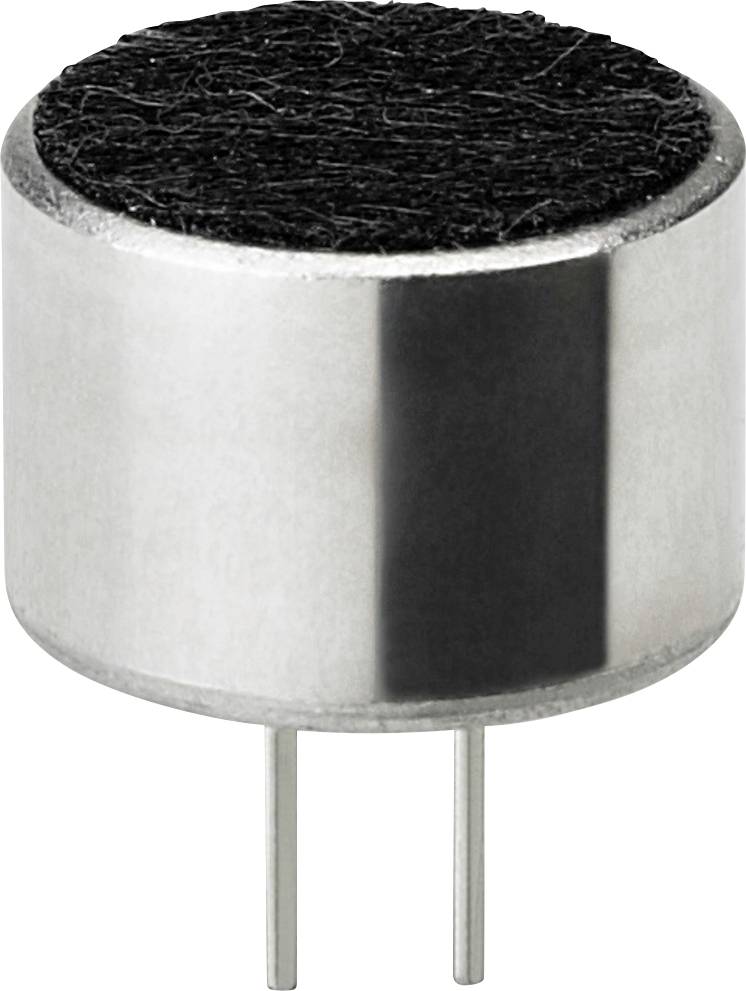

Quality Electret microphone capsule
(Spherical characteristic), for PCB mounting, RM 2.5.
This text is machine translated.
(Spherical characteristic), for PCB mounting, RM 2.5.
This text is machine translated.
Features
- Characteristic: Ball
- Frequency range 50-16000 Hz
- Sensitivity 7.9 mV/Pa
- Output impedance 2.2 kΩ
- Signal-to-noise ratio > 58 dB
- Coupler capacitor 0.1-4.7 µF
- Ass. Operating temperature 0-40 °C
- Power supply DC 1,5-10 V/0.5 mA
- Dimensions: Ø 9.7 mm x 6.7 mm
- Weight: 1 g
