Monacor 0233670 Microphone capsule 1.5 - 10 V Frequency range=50 Hz - 16000 Hz
EAN:
Part number:
Item no:
Product type
Microphone capsule
Max. operating voltage
10 V
Min. operating voltage
1.5 V
Min. frequency
50 Hz
Max. frequency
16000 Hz
Datasheet (PDF)
Technical specifications
- Net weight: 0.002 kg
- Frequency range 50-16000 Hz
- Dimensions 9.7 x 6.7 mm
- Ass. Operating temperature 0-40 °C
- Weight: 2 g
- Power supply DC 1,5-10 V/0.5 mA
- Characteristic: Ball
- Sensitivity 7.9 mV/Pa
- Output impedance 2.2 kΩ
- Signal-to-noise ratio > 58 dB
- Coupler capacitor 0.1-4.7 µF
- Product type
Microphone capsule
- Min. operating voltage
1.5 V
- Max. operating voltage
10 V
- Min. frequency
50 Hz
- Max. frequency
16000 Hz
- Impedance
2.2 kΩ
- Operating voltage
1.5 - 10 V
- Frequency range
50 Hz - 16000 Hz
- Content
1 pc(s)
- Type
MCE-401
Documents & Downloads
Datasheet
Datasheet 3340727 Monacor 0233670 Microphone capsule 1.5 - 10 V Frequency range=50 Hz - 16000 Hz
User & Safety Instructions
User & Safety Instructions 3340727 Monacor 0233670 Microphone capsule 1.5 - 10 V Frequency range=50 Hz - 16000 Hz
Description

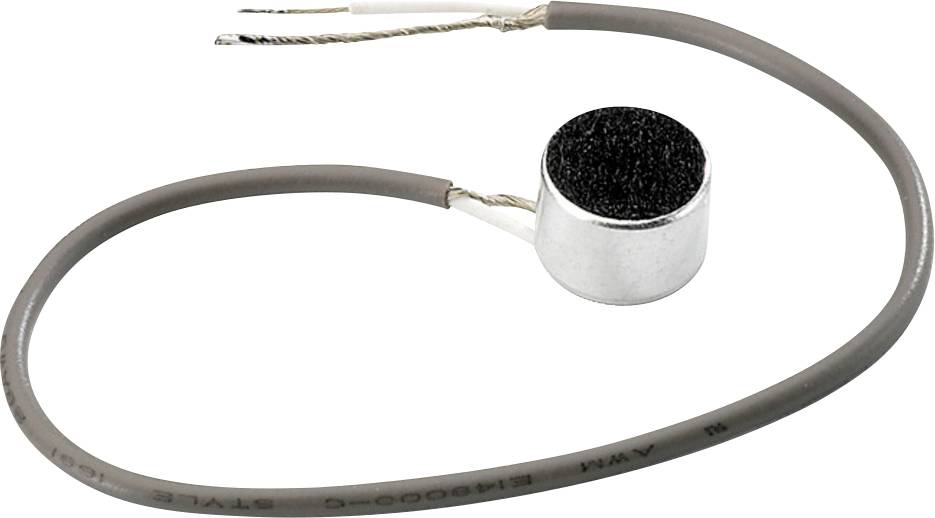

Quality Electret microphone capsule
(Spherical characteristic), with 150 mm long, shielded cable and insulated, tin-plated ends.
This text is machine translated.
(Spherical characteristic), with 150 mm long, shielded cable and insulated, tin-plated ends.
This text is machine translated.
Features
- Characteristic: Ball
- Frequency range 50-16000 Hz
- Sensitivity 7.9 mV/Pa
- Output impedance 2.2 kΩ
- Signal-to-noise ratio > 58 dB
- Coupler capacitor 0.1-4.7 µF
- Ass. Operating temperature 0-40 °C
- Power supply DC 1,5-10 V/0.5 mA

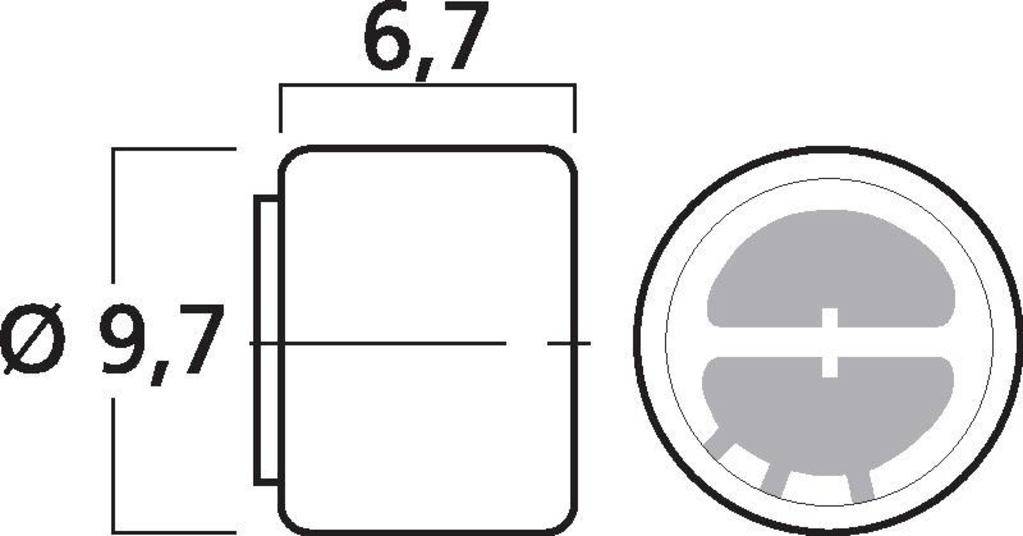

- Dimensions: Ø 9.7 mm x 6.7 mm
- Weight: 2 g
