Buy Monacor 0273030 SMPSU 600 mA Adjustable voltage output

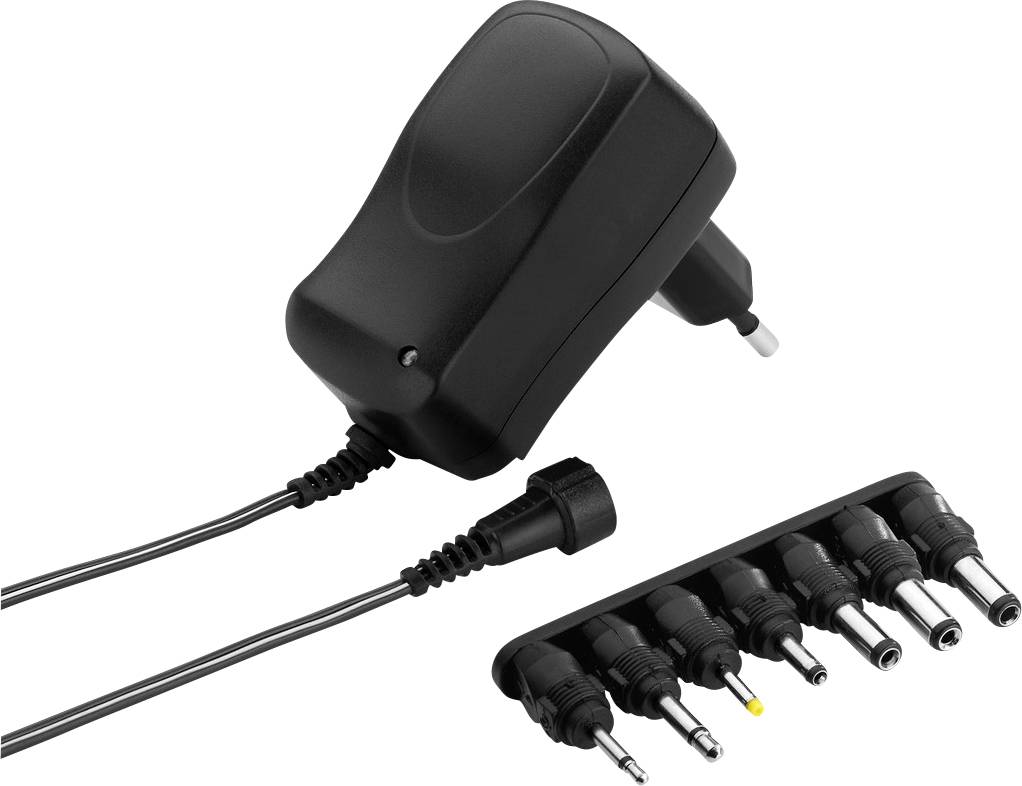

A black power adapter with multiple interchangeable plugs. This enables connection with various devices.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 0.099 kg
Dimensions 38.7 x 68.4 x 68.4 mm
Ass. Operating temperature 0-40 °C
Weight: 99 g
Connections: Plug-in adapter
Input voltage " 100-240 V/50-60 Hz/155 mA
Output voltage DC 3/4.5/5/6/7.5/9/12 V
Output current: 600 mA
Polarity selection: Yes
Output voltage selectable: Yes
Cable length: 1,8 m
Short-circuit protection: Yes
Overload protection: Yes
Overheating protection: Yes
Other: ECO

Product type: SMPSU

Max. output current: 600 mA

Output current (max.) - rounded: 600 mA

PSU features: Adjustable voltage output

Connection: 5.5/2.1 coaxial connector

Input voltage (max.): 240 V AC

Min. input voltage: 100 V AC

Weight: 99 g

Cable length: 1.8 m

Type: PSS-600E

Documents & Downloads

Datasheet

Datasheet 3340922 Monacor 0273030 SMPSU 600 mA Adjustable voltage output

User & Safety Instructions

User & Safety Instructions 3340922 Monacor 0273030 SMPSU 600 mA Adjustable voltage output

Description

Switched-mode power supply, 0.6 A,
With high energy efficiency, meets the EU eco-design directive
Energy saving by low power consumption in idle state < 0.1 W Switchable output voltage Protection against short circuit, overload and overheating LED display 1.8 m connecting cable Polarity selection by changing the enclosed adapter 7 Plug adapter: Jack plug: 2.5 mm, 3.5 mm, hollow plug: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

This text is machine translated.
