Monacor 0273130 SMPSU 1 A Adjustable voltage output
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.135 kg
- Dimensions 43.8 x 72.7 x 76.9 mm
- Ass. Operating temperature 0-40 °C
- Weight 135 g
- Connections: Plug-in adapter
- Input voltage " 100-240 V/50-60 Hz/250 mA
- Output voltage DC 3/4.5/5/6/7.5/9/12 V
- Output current: 1 A
- Polarity selection: Yes
- Output voltage selectable: Yes
- Cable length: 1,8 m
- Short-circuit protection: Yes
- Overload protection: Yes
- Overheating protection: Yes
- Other: ECO
- Product type
SMPSU
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- PSU features
Adjustable voltage output
- Connection
Jack connector
- No. of outputs
1 x
- Input voltage (max.)
240 V AC
- Min. input voltage
100 V AC
- Weight
135 g
- Cable length
1.8 m
- Type
PSS-1000E
Documents & Downloads
Datasheet
Datasheet 3340920 Monacor 0273130 SMPSU 1 A Adjustable voltage output
User & Safety Instructions
User & Safety Instructions 3340920 Monacor 0273130 SMPSU 1 A Adjustable voltage output
Description

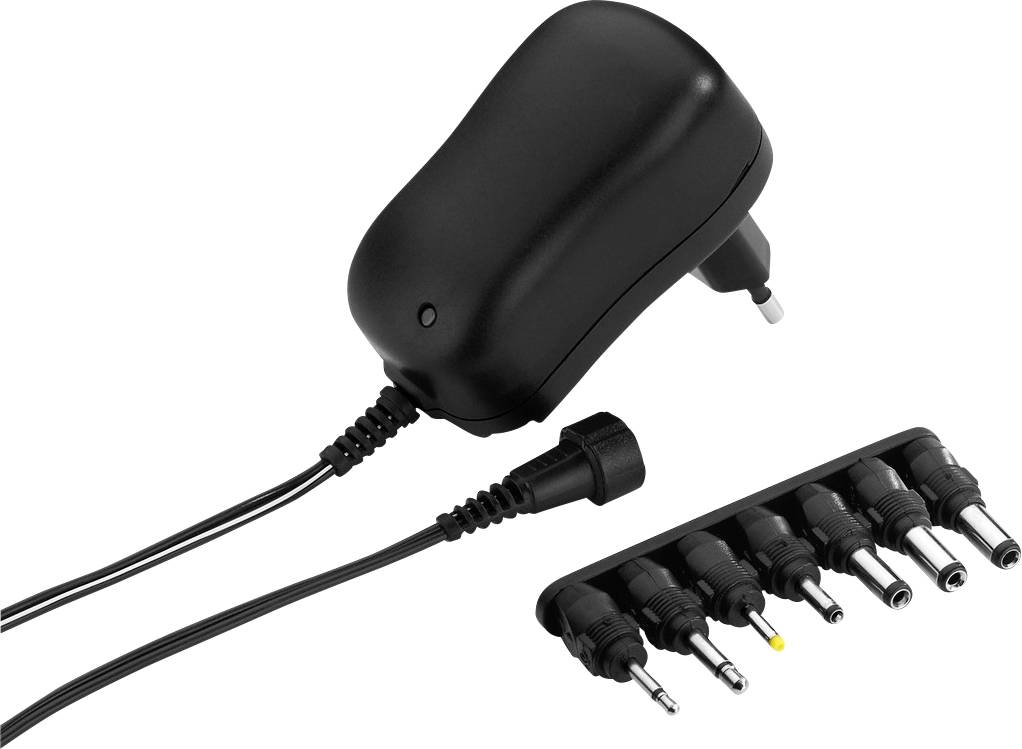

Switched-mode power supply, 1 A,
With high energy efficiency, meets the EU eco-design directive
Energy saving through low power consumption in idle state < 0.1 W Switchable output voltage Small, light design Protection against short circuit, overload and overheating LED-operation display 1.8 m connecting cable Polarity selection by changing the enclosed adapter 7 Plug adapter: Jack plug: 2.5 mm, 3.5 mm, hollow plug: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm
This text is machine translated.
With high energy efficiency, meets the EU eco-design directive
Energy saving through low power consumption in idle state < 0.1 W Switchable output voltage Small, light design Protection against short circuit, overload and overheating LED-operation display 1.8 m connecting cable Polarity selection by changing the enclosed adapter 7 Plug adapter: Jack plug: 2.5 mm, 3.5 mm, hollow plug: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm
This text is machine translated.
Features
- Category: Switched-mode power supply
- Input voltage " 100-240 V/50-60 Hz/;250 mA
- Output voltage DC 3/4.5/5/6/7.5/9/12 V
- Output current: 1 A
- Polarity selection: Yes
- Output voltage selectable: Yes
- Connections: Plug-in adapter
- Cable length: 1,8 m
- Short-circuit protection: Yes
- Overload protection: Yes
- Overheating protection: Yes
- Ass. Operating temperature 0-40 °C
- Dimensions 43.8 x 72.7 x 76.9 mm
- Weight 135 g
- Other: ECO
