Buy Monacor 0273150 SMPSU 3 A 36 VA Surge protection, Adjustable voltage output

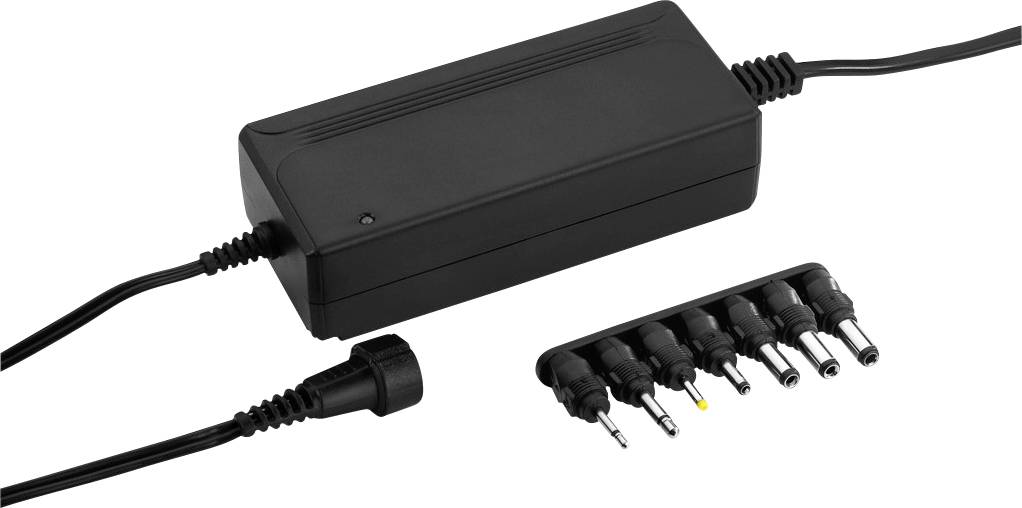

Black power adapter with multiple interchangeable plugs, suitable for various electronic devices.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 0.306 kg
Dimensions 50 x 32 x 115 mm
Ass. Operating temperature 0-40 °C
Weight: 306 g
Connections: Plug-in adapter
Input voltage " 100-240 V/50-60 Hz/800 mA
Output voltage DC 5/6/7.5/9/12/13,5/15 V
Output current 3/3/3/3/3/2.4/2.4 , 36 VA
Polarity selection: Yes
Output voltage selectable: Yes
Cable length: 1,8 m
Short-circuit protection: Yes
Overload protection: Yes
Overheating protection: Yes

Product type: SMPSU

Max. output current: 3 A

Output current (max.) - rounded: 3 A

PSU features: Surge protection
Adjustable voltage output

: 36 VA

Dim: (L x W x H) 50 x 32 x 115 mm

Connection: 5.5/2.1 coaxial connector

Input voltage (max.): 240 V AC

Min. input voltage: 100 V AC

Weight: 306 g

Cable length: 1.8 m

Width: 32 mm

Height: 115 mm

Length: 50 mm

Type: PSS-3000E

Documents & Downloads

Datasheet

Datasheet 3340926 Monacor 0273150 SMPSU 3 A 36 VA Surge protection, Adjustable voltage output

User & Safety Instructions

User & Safety Instructions 3340926 Monacor 0273150 SMPSU 3 A 36 VA Surge protection, Adjustable voltage output

Description

Switched-mode power supply, max. 3 A,
With high energy efficiency, meets the EU eco-design directive
Power saving by low power consumption in idle state < 0.1 W Switchable output voltage Protection against short circuit, overload and overheating LED operating display 1.8 m connecting cable Polarity selection by changing the enclosed adapter 7 Plug adapter: Jack plug: 2.5 mm, 3.5 mm, hollow plug: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

This text is machine translated.
