Buy Monacor 0273220 SMPSU 12 V DC 3 A Surge protection

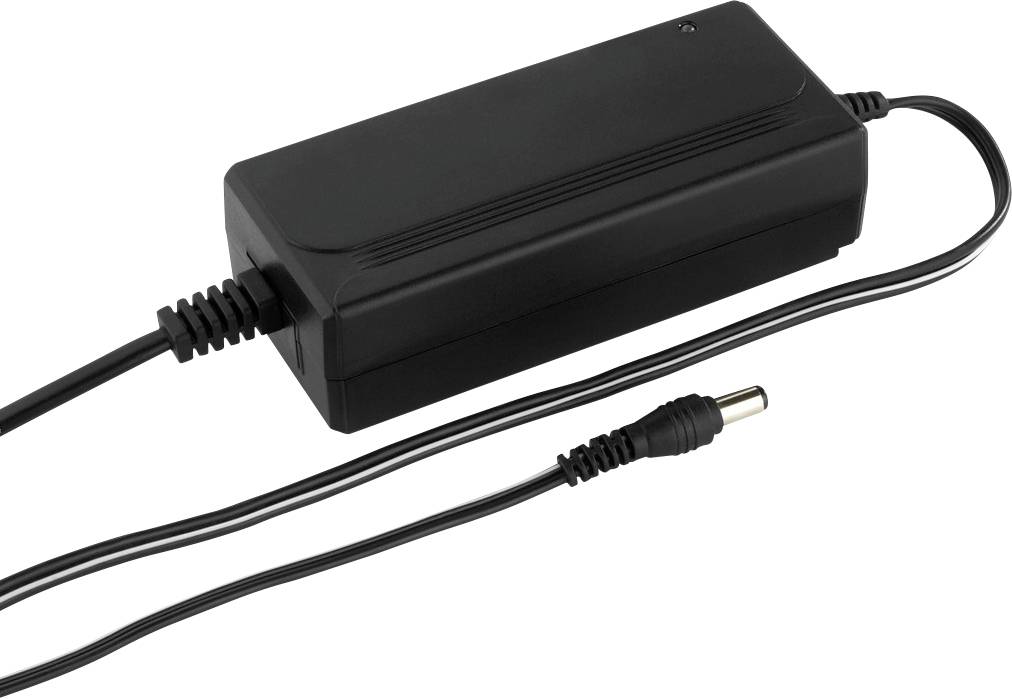

A black power supply with a rectangular housing and a long cable terminating in a round plug.

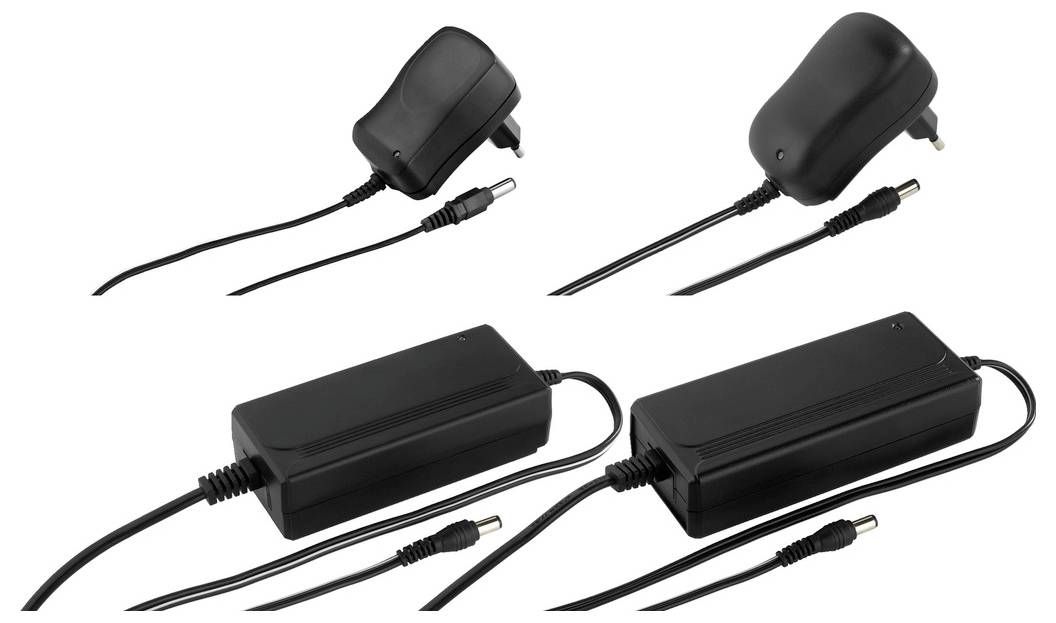

Four black power adapters with plugs, two at the top and two at the bottom. Different sizes for electronic devices, cables connected.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 0.285 kg
Dimensions 50 x 32 x 116 mm
Ass. Operating temperature 0-40 °C
Weight 285 g
Connections: Low-voltage plug 5.5/2.1 mm
Input voltage " 100-240 V/50-60 Hz/800 mA
Output voltage DC 12 V
Output current: 3 A
Cable length: 1,8 m
Short-circuit protection: Yes
Overload protection: Yes
Overheating protection: Yes
Position: C

Product type: SMPSU

Max. output current: 3 A

Output voltage: 12 V DC

Output current (max.) - rounded: 3 A

PSU features: Surge protection

Connection: 5.5/2.1 coaxial connector

Input voltage (max.): 240 V AC

Min. input voltage: 100 V AC

Weight: 285 g

Cable length: 1.8 m

Type: PSS-1230DC

Documents & Downloads

Datasheet

Datasheet 3340925 Monacor 0273220 SMPSU 12 V DC 3 A Surge protection

User & Safety Instructions

User & Safety Instructions 3340925 Monacor 0273220 SMPSU 12 V DC 3 A Surge protection

Description

SWITCHED-MODE POWER SUPPLY, DC 12 V/3 A,
With high energy efficiency, meets the EU eco-design directive
Energy saving through low power consumption in idle state < 0.3 W Protection against short circuit, overload and overheating LED operating display 1.8 m connecting cable Low-voltage plug 5.5/2.1 mm, Plus pole at the inner contact
