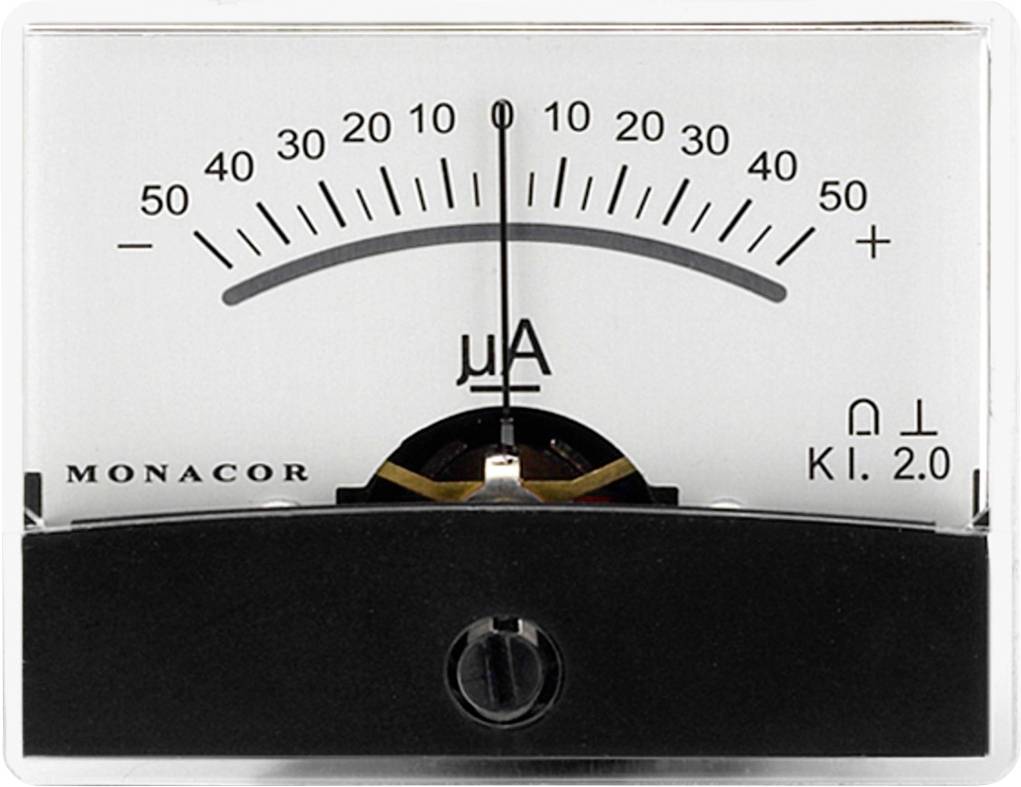

Monacor 0290450 PM-2/+-50UA PM-2/+-50UA moving coil instrument panel, 0.05 mA Moving coil
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PM-2/+-50UA moving coil instrument panel, 0.05 mA
Technical specifications
- Net weight: 0.044 kg
- Installation opening: 37.5 mm
- Installation depth: 23 mm
- Measuring range ± 0.05 mA
- Internal resistance 1.9 kΩ
- Display dimensions 60.3 x 46.3 mm
- Product type
Analogue rack-mount meter
- Reading type
Amperage
- Reading range (min.)
-0.05 mA
- Reading range (max.)
0.05 mA
- Recess width
37.5 mm
- Instrument type
Moving coil
- Recess height
23 mm
- Type
PM-2/+-50UA
- Recess diameter
37.5 mm
- Recess depth
23 mm
- Weight
0.044 kg
- Content
1 pc(s)
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3340928 Monacor 0290450 PM-2/+-50UA PM-2/+-50UA moving coil instrument panel, 0.05 mA Moving coil
User & Safety Instructions
User & Safety Instructions 3340928 Monacor 0290450 PM-2/+-50UA PM-2/+-50UA moving coil instrument panel, 0.05 mA Moving coil
Description
Moving coil instrument
With mirror scale All plastic housing Class 2 zero point correction Pre-wired for lighting Measurement range ± 0.05 mA
This text is machine translated.
With mirror scale All plastic housing Class 2 zero point correction Pre-wired for lighting Measurement range ± 0.05 mA
This text is machine translated.
Features
- Measuring range ± 0.05 mA
- Internal resistance 1.9 kΩ
- Display dimensions 60.3 x 46.3 mm
- Mounting hole dia. 37.5 mm.
- Installation depth: 23 mm
