Monacor 0290560 PM-2/15A PM-2/15A moving coil instrument, 15 A Moving coil
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

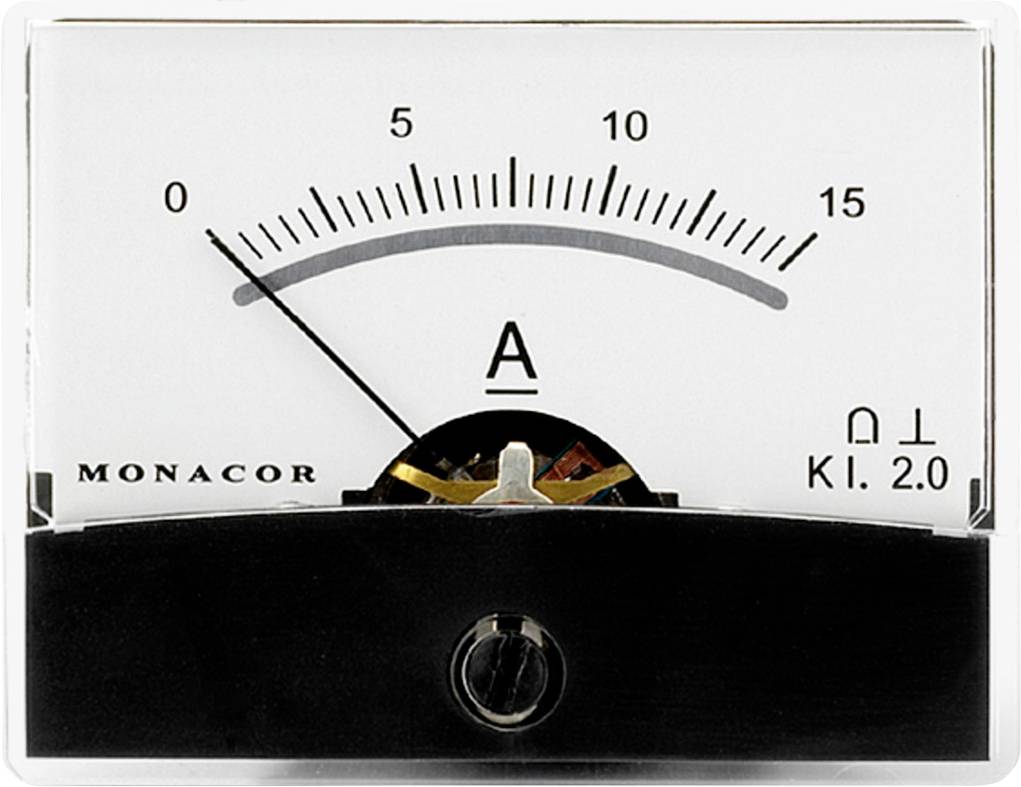

PM-2/15A moving coil instrument, 15 A
Technical specifications
- Net weight: 0.045 kg
- Installation opening: 37.5 mm
- Installation depth: 23 mm
- Measurement range 15 A
- Internal resistance 4 mΩ
- Display dimensions 60.3 x 46.3 mm
- Product type
Analogue rack-mount meter
- Reading type
Amperage
- Reading range (max.)
15 A
- Recess width
37.5 mm
- Instrument type
Moving coil
- Recess height
23 mm
- Type
PM-2/15A
- Recess diameter
37.5 mm
- Recess depth
23 mm
- Weight
0.045 kg
- Content
1 pc(s)
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 3340933 Monacor 0290560 PM-2/15A PM-2/15A moving coil instrument, 15 A Moving coil
User & Safety Instructions
User & Safety Instructions 3340933 Monacor 0290560 PM-2/15A PM-2/15A moving coil instrument, 15 A Moving coil
Description
Moving coil instrument
With mirror scale fully plastic housing Class 2 zero-point correction Pre-wired for lighting Measurement range 15 A
This text is machine translated.
With mirror scale fully plastic housing Class 2 zero-point correction Pre-wired for lighting Measurement range 15 A
This text is machine translated.
Features
- Measurement range 15 A
- Internal resistance 4 mΩ
- Display dimensions 60.3 x 46.3 mm
- Mounting hole dia. 37.5 mm.
- Installation depth: 23 mm
