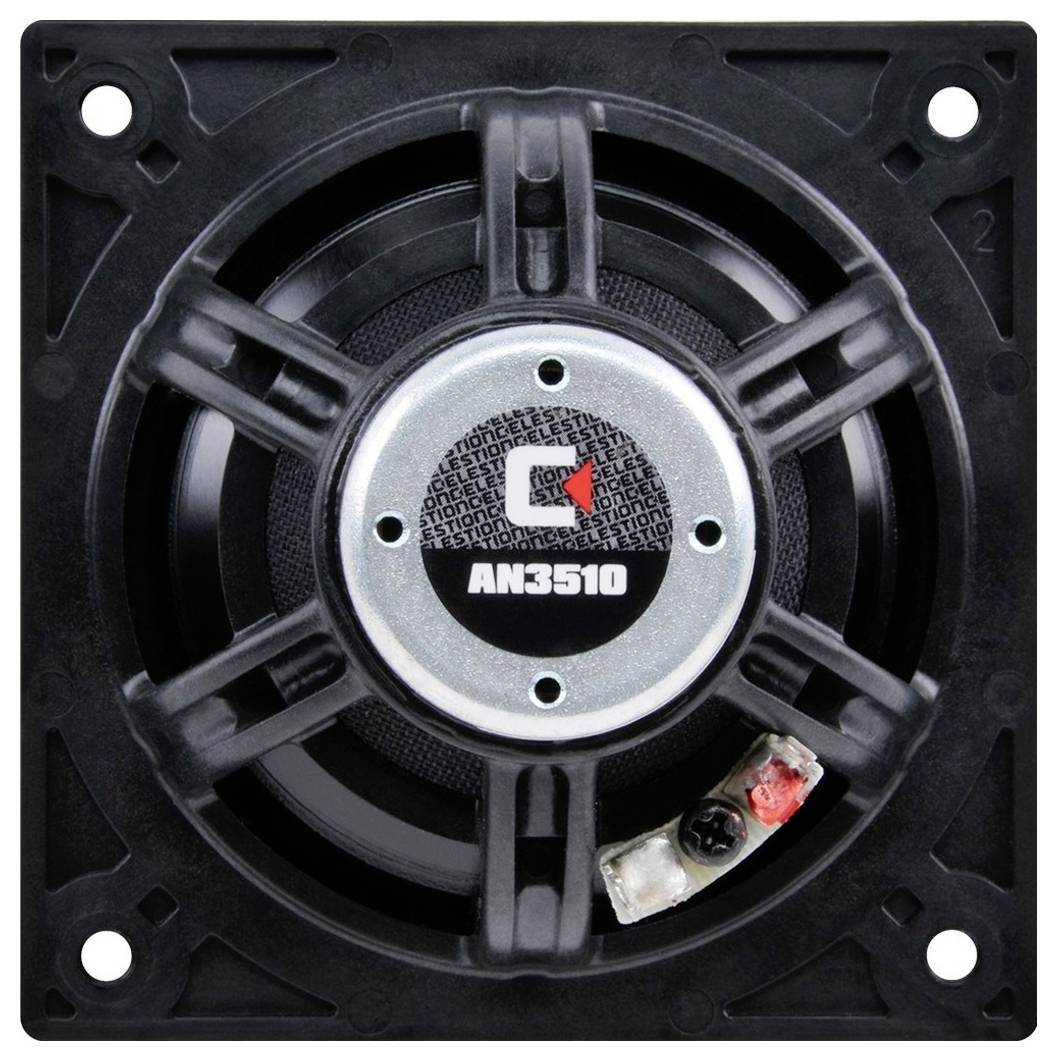

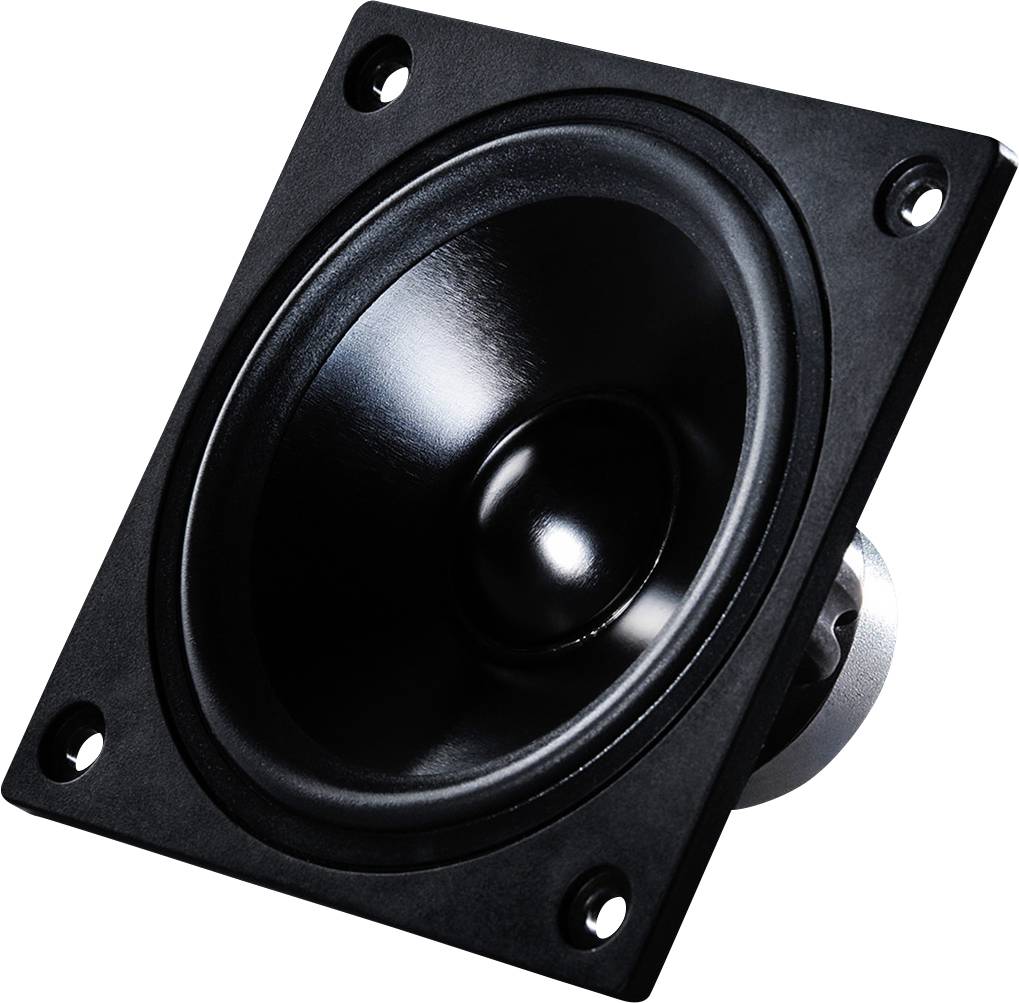

Monacor AN3510/8 3.5 inch Wideband speaker 35 W 8 Ω Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.15 kg
- Transmission technology: Cable

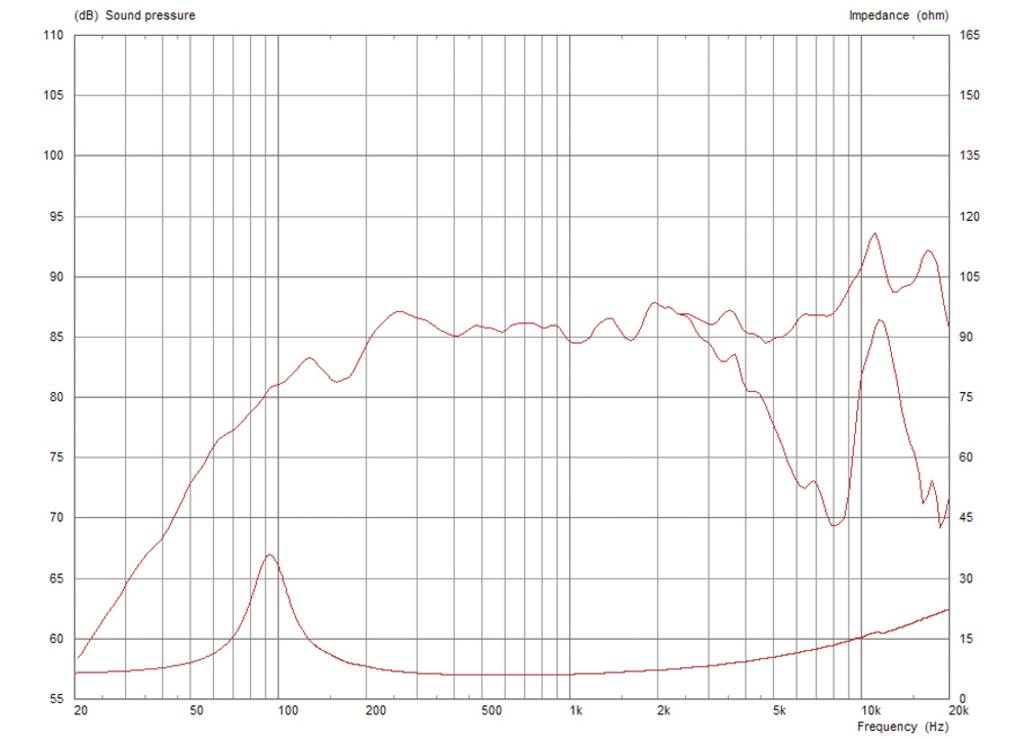

- Frequency range 98-18500 Hz
- Nominal capacity (RMS) 35 W.
- Characteristic sound pressure 87 dB/W/m
- Installation opening: 78.8 mm
- Mounting depth 50 mm
- Dimensions 89.3 x 89.3 x 50 mm
- Width: 89.3 mm
- Height: 89.3 mm
- Depth: 50 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.15 kg
- Speaker type 3.5"
- Gross weight: 0.2 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 113.4 Hz
- Music load capacity (MAX) 70 W
- Voice coil diameter 25 mm
- Hole diameter 104 mm
- Suspension compliance (Cms) 0.52 mm / N
- Moving mass (MMS): 3.76 g
- Mechanical quality (QMS): 50.093
- Electrical quality (QES): 0.740
- Overall quality (Qts): 0.646
- Equivalent volume (Vas): 1.9 l
- Direct current resistance (Re) 5.73 Ω
- Power factor (WxL) 4.56 Tm
- Voice coil former (Le):0.14 mH
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 2.25 mm
- Effective Membrane area (SD): 38.45 cm2
- Voice coil length 6.5 mm
- Product type
Wideband speaker
- Speaker size (inch)
3.5 inch
- RMS capacity
35 W
- Max. load
70 W
- Max. frequency
18500 Hz
- Min. frequency
98 Hz
- Impedance
8 Ω
- Sound pressure
87 dB
- Recess depth
50 mm
- Weight
0.15 kg
- Factory colour
Black
- Frequency range
98 Hz - 18500 Hz
- Height
89.3 mm
- Length
50 mm
- Width
89.3 mm
- Recess diameter
78.8 mm
Documents & Downloads
Datasheet
Datasheet 3340916 Monacor AN3510/8 3.5 inch Wideband speaker 35 W 8 Ω Black
User & Safety Instructions
User & Safety Instructions 3340916 Monacor AN3510/8 3.5 inch Wideband speaker 35 W 8 Ω Black
Description
Hi-Fi wideband speaker, 35 W, 8 Ω
Square basket for close coupling of the chassis with array applications Stable aluminum membrane Elastomer half-roll beading Weatherproof
This text is machine translated.
Square basket for close coupling of the chassis with array applications Stable aluminum membrane Elastomer half-roll beading Weatherproof
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 98-18500 Hz
- Resonance frequency (fs): 113.4 Hz
- Nominal capacity (RMS) 35 W.
- Music load capacity (MAX) 70 W
- Characteristic sound pressure 87 dB/W/m
- Suspension (Cms): 0.52 mm/N
- Moving earth (Mms): 3.76 g
- Mechanical quality (Qms): 50.093
- Electrical quality (QES): 0.740
- Overall quality (Qts): 0.646
- Equivalent volume (Vas): 1.9 l
- Direct current resistance (Re): 5.73 Ω
- Power factor (WxL) 4.56 Tm
- Voice coil former (Le): 0.14 mH
- Voice coil diameter: Ø 25 mm
- Voice coil length 6.5 mm
- Voice coil former: Polyimide
- Linear deflection (XMAX): ± 2.25 mm
- Effective Membrane area (Sd): 38.45 cm²
- Mounting hole dia. 78.8 mm.
- Mounting depth 50 mm
- Hole diameter: Ø 104 mm
- Dimensions 89.3 x 89.3 x 50 mm
- Width: 89.3 mm
- Height: 89.3 mm
- Depth: 50 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.15 kg
- Packing: 1
- Speaker type 3.5"
- Packaging dimensions (W x H x L) 0.11 x 0.065 x 0.11 m
- Gross weight: 0.2 kg
- Net weight: 0.15 kg
