Monacor ATT-212H/WS Volume control
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.15 kg
- Frequency range 50-18000 Hz
- Installation depth: 35 mm
- Dimensions 85 x 85 x 43 mm
- Weight: 150 g
- Type: Built-in PA volume control
- Nominal load 12 W
- Mandatory reception: No.
- Wall-mounted housing ATT-200
- Product type
Volume control
- Weight
150 g
- Width
85 mm
- Height
43 mm
- Length
85 mm
- Factory colour
White
- RMS capacity
12 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340566 Monacor ATT-212H/WS Volume control
User & Safety Instructions
User & Safety Instructions 3340566 Monacor ATT-212H/WS Volume control
Description
Built-in PA volume control

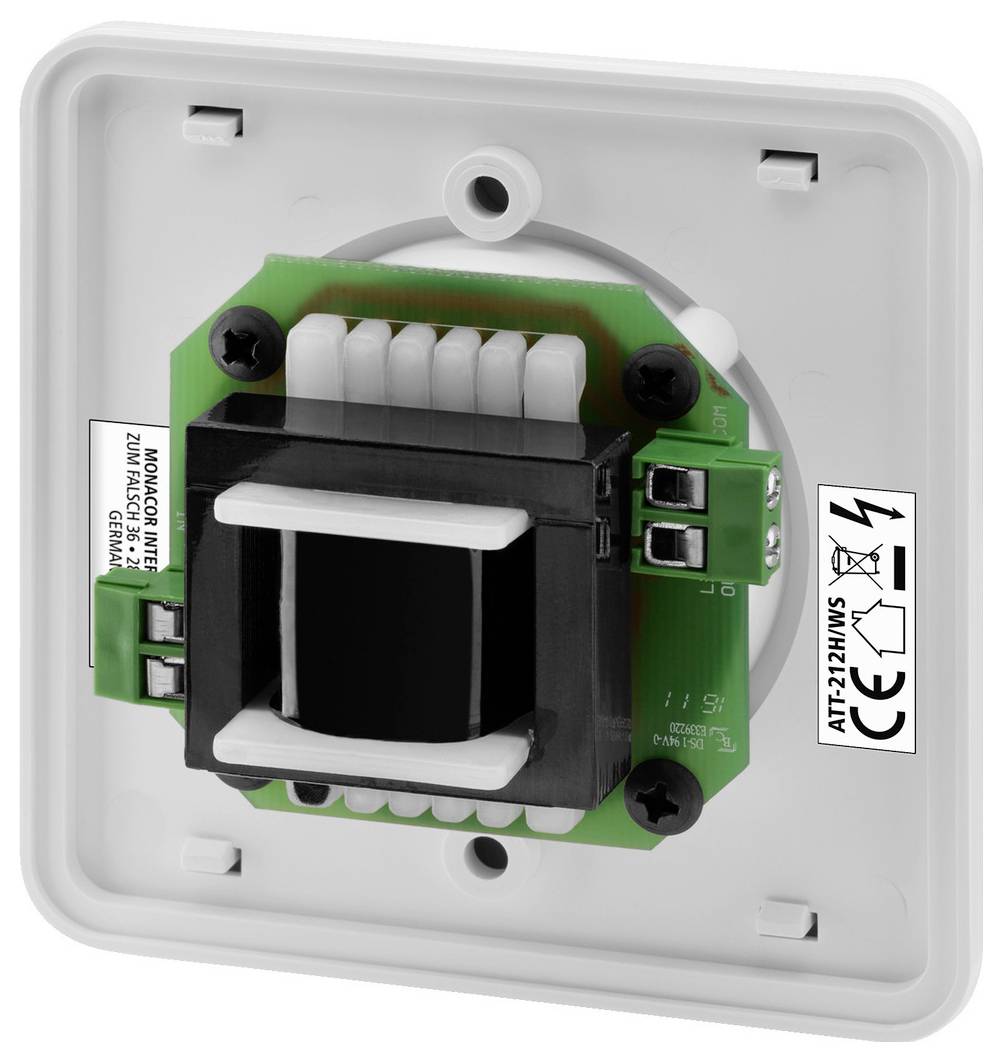

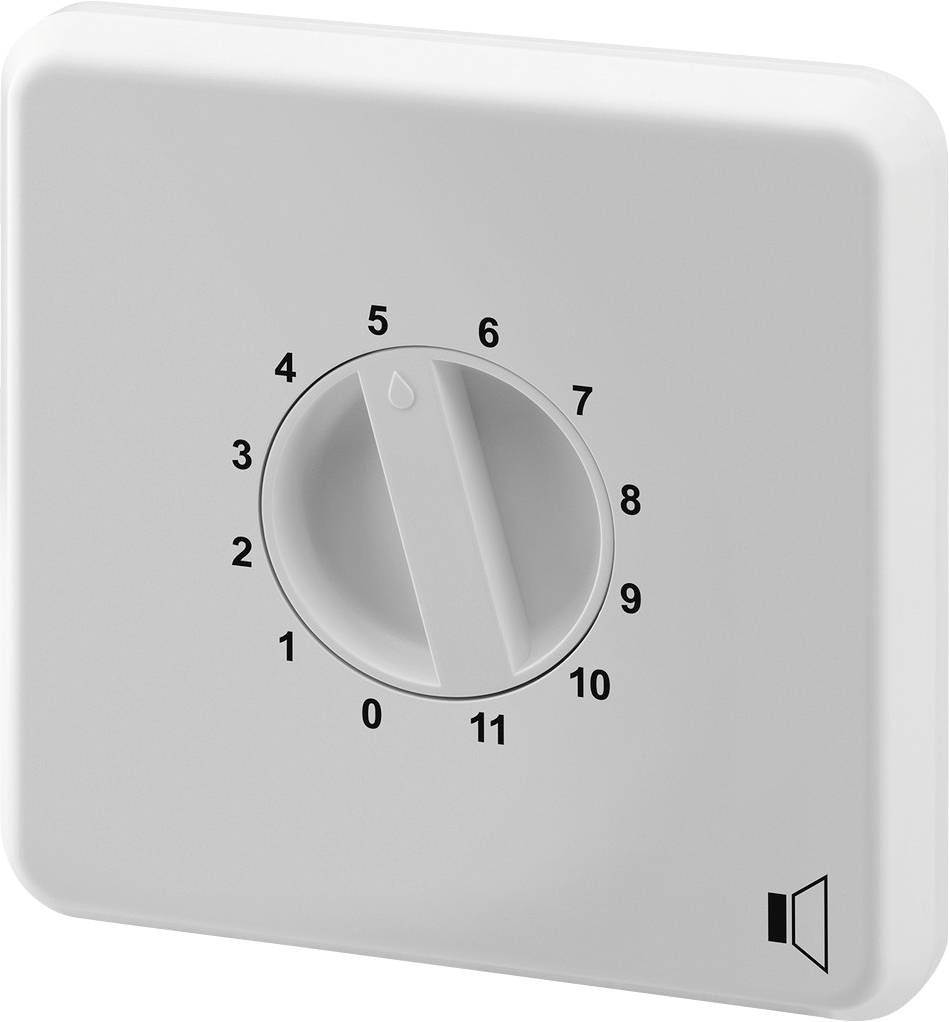

Nominal load 12 W Recessed control button to prevent accidental adjustment Attenuation in 11 levels and FROM audio transformer for 100-V-transmission technology Front plate (removable) and button made of white plastic Flush-mounting in standard hollow wall socket Wall mounting with matching, optionally available installation housing ATT-200
This text is machine translated.
Nominal load 12 W Recessed control button to prevent accidental adjustment Attenuation in 11 levels and FROM audio transformer for 100-V-transmission technology Front plate (removable) and button made of white plastic Flush-mounting in standard hollow wall socket Wall mounting with matching, optionally available installation housing ATT-200
This text is machine translated.
Features
- Type: Built-in PA volume control
- Frequency range 50-18000 Hz
- Nominal load 12 W
- Mandatory reception: No.
- Dimensions 85 x 85 x 43 mm
- Installation depth: 35 mm
- Weight: 150 g
- Wall-mounted housing ATT-200
