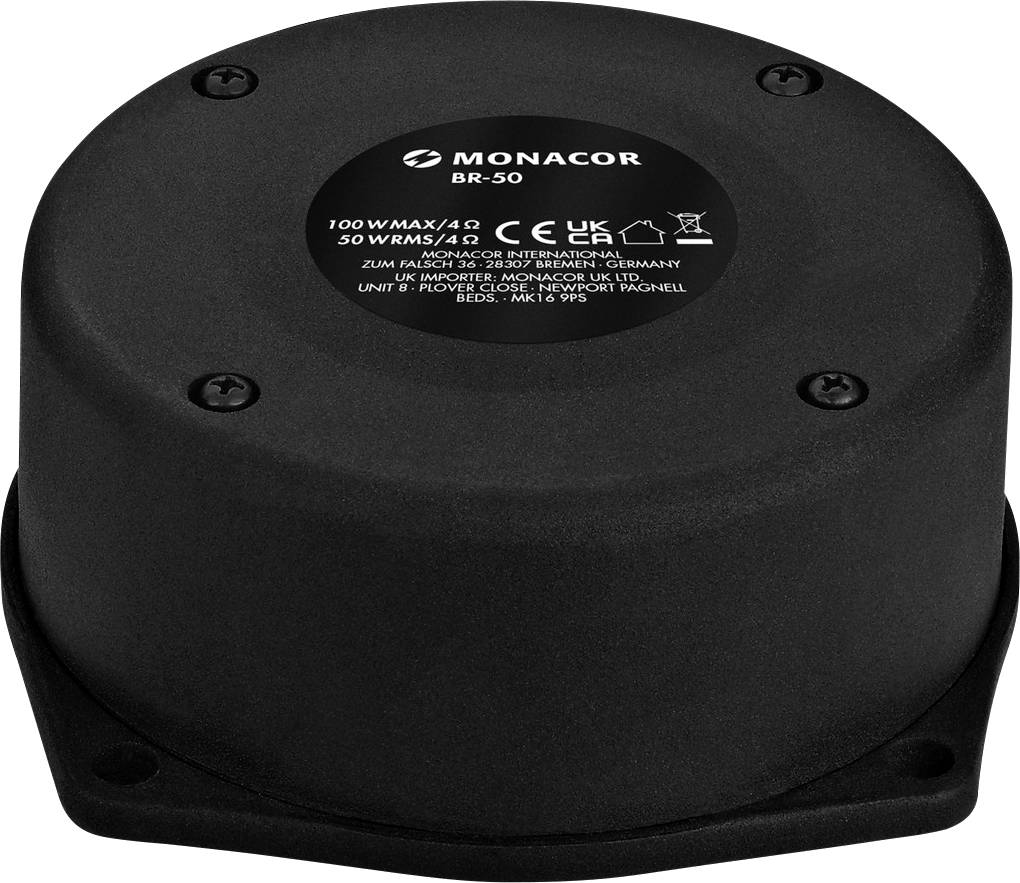

Monacor BR-50 #####Bass-Vibrationserzeuger #####Bass-Vibrationserzeuger
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.232 kg
- Transmission technology: Cable
- Frequency range 30-300 Hz
- Nominal capacity (RMS) 50 W.
- Characteristic sound pressure: No specification
- Mounting hole: Not required

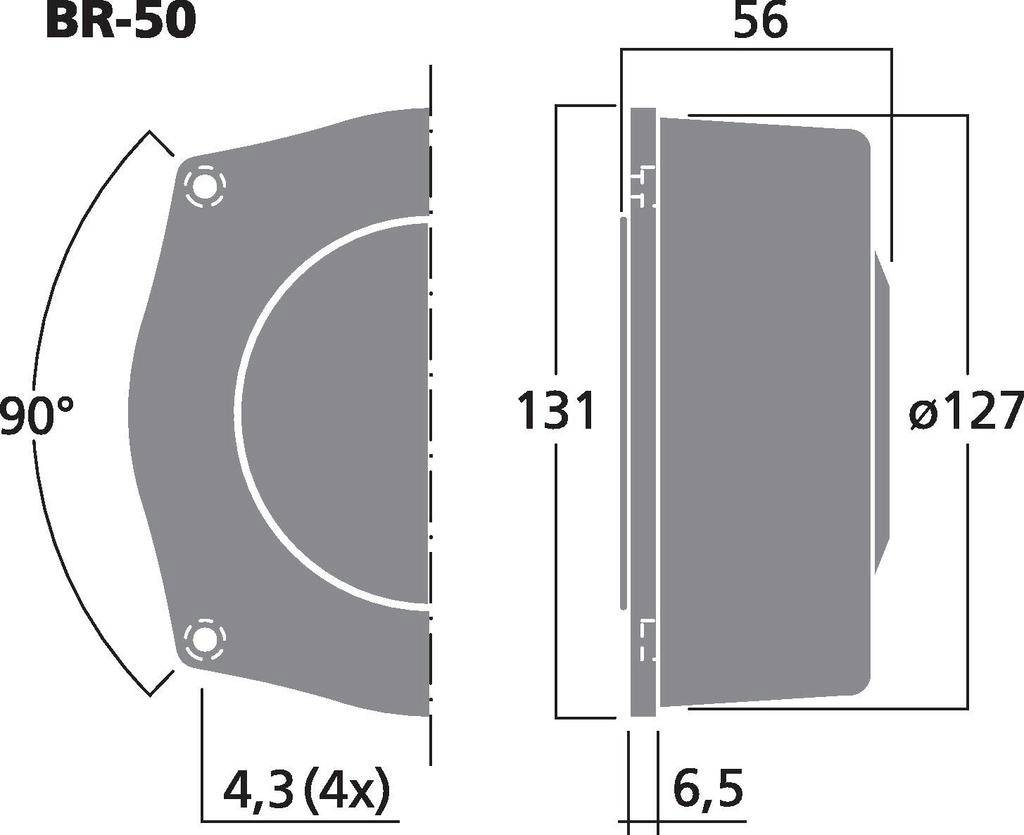

- Dimensions 131 x 131 x 56 mm
- Outer diameter: 152 mm
- Width 131 mm
- Height: 131 mm
- Depth: 56 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.232 kg
- Gross weight: 1.32 kg
- Impedance (Z) 4 Ω
- Resonant frequency (fs): 40 Hz
- Music load capacity (MAX) 100 W
- Product type
#####Bass-Vibrationserzeuger
n.rel.
- Dim
(Ø x H) 15.2 cm x 13.1 cm
- Weight
1.232 kg
- Width
13.1 cm
- Height
13.1 cm
- Length
5.6 cm
- Factory colour
Black
- (Ø)
15.2 cm
Documents & Downloads
Datasheet
Datasheet 3340836 Monacor BR-50 #####Bass-Vibrationserzeuger #####Bass-Vibrationserzeuger
User & Safety Instructions
User & Safety Instructions 3340836 Monacor BR-50 #####Bass-Vibrationserzeuger #####Bass-Vibrationserzeuger
Description
Bass vibration generator, 50 W, 4 Ω
Special technology for generating sound of the body Mounting on seats or also on swinging gas surfaces Produces physically tangible basses Simple screw assembly Connection to suitable main amplifier via simple passive switch as for subwoofer or better still via own amplifier Row and parallel connection of several BR-50 are possible as in usual woofers Resonance frequency 40 Hz (varies by the mounting on different surfaces) Functional area approx. 30-300 Hz Required, level mounting surface at least 110 x 110 mm Dimensions 131 x 131 x 56 mm Weight 1.232 kg
This text is machine translated.
Special technology for generating sound of the body Mounting on seats or also on swinging gas surfaces Produces physically tangible basses Simple screw assembly Connection to suitable main amplifier via simple passive switch as for subwoofer or better still via own amplifier Row and parallel connection of several BR-50 are possible as in usual woofers Resonance frequency 40 Hz (varies by the mounting on different surfaces) Functional area approx. 30-300 Hz Required, level mounting surface at least 110 x 110 mm Dimensions 131 x 131 x 56 mm Weight 1.232 kg
This text is machine translated.
Features
- Impedance (Z) 4 Ω
- Transmission technology: Cable
- Frequency range 30-300 Hz
- Resonance frequency (fs): 40 Hz
- Nominal capacity (RMS) 50 W.
- Music load capacity (MAX) 100 W
- Characteristic sound pressure: No specification
- Mounting hole: Not required
- Dimensions 131 x 131 x 56 mm
- Outer diameter: Ø 152 mm
- Width 131 mm
- Height: 131 mm
- Depth: 56 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.232 kg
- Packing: 1
- Packaging dimensions (W x H x L) 0.145 x 0.07 x 0.145 m
- Gross weight: 1.32 kg
- Net weight: 1.232 kg
