Monacor CD-114/BT DJ single CD MP3 player
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

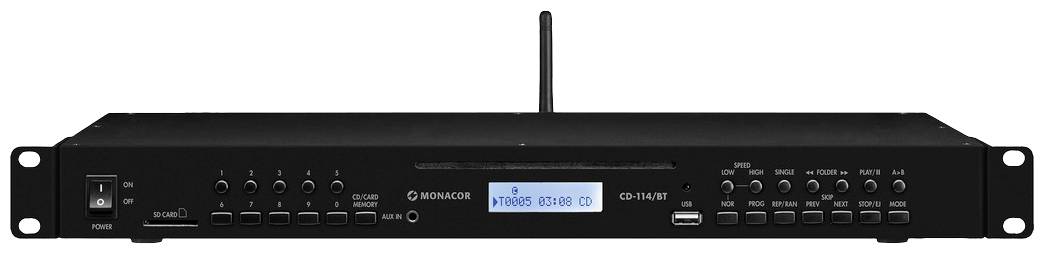

Monacor CD-114/BT CD- and MP3 player
- CD and MP3 player with Bluetooth receiver, USB interface and SD card slot
- Bluetooth receiver for wireless connection of notebooks, smart phones or tablet PCs
- Anti-shock system
Technical specifications
- MEDIA: CD, MP3, USB, SD
- Frequency range 20-20000 Hz
- 0.3 % distortion factor
- Channel separation 60 dB
- Signal-to-noise ratio 60 dB
- Output, analogue 0.8 V
- Power supply: " 230 V/50 Hz/30 VA
- Power consumption operation 30 VA
- Power consumption standby 9.2 VA
- Operating voltage (alternatively available): 24 V.
- Ass. Operating temperature 0-40 °C

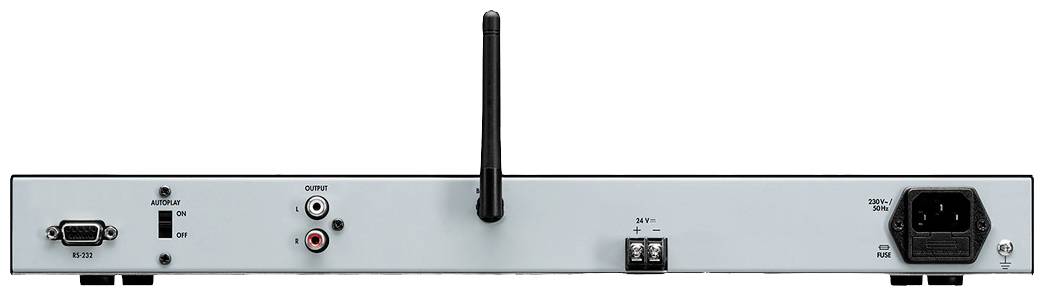

- 1 x RCA L/R; 1 x 3.5 mm stereo jack; 1 x RS-232
- Product type
DJ single CD MP3 player
- Dim
(W x H x D) 48.2 x 4.4 x 24.5 cm
- Anti-shock
Yes
- Effect section
Yes
- Weight
3.27 kg
- MP3 playback
Yes
- Width
48.2 cm
- Height
4.4 cm
- Depth
24.5 cm
- Interfaces
RCA out
RCA in
3.5 mm jack in
3.5 mm jack out
- No. of USB ports
1 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3029068 Monacor CD-114/BT DJ single CD MP3 player
User & Safety Instructions
User & Safety Instructions 3029068 Monacor CD-114/BT DJ single CD MP3 player
Description
The CD/MP3 player CD-114/BT with Bluetooth interface is suitable for a wide range of acoustic tasks (e.g., in the theater, in restaurants) and offers extensive functions, such as auto-start function, repeated playback, pitch function, program a track sequence. The playback media can be used as standard audio CDs (CD-DAS) as well as CDs, USB storage and SD cards (SD/SDHC/SDXC) with MP3 and WMA files. The device also has an RS232-interface for remote control via a computer.
This text is machine translated.
This text is machine translated.
Features
- CD and MP3 player with Bluetooth receiver, USB interface and SD card slot
- Bluetooth receiver for wireless connection of notebooks, smart phones or tablet PCs
- USB storage media can be connected directly
- For SD cards (SD/SDHC/SDXC) up to 128 GB (FAT16/FAT32), not included
- Anti-shock system
- ID3 tag support
- Auto play function
- Pitch function for CD, SD and USB
- Fast forward and rewind
- Title programming, 10 titles possible
- Repeat function (repeat 1, repeat all, repeat folder)
- Hot-key function

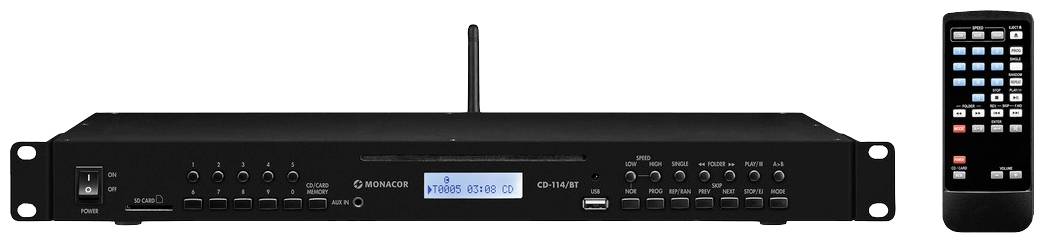

- Delivery including IR remote control
- Aux input, 3.5-mm stereo jack
- RS-232 interface
- 230 V mains connection and additional 24 V connection
- 482 mm rack installation (19"), 1 HE
- AUDIO CD/CD-R/CD-RW/MP3-CD, MP3/WMA/CDDA
Scope of delivery
- CD/MP3 PLAYER CD-114/BT
- IR remote control
- CR2025 button cell
- Power cable;
