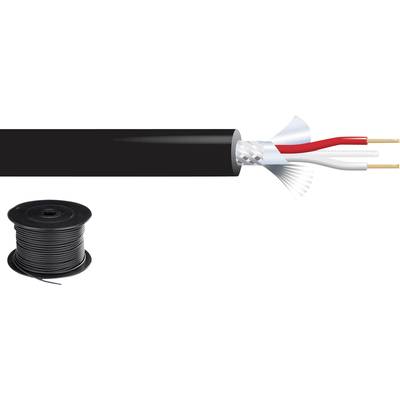

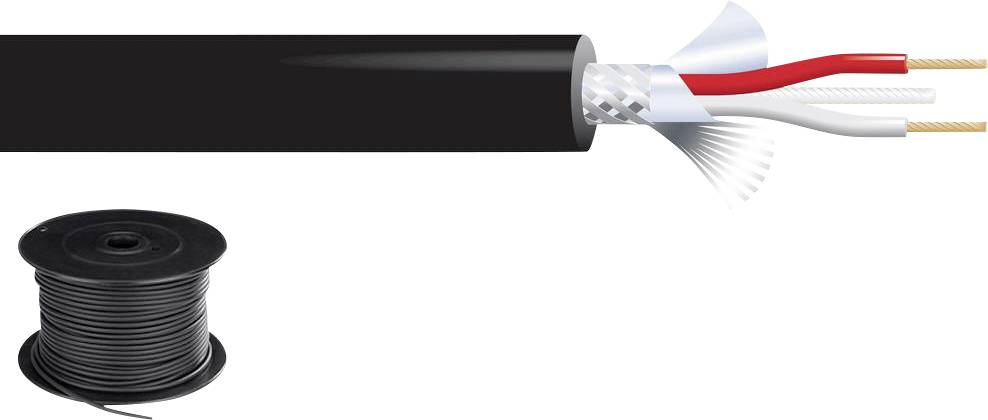

Monacor CDMX-3 DMX Cable 100 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.28 kg
- Colour, black
- Weighs 3.28 kg.
- Length: 100 m
- Others: Digital-compatible
- Material: Copper
- Impedance 110 Ω
- Use: DMX
- Number of wires 2
- cable diameter 4.5 mm
- Shielding: Common, double
- Inner conductor 2 x 0.22 mm2
- Meter marking: Yes
- Input capacity 57 pF
- Cable use
DMX
- Product type
DMX Cable
- Version
Cable
- Cores
2
- Factory colour
Black
- Weight
3.28 kg
- Cable length
100 m
- Material
Copper
Documents & Downloads
Datasheet
Datasheet 3340778 Monacor CDMX-3 DMX Cable 100 m
User & Safety Instructions
User & Safety Instructions 3340778 Monacor CDMX-3 DMX Cable 100 m
Description
Control cable
For transmitting digital DMX512 or AES/EBU signals
100-m-roll 2 x 0.22 mm2 Meter marking Double shielding Outside diameter Ø 4.5 mm High tensile strength Wave resistance 110 Ω Very low capacitance 57 pF/m
This text is machine translated.
For transmitting digital DMX512 or AES/EBU signals
100-m-roll 2 x 0.22 mm2 Meter marking Double shielding Outside diameter Ø 4.5 mm High tensile strength Wave resistance 110 Ω Very low capacitance 57 pF/m
This text is machine translated.
Features
- Use: DMX
- Length: 100 m
- Colour, black
- Inner conductor 2 x 0.22 mm²
- Material: Copper
- Number of wires 2
- Cable diameter: Ø 4.5 mm
- Meter marking: Yes
- Shielding: Common
- Double
- Impedance 110 Ω
- Input capacity 57 pF
- Packing: Roll
- Weighs 3.28 kg.
- Others: Digital-compatible
