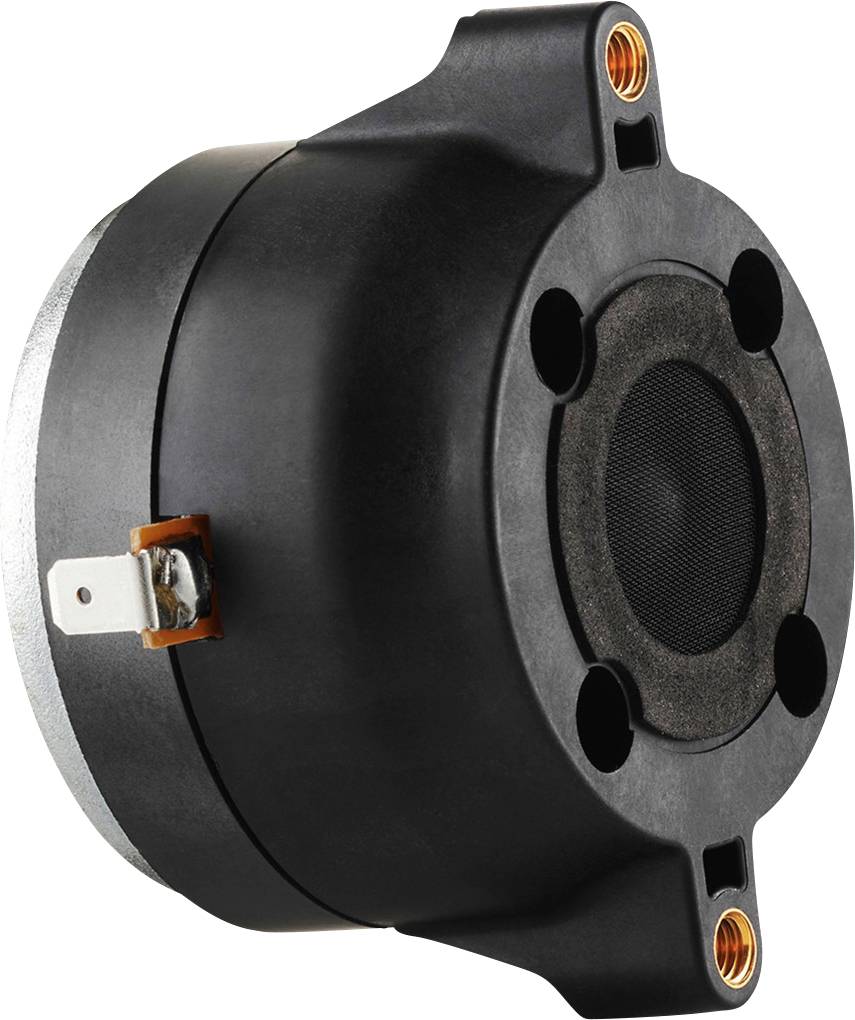

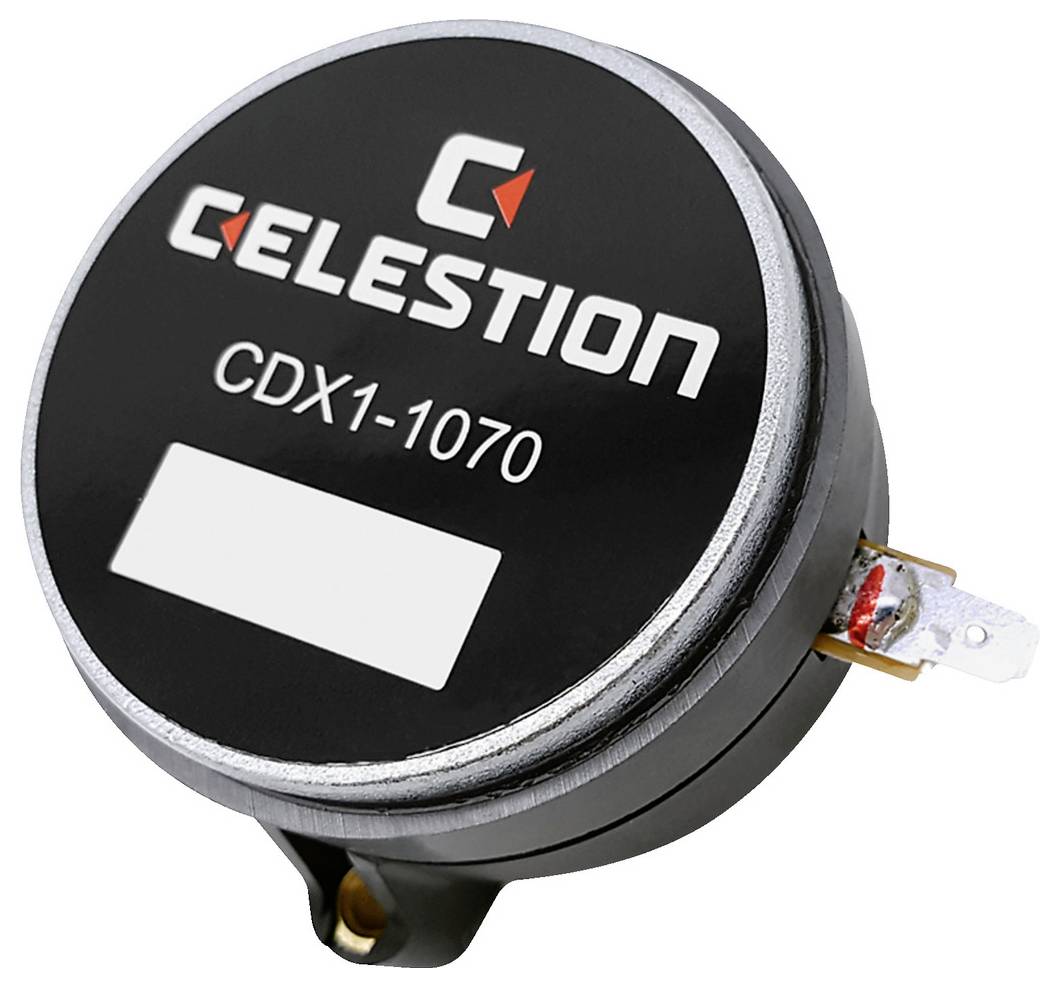

Monacor CDX1-1070/8 PA horn driver RMS capacity=12 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.5 kg
- Transmission technology: Cable
- Frequency range 1500-20000 Hz
- Nominal capacity (RMS) 12 W.
- Characteristic sound pressure 106 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions: Ø 70 mm x 50 mm
- Outer diameter: 70 mm
- Width 70 mm
- Height: 70 mm
- Depth: 50 mm
- Colour black/silver.
- Ass. Operating temperature 0-40 °C
- Weight: 0.5 kg
- Speaker type 1"
- Gross weight: 0.57 kg
- Impedance (Z) 8 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Music load capacity (MAX) 24 W
- Voice coil diameter 25 mm
- Hole diameter: Ø 76 mm (2 hole)
- Moving coil former: PETP
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 25 mm
- Product type
PA horn driver
- RMS capacity
12 W
- Max. load
24 W
- Min. frequency
1500 Hz
- Max. frequency
20000 Hz
- Frequency range
1500 Hz - 20000 Hz
- Impedance
8 Ω
- Weight
0.5 kg
- (Ø)
70 mm
- Width
70 mm
- Height
70 mm
- Factory colour
Black/silver
- Depth
50 mm
- Sound pressure
106 dB
- Speaker size (inch)
1 inch
Documents & Downloads
Datasheet
Datasheet 3340876 Monacor CDX1-1070/8 PA horn driver RMS capacity=12 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340876 Monacor CDX1-1070/8 PA horn driver RMS capacity=12 W 8 Ω
Description
PA HORN DRIVER, 24 W, 8 Ω
25-mm compression driver (1") with 25-mm moving coil (1") and ferrite magnet One-part PETP diaphragm and crimp Recommended crossover frequency 2200 Hz (12 dB/oct.) 2-hole-screws-Mounting
This text is machine translated.
25-mm compression driver (1") with 25-mm moving coil (1") and ferrite magnet One-part PETP diaphragm and crimp Recommended crossover frequency 2200 Hz (12 dB/oct.) 2-hole-screws-Mounting
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 1500-20000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Nominal capacity (RMS) 12 W.
- Music load capacity (MAX) 24 W
- Characteristic sound pressure 106 dB/W/m
- Voice coil diameter: Ø 25 mm
- Voice coil material: Copper-coated aluminum flat wire
- Moving coil former: PETP
- Outlet opening 25 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 76 mm (2 hole)
- Dimensions: Ø 70 mm x 50 mm
- Outer diameter: Ø 70 mm
- Width: Ø 70 mm
- Height: Ø 70 mm
- Depth: 50 mm
- Colour black/silver.
- Ass. Operating temperature 0-40 °C
- Weight: 0.5 kg
- Packing: 1
- Speaker type 1"
- Packaging dimensions (W x H x L) 0.095 x 0.065 x 0.095 m
- Gross weight: 0.57 kg
- Net weight: 0.5 kg
