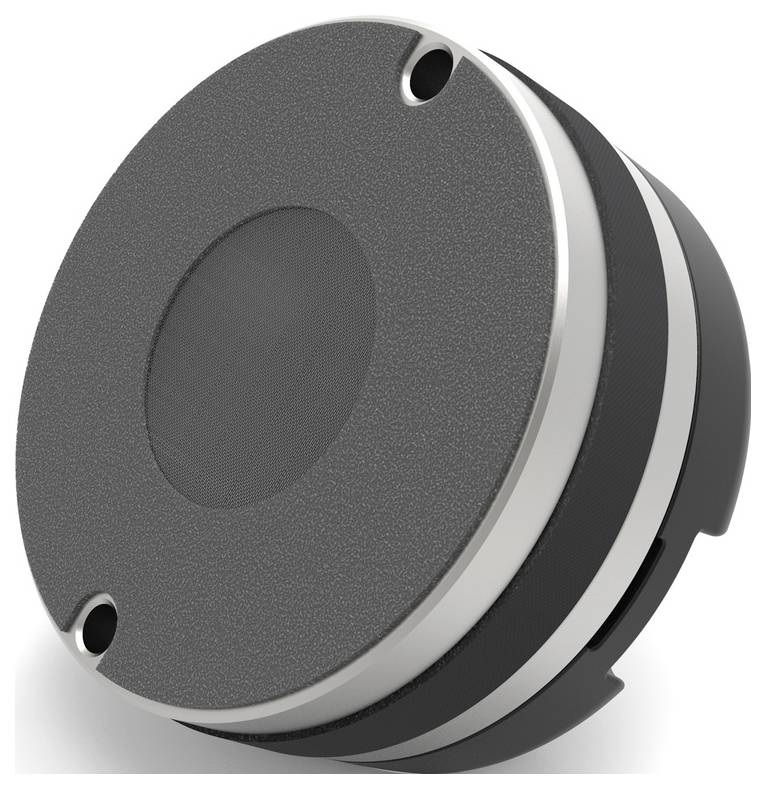

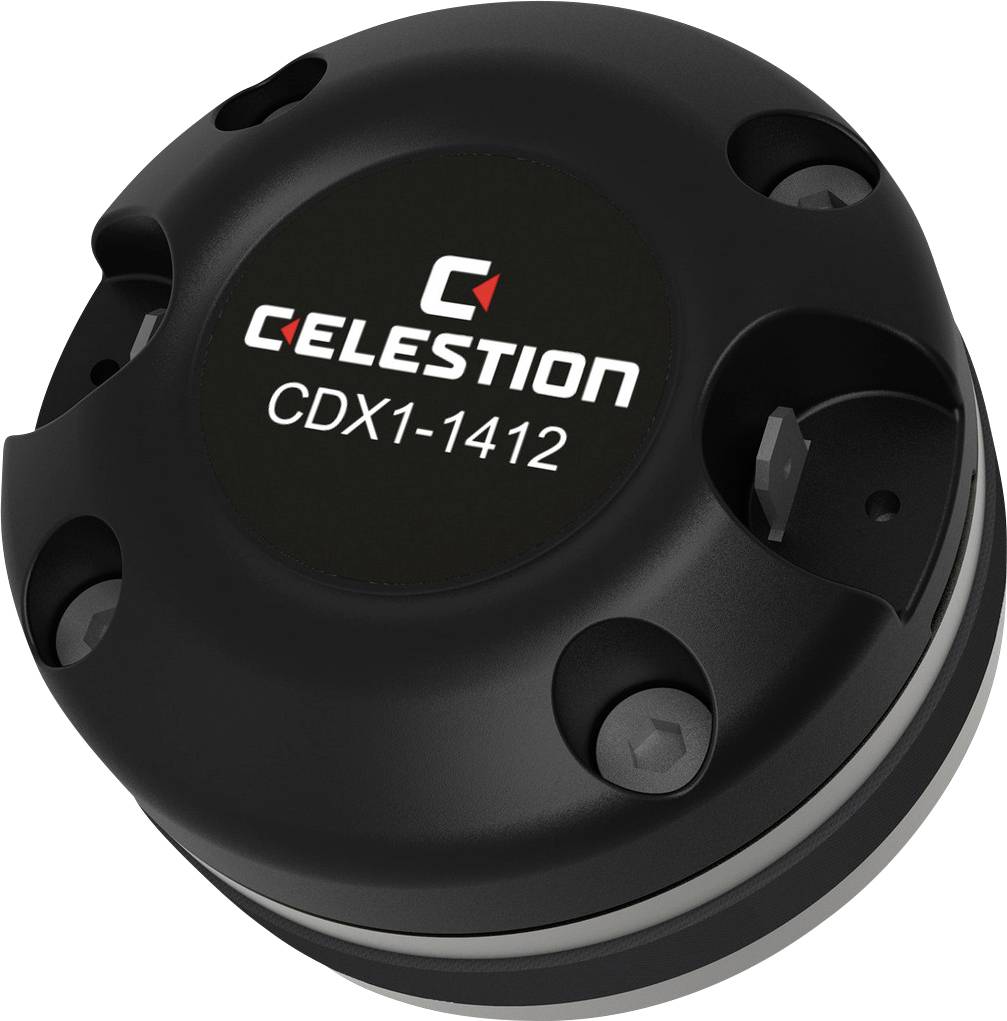

Monacor CDX1-1412/8 PA horn driver RMS capacity=35 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.35 kg
- Transmission technology: Cable
- Frequency range 1500-20000 Hz
- Nominal capacity (RMS) 35 W.
- Characteristic sound pressure 106 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions 60 x 34.5 mm
- Outer diameter: 60 mm
- Width 60 mm
- Height: 60 mm
- Depth: 34.5 mm
- Colour black/silver.
- Ass. Operating temperature 0-40 °C
- Weight 0.35 kg
- Speaker type 1"
- Gross weight: 0.4 kg
- Impedance (Z) 8 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- Music load capacity (MAX) 70 W
- Voice coil diameter 35 mm
- Hole diameter: Ø 52 mm (2x M5)
- Voice coil former: Polyimide
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 25 mm
- Product type
PA horn driver
- RMS capacity
35 W
- Max. load
70 W
- Min. frequency
1500 Hz
- Max. frequency
20000 Hz
- Frequency range
1500 Hz - 20000 Hz
- Impedance
8 Ω
- Weight
0.35 kg
- (Ø)
60 mm
- Width
60 mm
- Height
60 mm
- Factory colour
Black/silver
- Depth
34.5 mm
- Sound pressure
106 dB
- Speaker size (inch)
1 inch
Documents & Downloads
Datasheet
Datasheet 3340874 Monacor CDX1-1412/8 PA horn driver RMS capacity=35 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340874 Monacor CDX1-1412/8 PA horn driver RMS capacity=35 W 8 Ω
Description
PA HORN DRIVER, 35 W, 8 Ω
Very compact design for mobile applications One-part polyamide film membrane and crimp Recommended separation frequency 2000 Hz (12 dB/oct.) 2-hole screw mounting Also available as a 16 Ω version (CDX1-1412/16)
This text is machine translated.
Very compact design for mobile applications One-part polyamide film membrane and crimp Recommended separation frequency 2000 Hz (12 dB/oct.) 2-hole screw mounting Also available as a 16 Ω version (CDX1-1412/16)
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 1500-20000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2000 Hz
- Nominal capacity (RMS) 35 W.
- Music load capacity (MAX) 70 W
- Characteristic sound pressure 106 dB/W/m
- Voice coil diameter: Ø 35 mm
- Voice coil material: Copper-coated aluminum flat wire
- Voice coil former: Polyimide
- Outlet opening Ø 25 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 52 mm (2x M5)
- Dimensions: Ø 60 mm x 34.5 mm
- Outer diameter: Ø 60 mm
- Width: Ø 60 mm
- Height: Ø 60 mm
- Depth: 34.5 mm
- Colour black/silver.
- Ass. Operating temperature 0-40 °C
- Weight 0.35 kg
- Packing: 1
- Speaker type 1"
- Packaging dimensions (W x H x L) 0.115 x 0.065 x 0.115 m
- Gross weight: 0.4 kg
- Net weight: 0.35 kg
