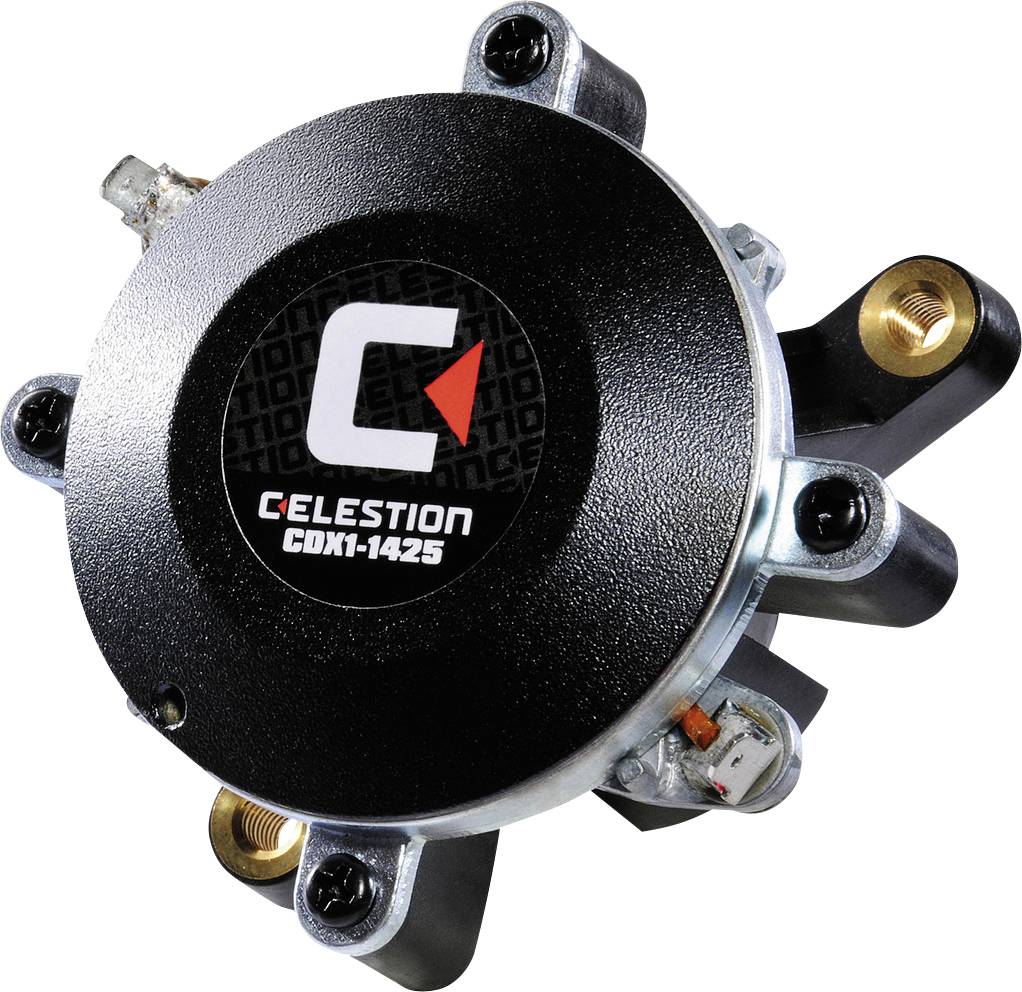

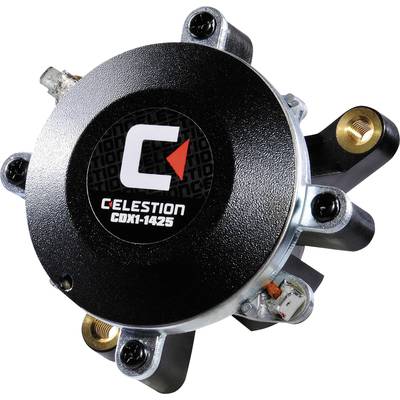

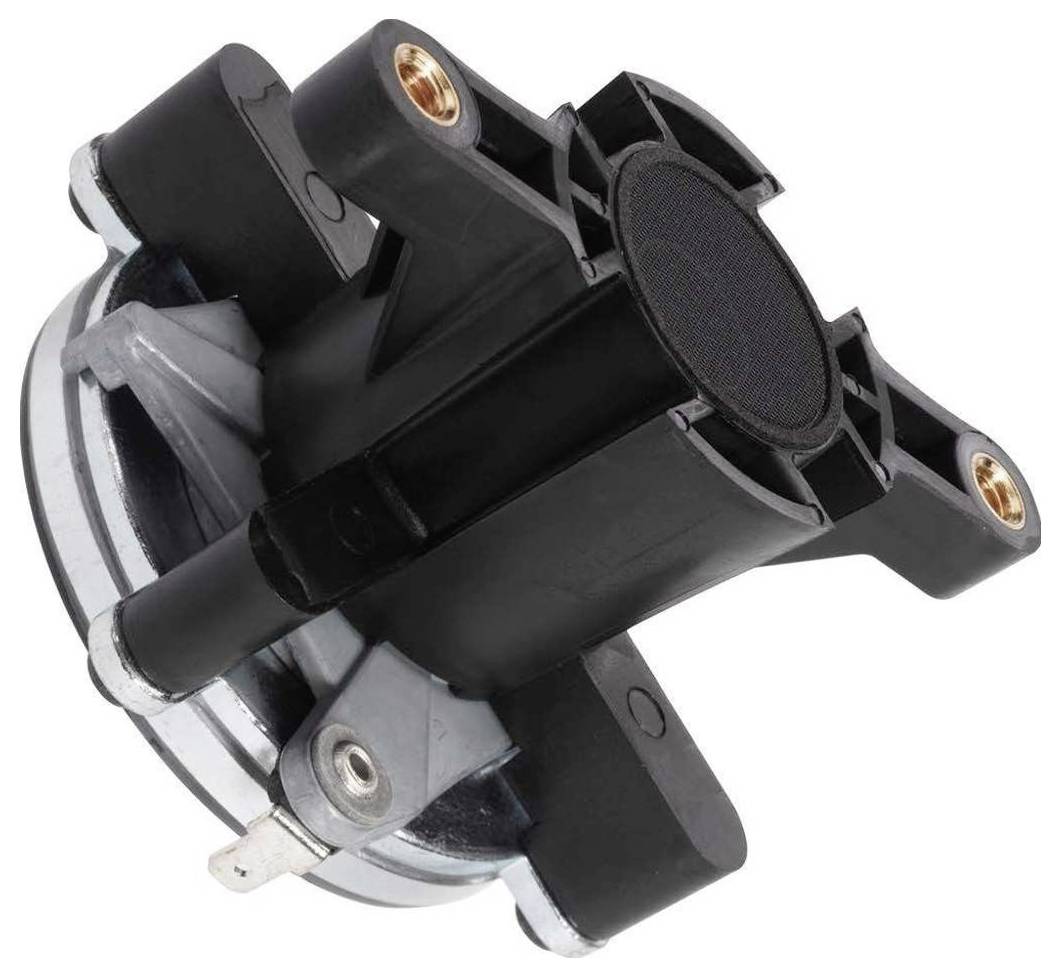

Monacor CDX1-1425/8 PA horn driver RMS capacity=25 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.42 kg
- Transmission technology: Cable
- Frequency range 2000-20000 Hz
- Nominal capacity (RMS) 25 W.
- Characteristic sound pressure 108 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions 90 x 58 mm
- Outer diameter: 90 mm
- Width 90 mm
- Height: 90 mm
- Depth: 58 mm
- Colour black/silver.
- Ass. Operating temperature 0-40 °C
- Weight 0.42 kg
- Speaker type 1"
- Gross weight: 0.45 kg
- Impedance (Z) 8 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2500 Hz
- Music load capacity (MAX) 50 W
- Voice coil diameter 35 mm
- Hole diameter: Ø 76 mm (2x M6)
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 25 mm
- Product type
PA horn driver
- RMS capacity
25 W
- Max. load
50 W
- Min. frequency
2000 Hz
- Max. frequency
20000 Hz
- Frequency range
2000 Hz - 20000 Hz
- Impedance
8 Ω
- Weight
0.42 kg
- (Ø)
90 mm
- Width
90 mm
- Height
90 mm
- Factory colour
Black/silver
- Depth
58 mm
- Sound pressure
108 dB
- Speaker size (inch)
1 inch
Documents & Downloads
Datasheet
Datasheet 3340889 Monacor CDX1-1425/8 PA horn driver RMS capacity=25 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340889 Monacor CDX1-1425/8 PA horn driver RMS capacity=25 W 8 Ω
Description
PA HORN DRIVER, 25 W, 8 Ω
High quality 25 mm compression driver (1") with 35 mm voice coil (1.4") and ferrite magnet made of aluminum membrane with elastomer crimp Copper inductance sleeve for improved HF-power Recommended cut-off frequency 2500 Hz (12 dB/oct.) 2-hole-screws-Mounting
This text is machine translated.
High quality 25 mm compression driver (1") with 35 mm voice coil (1.4") and ferrite magnet made of aluminum membrane with elastomer crimp Copper inductance sleeve for improved HF-power Recommended cut-off frequency 2500 Hz (12 dB/oct.) 2-hole-screws-Mounting
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 2000-20000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2500 Hz
- Nominal capacity (RMS) 25 W.
- Music load capacity (MAX) 50 W
- Characteristic sound pressure 108 dB/W/m
- Voice coil diameter: Ø 35 mm
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening Ø 25 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 76 mm (2x M6)
- Dimensions: Ø 90 mm x 58 mm
- Outer diameter: Ø 90 mm
- Width: Ø 90 mm
- Height: Ø 90 mm
- Depth: 58 mm
- Colour black/silver.
- Ass. Operating temperature 0-40 °C
- Weight 0.42 kg
- Packing: 1
- Speaker type 1"
- Packaging dimensions (W x H x L) 0.09 x 0.08 x 0.09 m
- Gross weight: 0.45 kg
- Net weight: 0.42 kg
