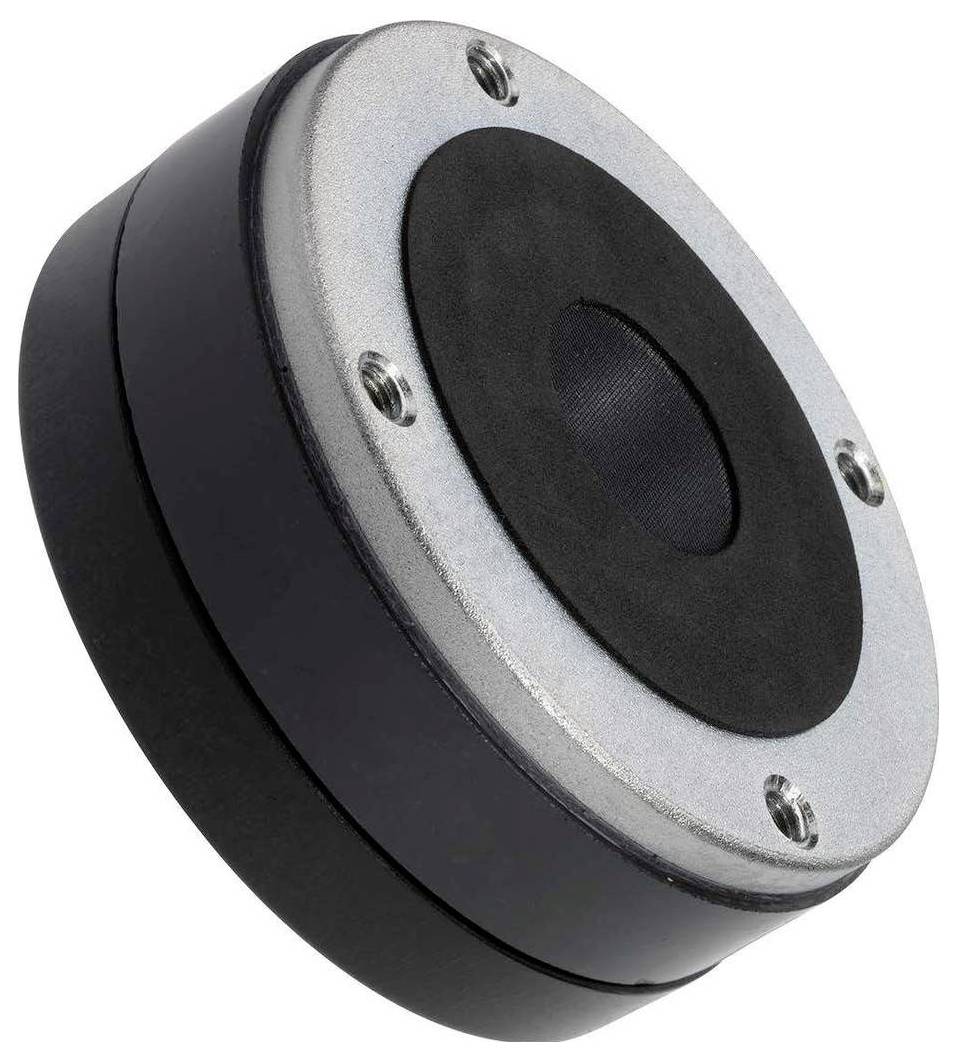

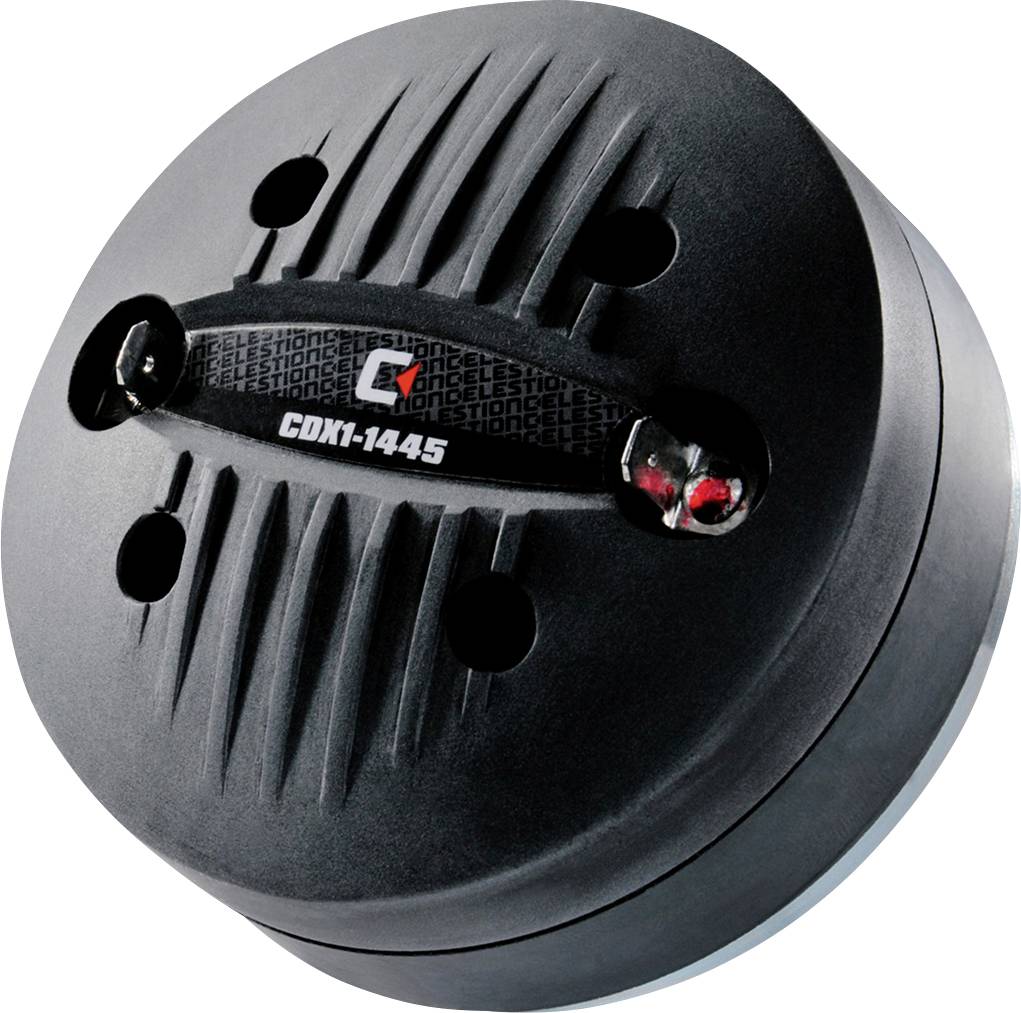

Monacor CDX1-1445/16 PA horn driver RMS capacity=20 W 16 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.98 kg
- Transmission technology: Cable
- Frequency range 1500-20000 Hz
- Nominal capacity (RMS) 20 W.
- Characteristic sound pressure 106 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions 90 x 52 mm
- Outer diameter: 90 mm
- Width 90 mm
- Height: 90 mm
- Depth: 52 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.98 kg
- Speaker type 1"
- Gross weight: 1.09 kg
- Impedance (Z) 16 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Music load capacity (MAX) 40 W
- Voice coil diameter 35 mm
- Hole diameter: Ø 76 mm (4x M6)
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 25 mm
- Product type
PA horn driver
- RMS capacity
20 W
- Max. load
40 W
- Min. frequency
1500 Hz
- Max. frequency
20000 Hz
- Frequency range
1500 Hz - 20000 Hz
- Impedance
16 Ω
- Weight
0.98 kg
- (Ø)
90 mm
- Width
90 mm
- Height
90 mm
- Factory colour
Black
- Depth
52 mm
- Sound pressure
106 dB
- Speaker size (inch)
1 inch
Documents & Downloads
Datasheet
Datasheet 3340831 Monacor CDX1-1445/16 PA horn driver RMS capacity=20 W 16 Ω
User & Safety Instructions
User & Safety Instructions 3340831 Monacor CDX1-1445/16 PA horn driver RMS capacity=20 W 16 Ω
Description
PA HORN DRIVER, 20 W, 16 Ω
High-quality 25 mm compression driver (1") with 35 mm voice coil (1.4") and ferrite magnet One-part PETP diaphragm and bead Integrated membrane and back cover for easy replacement Recommended crossover frequency 2200 Hz (12 dB/oct.) 4-hole screw mounting Also available as a 8-Ω-version CDX1-1445/8
This text is machine translated.
High-quality 25 mm compression driver (1") with 35 mm voice coil (1.4") and ferrite magnet One-part PETP diaphragm and bead Integrated membrane and back cover for easy replacement Recommended crossover frequency 2200 Hz (12 dB/oct.) 4-hole screw mounting Also available as a 8-Ω-version CDX1-1445/8
This text is machine translated.
Features
- Impedance (Z) 16 Ω
- Transmission technology: Cable
- Frequency range 1500-20000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):2200 Hz
- Nominal capacity (RMS) 20 W.
- Music load capacity (MAX) 40 W
- Characteristic sound pressure 106 dB/W/m
- Voice coil diameter: Ø 35 mm
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening Ø 25 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 76 mm (4x M6)
- Dimensions: Ø 90 mm x 52 mm
- Outer diameter: Ø 90 mm
- Width: Ø 90 mm
- Height: Ø 90 mm
- Depth: 52 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight 0.98 kg
- Packing: 1
- Speaker type 1"
- Packaging dimensions (W x H x L) 0.13 x 0.08 x 0.11 m
- Gross weight: 1.09 kg
- Net weight: 0.98 kg
