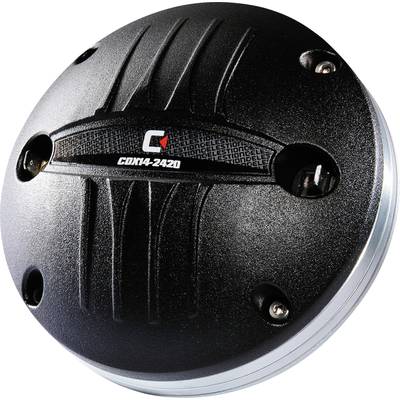

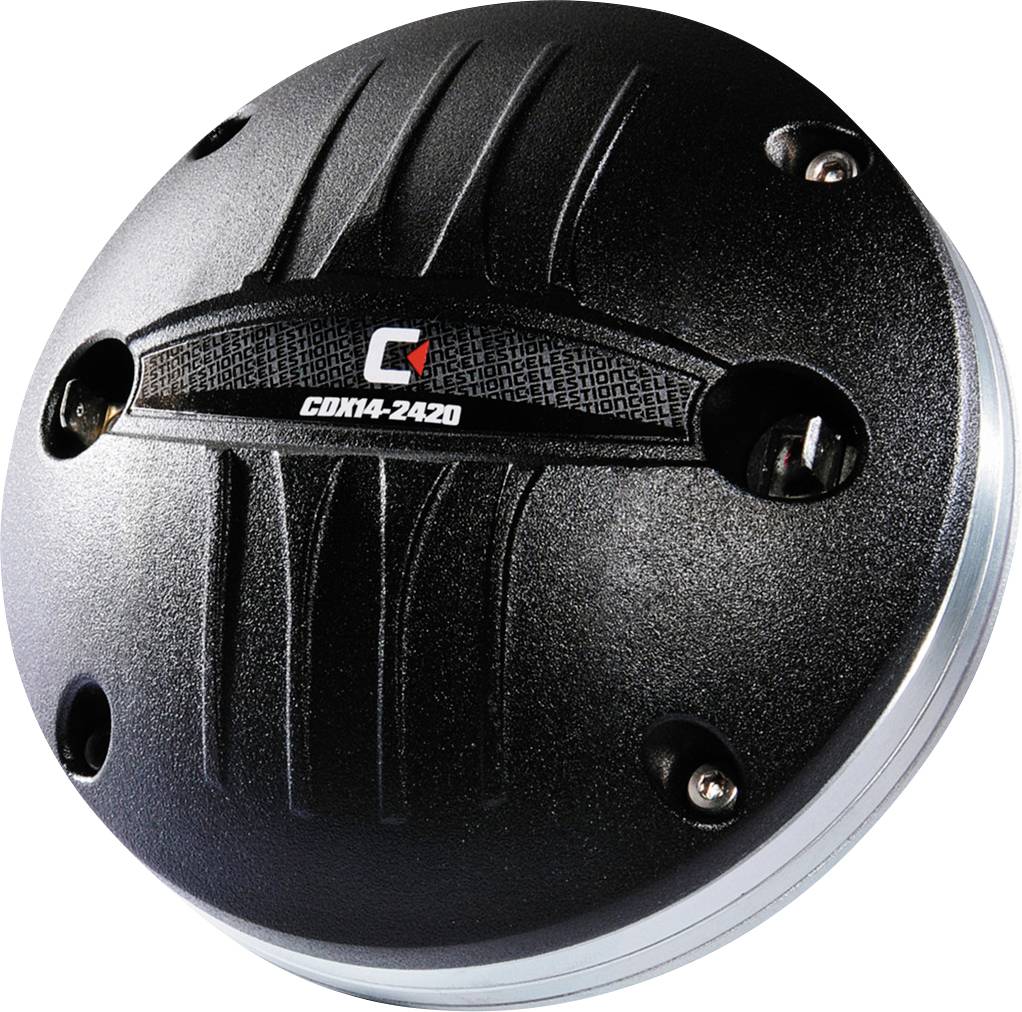

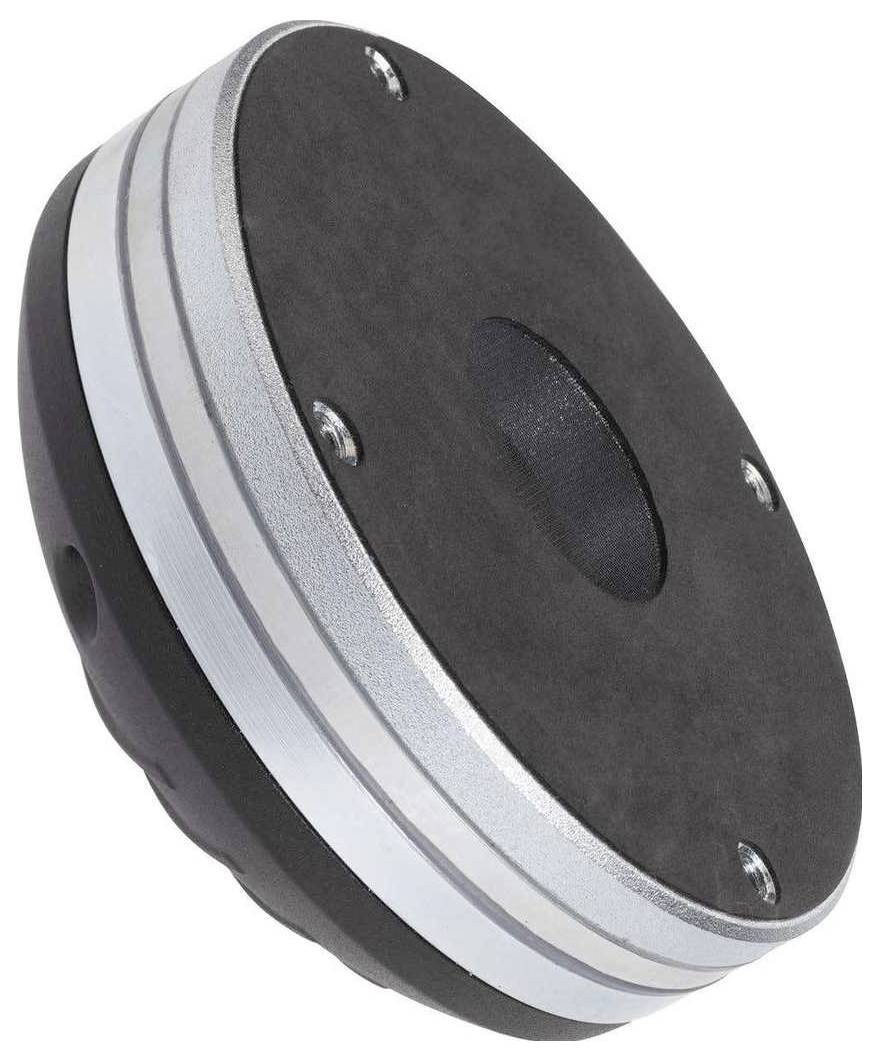

Monacor CDX14-2420/8 PA horn driver RMS capacity=70 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.75 kg
- Transmission technology: Cable
- Frequency range 800-20000 Hz
- Nominal capacity (RMS) 70 W.
- Characteristic sound pressure 106.5 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions 116 x 56 mm
- Outer diameter: 116 mm
- Width 116 mm
- Height: 116 mm
- Depth: 56 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.75 kg
- Speaker type 1.4"
- Gross weight: 1.91 kg
- Impedance (Z) 8 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):1200 Hz
- Music load capacity (MAX) 140 W
- Voice coil diameter 60 mm
- Hole diameter: Ø 102 mm (4x M6)
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 36 mm
- Product type
PA horn driver
- RMS capacity
70 W
- Max. load
140 W
- Min. frequency
800 Hz
- Max. frequency
20000 Hz
- Frequency range
800 Hz - 20000 Hz
- Impedance
8 Ω
- Weight
1.75 kg
- (Ø)
116 mm
- Width
116 mm
- Height
116 mm
- Factory colour
Black
- Depth
56 mm
- Sound pressure
106.5 dB
- Speaker size (inch)
1.4 inch
Documents & Downloads
Datasheet
Datasheet 3340914 Monacor CDX14-2420/8 PA horn driver RMS capacity=70 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340914 Monacor CDX14-2420/8 PA horn driver RMS capacity=70 W 8 Ω
Description
PA HORN DRIVER, 70 W, 8 Ω
High quality 35 mm compression driver (1.4") with 60 mm voice coil (2.4") and neodymium magnet phase plug with maximum modal suppression Deep-drawn titanium diaphragm and polyimide surround Recommended crossover frequency 1200 Hz (12 dB/oct.)
This text is machine translated.
High quality 35 mm compression driver (1.4") with 60 mm voice coil (2.4") and neodymium magnet phase plug with maximum modal suppression Deep-drawn titanium diaphragm and polyimide surround Recommended crossover frequency 1200 Hz (12 dB/oct.)
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 800-20000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):1200 Hz
- Nominal capacity (RMS) 70 W.
- Music load capacity (MAX) 140 W
- Characteristic sound pressure 106.5 dB/W/m
- Voice coil diameter: Ø 60 mm
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening Ø 36 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 102 mm (4x M6)
- Dimensions: Ø 116 mm x 56 mm
- Outer diameter: Ø 116 mm
- Width: Ø 116 mm
- Height: Ø 116 mm
- Depth: 56 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.75 kg
- Packing: 1
- Speaker type 1.4"
- Packaging dimensions (W x H x L) 0.135 x 0.07 x 0.175 m
- Gross weight: 1.91 kg
- Net weight: 1.75 kg
