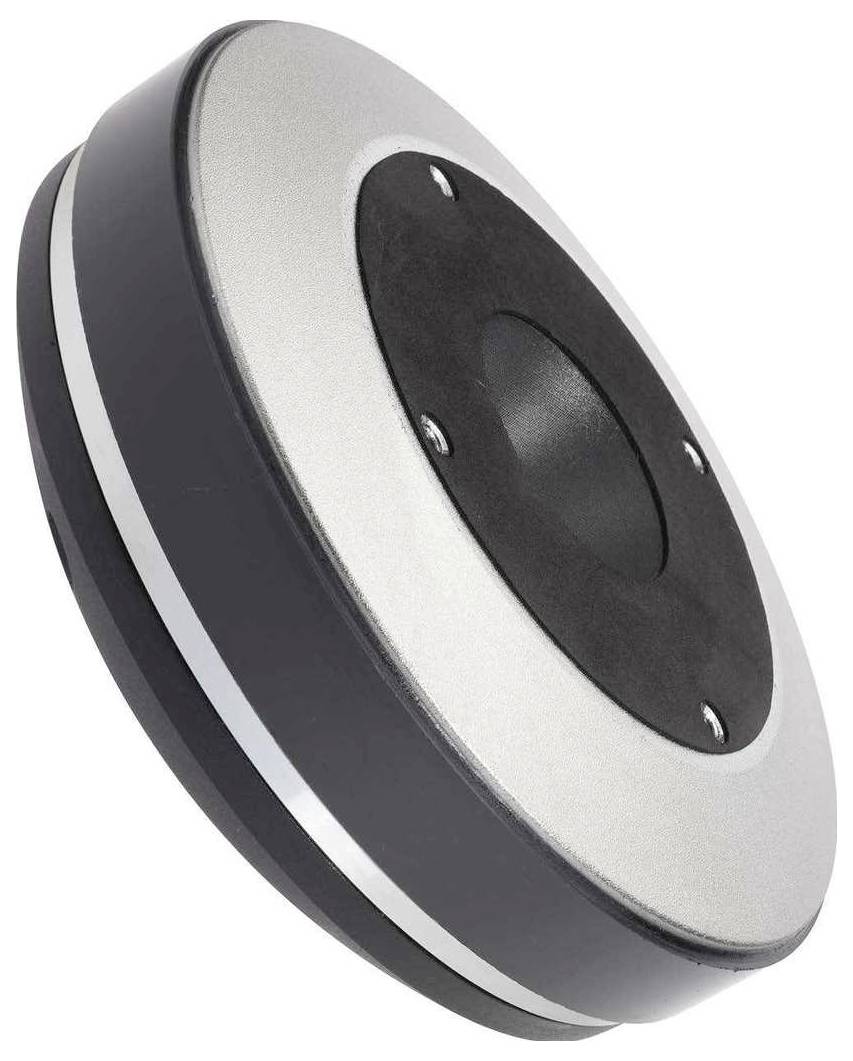

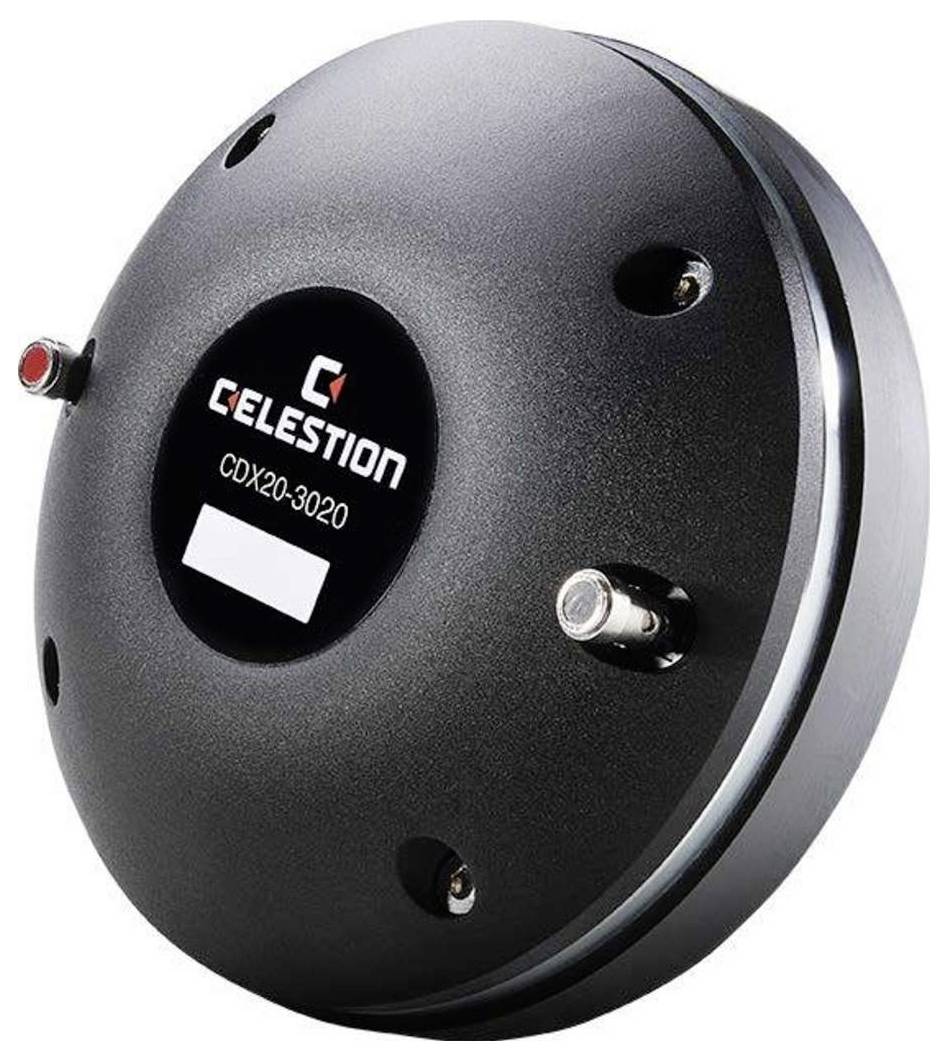

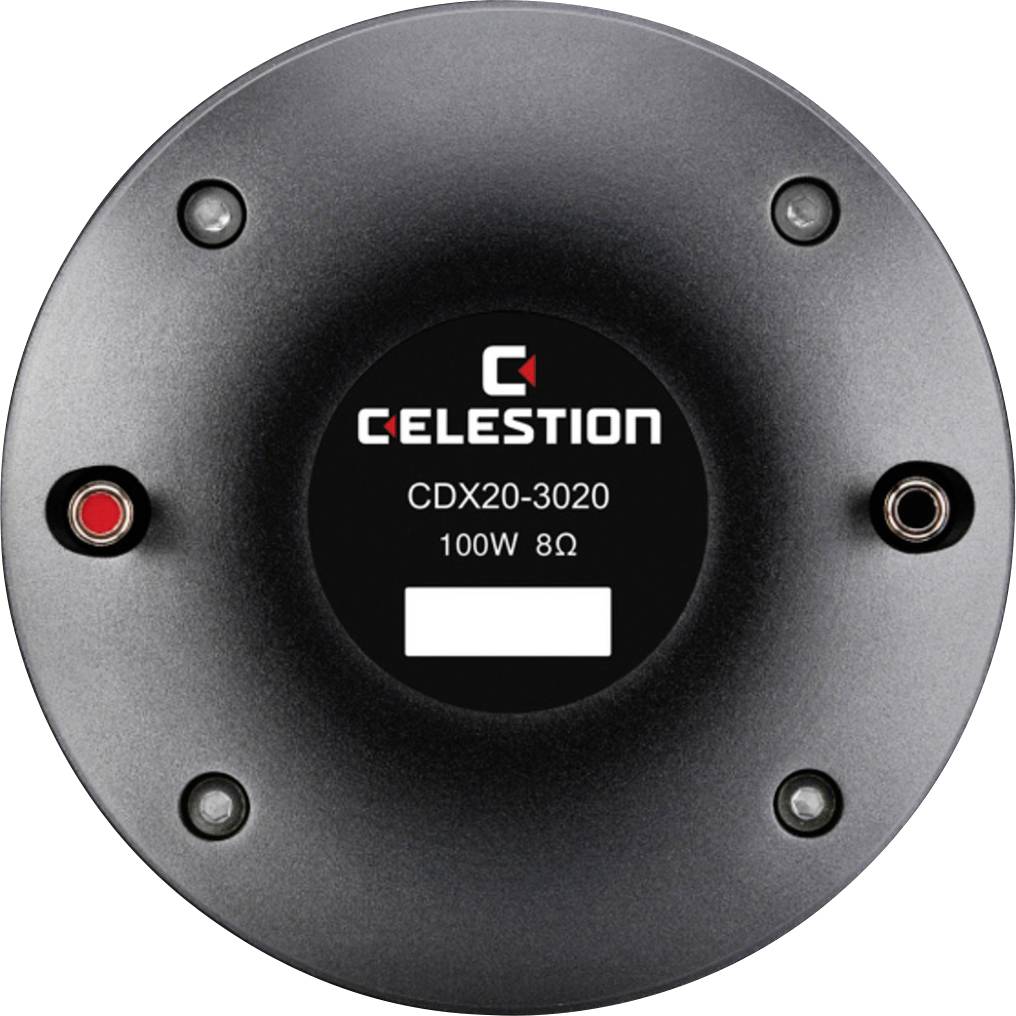

Monacor CDX20-3020/8 PA horn driver RMS capacity=100 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 5.4 kg
- Transmission technology: Cable
- Frequency range 500-18000 Hz
- Nominal capacity (RMS) 100 W.
- Characteristic sound pressure 107 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions 180 x 68 mm
- Outer diameter: 180 mm
- Width 180 mm
- Height: 180 mm
- Depth: 68 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 5.4 kg.
- Speaker type 2"
- Gross weight: 5.6 kg
- Impedance (Z) 8 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):800 Hz
- Music load capacity (MAX) 200 W
- Voice coil diameter 75 mm
- Hole diameter: Ø 102 mm (4x MN6)
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 50 mm
- Product type
PA horn driver
- RMS capacity
100 W
- Max. load
200 W
- Min. frequency
500 Hz
- Max. frequency
18000 Hz
- Frequency range
500 Hz - 18000 Hz
- Impedance
8 Ω
- Weight
5.4 kg
- (Ø)
180 mm
- Width
180 mm
- Height
180 mm
- Factory colour
Black
- Depth
68 mm
- Sound pressure
107 dB
- Speaker size (inch)
2 inch
Documents & Downloads
Datasheet
Datasheet 3340903 Monacor CDX20-3020/8 PA horn driver RMS capacity=100 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340903 Monacor CDX20-3020/8 PA horn driver RMS capacity=100 W 8 Ω
Description
PA HORN DRIVER, 100 W, 8 Ω
High-quality 50 mm compression driver (2") with 75 mm moving coil (3") and ferrite magnet One-part titanium diaphragm and crimp Recommended crossover frequency 800 Hz (12 dB/oct.) 4-hole-screws-Mounting
This text is machine translated.
High-quality 50 mm compression driver (2") with 75 mm moving coil (3") and ferrite magnet One-part titanium diaphragm and crimp Recommended crossover frequency 800 Hz (12 dB/oct.) 4-hole-screws-Mounting
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 500-18000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):800 Hz
- Nominal capacity (RMS) 100 W.
- Music load capacity (MAX) 200 W
- Characteristic sound pressure 107 dB/W/m
- Voice coil diameter: Ø 75 mm
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening Ø 50 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 102 mm (4x MN6)
- Dimensions: Ø 180 mm x 68 mm
- Outer diameter: Ø 180 mm
- Width: Ø 180 mm
- Height: Ø 180 mm
- Depth: 68 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 5.4 kg.
- Packing: 1
- Speaker type 2"
- Packaging dimensions (W x H x L) 0.23 x 0.089 x 0.19 m
- Gross weight: 5.6 kg
- Net weight: 5.4 kg
