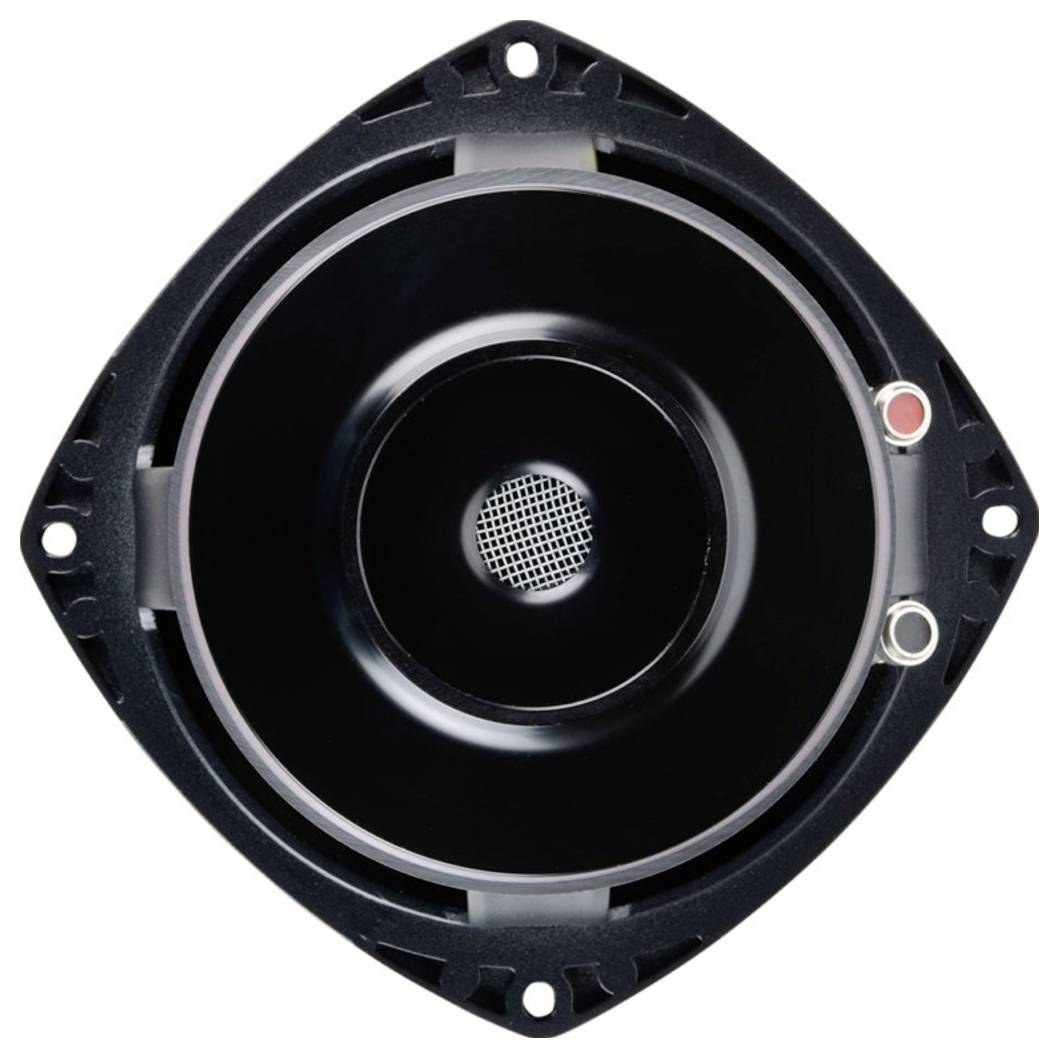

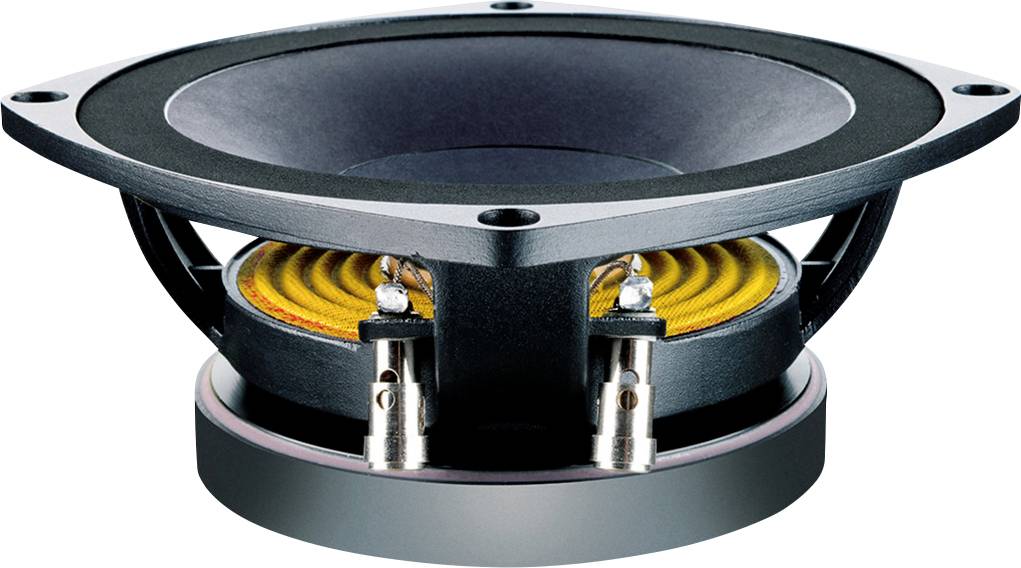

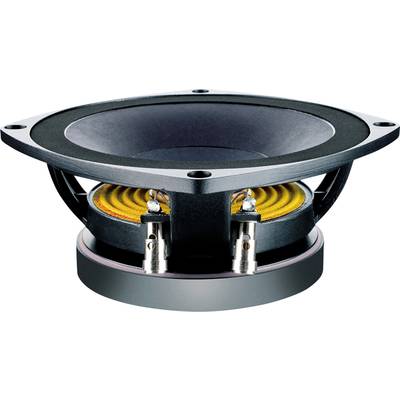

Monacor CF0617M/8 6.5 inch Mid-range speaker 200 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.9 kg
- Transmission technology: Cable

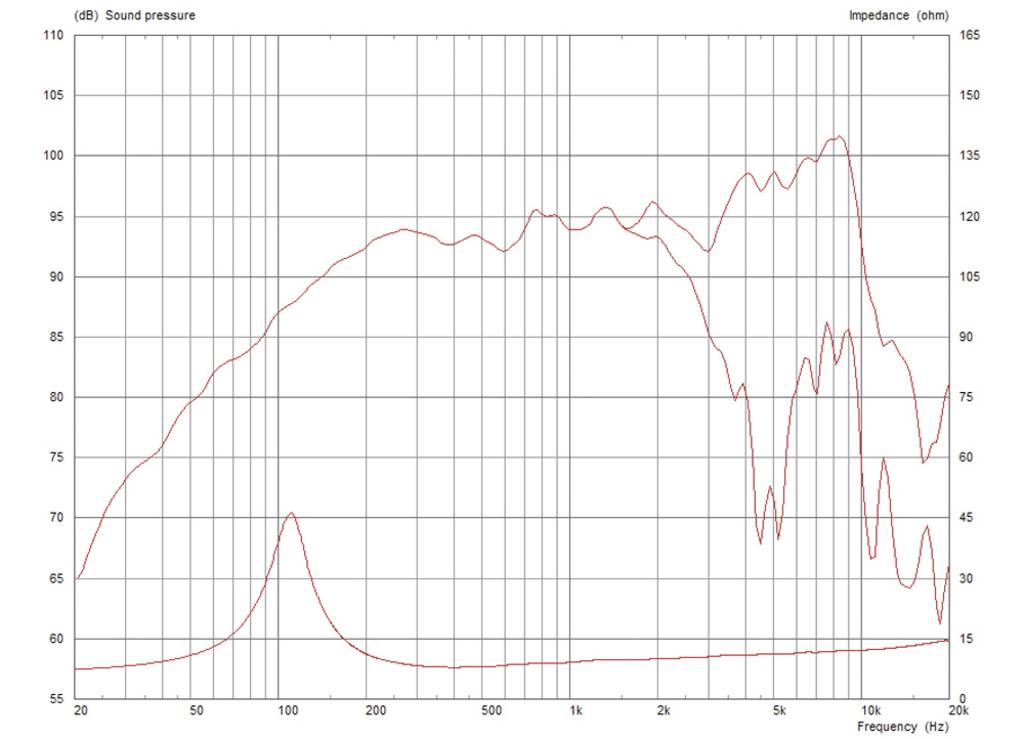

- Frequency range 300-7000 Hz
- Nominal capacity (RMS) 200 W.
- Characteristic sound pressure 96 dB/W/m
- Installation opening: 150 mm
- Installation depth: 78.5 mm
- Dimensions 189 x 189 x 78.5 mm
- Width: 189 mm
- Height: 189 mm
- Depth: 78.5 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.9 kg
- Speaker type 6.5"
- Gross weight: 2.5 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 116.6 Hz
- Music load capacity (MAX) 400 W
- Voice coil diameter 45 mm
- Hole diameter 173-175 mm
- Suspension compliance (Cms) 0.1 mm / N
- Moving mass (MMS): 11.5 g
- Mechanical quality (QMS): 6.93
- Electrical quality (QES): 0.481
- Overall quality (Qts): 0.451
- Equivalent volume (Vas): 5.4 l
- Direct current resistance (Re) 5.3 Ω
- Power factor (WxL) 9 Tm
- Voice coil former (Le):1.73 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 2.7 mm
- Effective Membrane area (SD): 153.9 cm2
- Magnet weight: 0.6 kg
- Voice coil length 8.4 mm
- Voice coil material: Copper-coated aluminum flat wire
- Product type
Mid-range speaker
- Speaker size (inch)
6.5 inch
- RMS capacity
200 W
- Max. load
400 W
- Impedance
8 Ω
- Sound pressure
96 dB
- Recess diameter
15 cm
- Recess depth
78.5 mm
- Weight
1.9 kg
- Height
18.9 cm
- Length
7.85 cm
- Width
18.9 cm
- Recess diameter
15 mm
- Frequency range
300-7000 Hz
Documents & Downloads
Datasheet
Datasheet 3340895 Monacor CF0617M/8 6.5 inch Mid-range speaker 200 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340895 Monacor CF0617M/8 6.5 inch Mid-range speaker 200 W 8 Ω
Description
PA MID-RANGE SPEAKER, 200 W, 8 Ω
Inverted dust cap enables the narrow positioning of a phase plug, e.g. in case of a horn application Long-term stable, temperature-resistant, flat foam surround Ideal for multi-way PA systems, high-quality studio monitors as well as hi-fi
This text is machine translated.
Inverted dust cap enables the narrow positioning of a phase plug, e.g. in case of a horn application Long-term stable, temperature-resistant, flat foam surround Ideal for multi-way PA systems, high-quality studio monitors as well as hi-fi
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 300-7000 Hz
- Resonance frequency (fs): 116.6 Hz
- Nominal capacity (RMS) 200 W.
- Music load capacity (MAX) 400 W
- Characteristic sound pressure 96 dB/W/m
- Suspension (Cms): 0.1 mm/N
- Moving earth (Mms): 11.5 g
- Mechanical quality (Qms): 6.93
- Electrical quality (QES): 0.481
- Overall quality (Qts): 0.451
- Equivalent volume (Vas): 5.4 l
- Direct current resistance (Re): 5.3 Ω
- Power factor (WxL) 9 Tm
- Voice coil former (Le): 1.73 mH
- Voice coil diameter: Ø 45 mm
- Voice coil length 8.4 mm
- Voice coil material: Copper-coated aluminum flat wire
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 2.7 mm
- Effective Membrane area (Sd): 153.9 cm²
- Magnet weight: 0.6 kg
- Mounting hole dia. 150 mm.
- Installation depth: 78.5 mm
- Hole diameter 173-175 mm
- Dimensions 189 x 189 x 78.5 mm
- Width: 189 mm
- Height: 189 mm
- Depth: 78.5 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.9 kg
- Packing: 1
- Speaker type 6.5"
- Packaging dimensions (W x H x L) 0.19 x 0.11 x 0.19 m
- Gross weight: 2.5 kg
- Net weight: 1.9 kg
