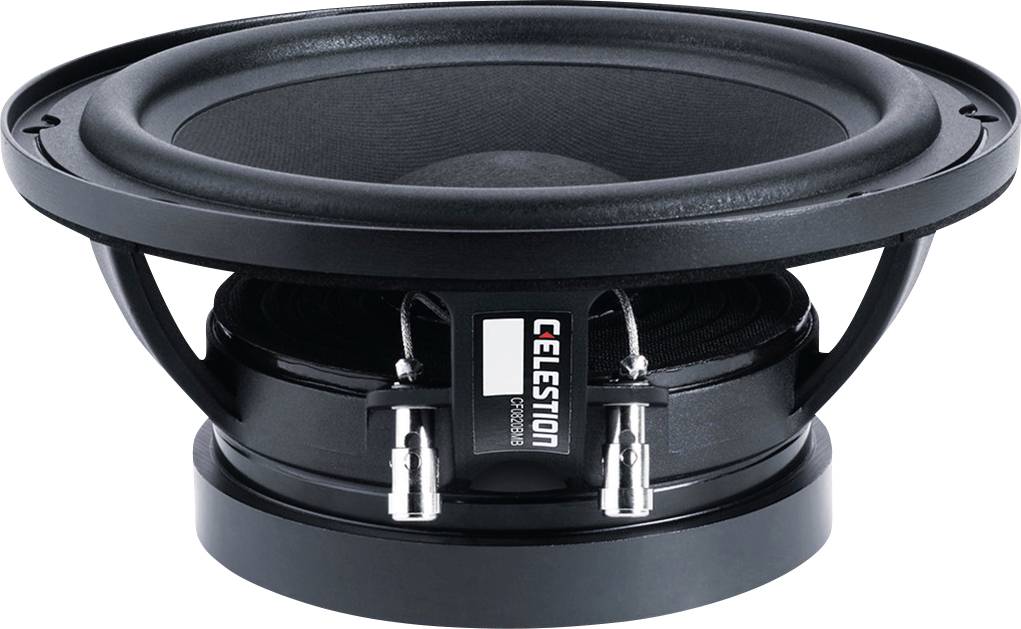

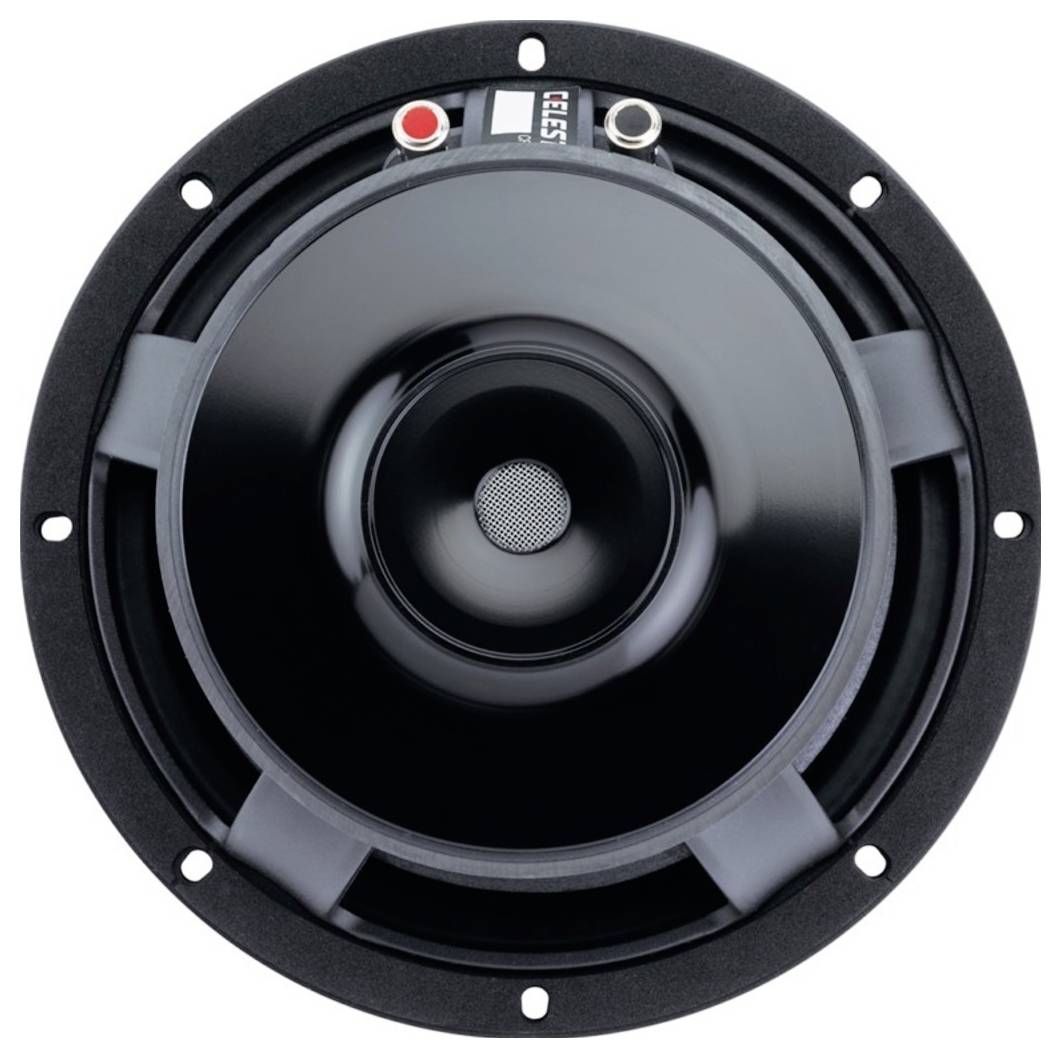

Monacor CF0820BMB/8 8 inch Mid-range speaker/subwoofer 250 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.1 kg
- Transmission technology: Cable
- Frequency range 50-6000 Hz
- Nominal capacity (RMS) 250 W.
- Characteristic sound pressure 93 dB/W/m
- Installation opening: 187 mm
- Installation depth: 108 mm
- Dimensions 215 x 108 mm
- Outer diameter: 215 mm
- Width 215 mm
- Height: 215 mm
- Depth: 108 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 3.1 kg
- Speaker type 8"
- Gross weight: 4 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 50.50 Hz
- Music load capacity (MAX) 500 W
- Voice coil diameter 50 mm
- Hole diameter 197-200 mm
- Suspension compliance (Cms) 0.31 mm / N
- Moving mass (MMS): 32.35 g
- Mechanical quality (QMS): 5.095
- Electrical quality (QES): 0.394
- Overall quality (Qts): 0.366
- Equivalent volume (Vas): 22.4 l
- Direct current resistance (Re) 5.45 Ω
- Power factor (WxL) 11.92 Tm
- Voice coil former (Le):0.78 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 7.25 mm
- Effective Membrane area (SD): 226.98 cm2
- Magnet weight: 0.99 kg
- Voice coil length 18.5 mm
- Voice coil material: Copper-coated aluminum
- Product type
Mid-range speaker/subwoofer
- Speaker size (inch)
8 inch
- RMS capacity
250 W
- Max. load
500 W
- Min. frequency
50 Hz
- Max. frequency
6000 Hz
- Impedance
8 Ω
- Sound pressure
93 dB
- Recess diameter
18.7 cm
- Recess depth
10.8 cm
- Weight
3.1 kg
- Factory colour
Black
- Frequency range
50 Hz - 6000 Hz
- Depth
10.8 cm
- (Ø)
21.5 cm
- Height
21.5 cm
- Width
21.5 cm
Documents & Downloads
Datasheet
Datasheet 3340907 Monacor CF0820BMB/8 8 inch Mid-range speaker/subwoofer 250 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340907 Monacor CF0820BMB/8 8 inch Mid-range speaker/subwoofer 250 W 8 Ω
Description
PA WOOFER, 250 W, 8 Ω
200 mm woofer (8") Aluminium cast basket Ferrite magnet Semi-circular rubber surround for high XMAX Balanced ventilation provides for improved cooling
This text is machine translated.
200 mm woofer (8") Aluminium cast basket Ferrite magnet Semi-circular rubber surround for high XMAX Balanced ventilation provides for improved cooling
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 50-6000 Hz
- Resonance frequency (fs): 50.50 Hz
- Nominal capacity (RMS) 250 W.
- Music load capacity (MAX) 500 W
- Characteristic sound pressure 93 dB/W/m
- Suspension (Cms): 0.31 mm/N
- Moving earth (Mms): 32.35 g
- Mechanical quality (Qms): 5.095
- Electrical quality (QES): 0.394
- Overall quality (Qts): 0.366
- Equivalent volume (Vas): 22.4 l
- Direct current resistance (Re): 5.45 Ω
- Voice coil former (Le): 0.78 mH
- Voice coil diameter: Ø 50 mm
- Voice coil length 18.5 mm
- Voice coil material: Copper-coated aluminum
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 7.25 mm
- Effective Membrane area (Sd): 226.98 cm²
- Magnet weight: 0.99 kg
- Mounting hole dia. 187 mm.
- Installation depth: 108 mm
- Hole diameter: Ø 197-200 mm
- Dimensions: Ø 215 mm x 108 mm
- Outer diameter: Ø 215 mm
- Width: Ø 215 mm
- Height: Ø 215 mm
- Depth: 108 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 3.1 kg
- Packing: 1
- Speaker type 8"
- Packaging dimensions (W x H x L) 0.226 x 0.13 x 0.226 m
- Gross weight: 4 kg
- Net weight: 3.1 kg
