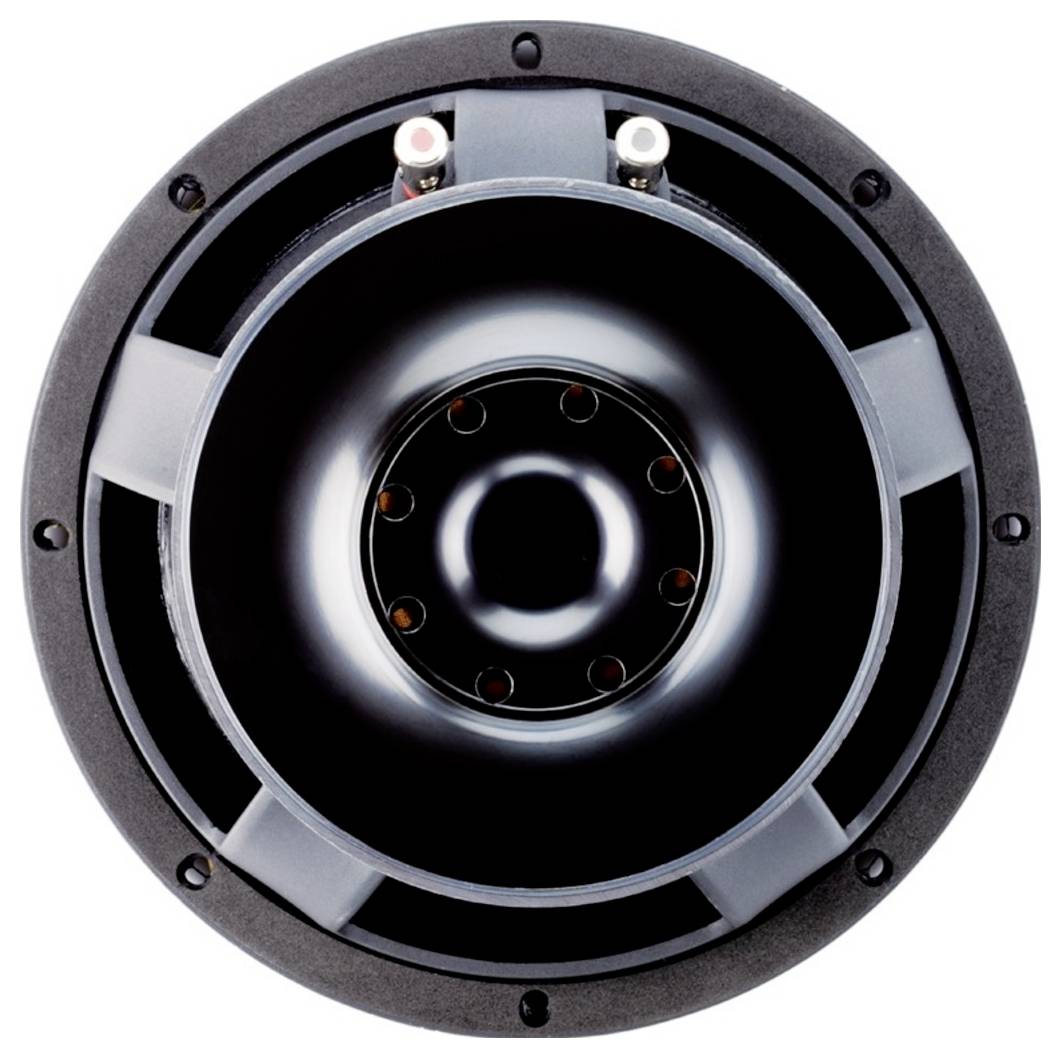

A black speaker viewed from above, showing the central membrane and outer mounting points.

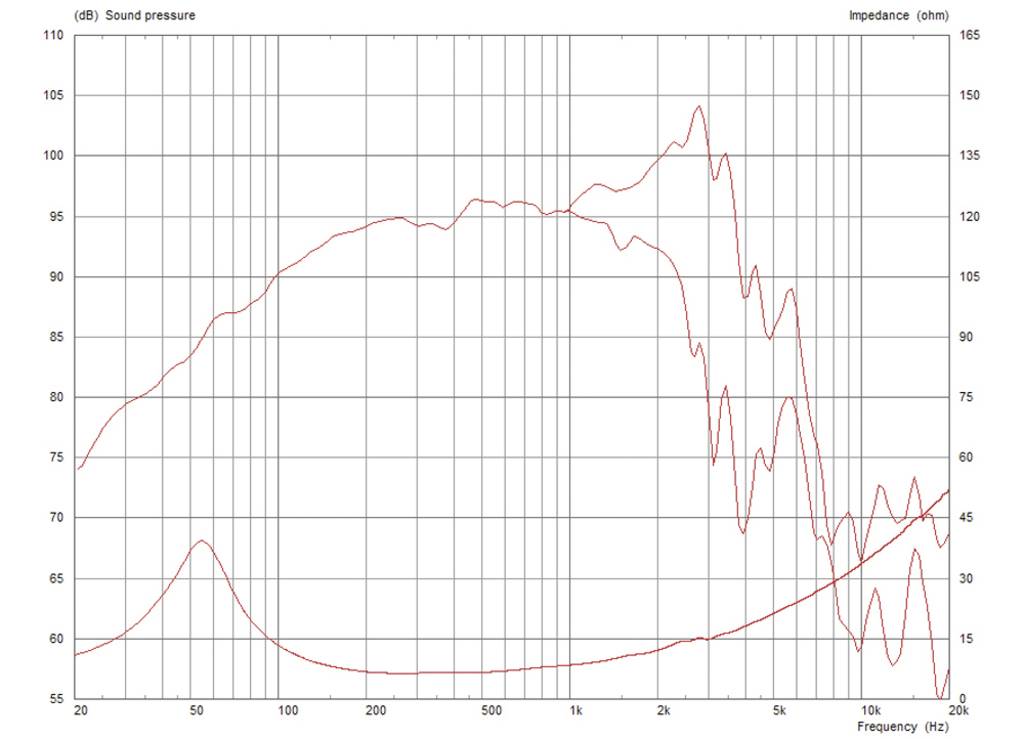

Monacor CF1025C/8 10 inch Mid-range speaker/subwoofer 300 W 8 Ω-2

1/3

Monacor

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 4.9 kg
Transmission technology: Cable
Frequency range 60-5000 Hz
Nominal capacity (RMS) 300 W.
Characteristic sound pressure 99 dB/W/m
Installation opening: 230.8 mm
Installation depth: 119 mm
Dimensions 265 x 119 mm
Outer diameter: 265 mm
Width 265 mm
Height: 265 mm
Depth: 119 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight: 4.9 kg.
Speaker type 10"
Gross weight: 5.6 kg
Impedance (Z) 8 Ω
Resonant frequency (fs): 54.8 Hz
Music load capacity (MAX) 600 W
Voice coil diameter 64 mm
Hole diameter 244,5-247 mm
Suspension compliance (Cms) 0.23 mm / N
Moving mass (MMS): 37.03 g
Mechanical quality (QMS): 2.338
Electrical quality (QES): 0.299
Overall quality (Qts): 0.265
Equivalent volume (Vas): 38.6 l
Direct current resistance (Re) 5.15 Ω
Power factor (WxL) 14.82 Tm
Voice coil former (Le):0.57 mH
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 4.25 mm
Effective Membrane area (SD): 346.36 cm2
Magnet weight: 1.7 kg
Voice coil length 12.5 mm
Voice coil material: Copper-coated aluminum flat wire

Product type: Mid-range speaker/subwoofer

Speaker size (inch): 10 inch

RMS capacity: 300 W

Max. load: 600 W

Min. frequency: 60 Hz

Max. frequency: 5000 Hz

Impedance: 8 Ω

Sound pressure: 99 dB

Recess diameter: 23.08 cm

Recess depth: 11.9 cm

Weight: 4.9 kg

Factory colour: Black

Frequency range: 60 Hz - 5000 Hz

Depth: 11.9 cm

(Ø): 26.5 cm

Height: 26.5 cm

Width: 26.5 cm

Documents & Downloads

Datasheet

Datasheet 3340910 Monacor CF1025C/8 10 inch Mid-range speaker/subwoofer 300 W 8 Ω

User & Safety Instructions

User & Safety Instructions 3340910 Monacor CF1025C/8 10 inch Mid-range speaker/subwoofer 300 W 8 Ω

Description

PA MID-RANGE SPEAKER, 300 W, 8 Ω
Balanced ventilation provides for improved cooling Two demodulation rings

This text is machine translated.

Features

Impedance (Z) 8 Ω
Transmission technology: Cable
Frequency range 60-5000 Hz
Resonance frequency (fs): 54.8 Hz
Nominal capacity (RMS) 300 W.
Music load capacity (MAX) 600 W
Characteristic sound pressure 99 dB/W/m
Suspension (Cms): 0.23 mm/N
Moving earth (Mms): 37.03 g
Mechanical quality (Qms): 2.338
Electrical quality (QES): 0.299
Overall quality (Qts): 0.265
Equivalent volume (Vas): 38.6 l
Direct current resistance (Re): 5.15 Ω
Power factor (WxL) 14.82 Tm
Voice coil former (Le): 0.57 mH
Voice coil diameter: Ø 64 mm
Voice coil length 12.5 mm
Voice coil material: Copper-coated aluminum flat wire
Voice coil former: Glass fiber
Linear deflection (XMAX): ± 4.25 mm
Effective Membrane area (Sd): 346.36 cm²
Magnet weight: 1.7 kg
Mounting hole dia. 230.8 mm.
Installation depth: 119 mm
Hole diameter: Ø 244,5-247 mm
Dimensions: Ø 265 mm x 119 mm
Outer diameter: Ø 265 mm
Width: Ø 265 mm
Height: Ø 265 mm
Depth: 119 mm
Colour, black
Ass. Operating temperature 0-40 °C
Weight: 4.9 kg.
Packing: 1
Speaker type 10"
Packaging dimensions (W x H x L) 0.3 x 0.16 x 0.3 m
Gross weight: 5.6 kg
Net weight: 4.9 kg
