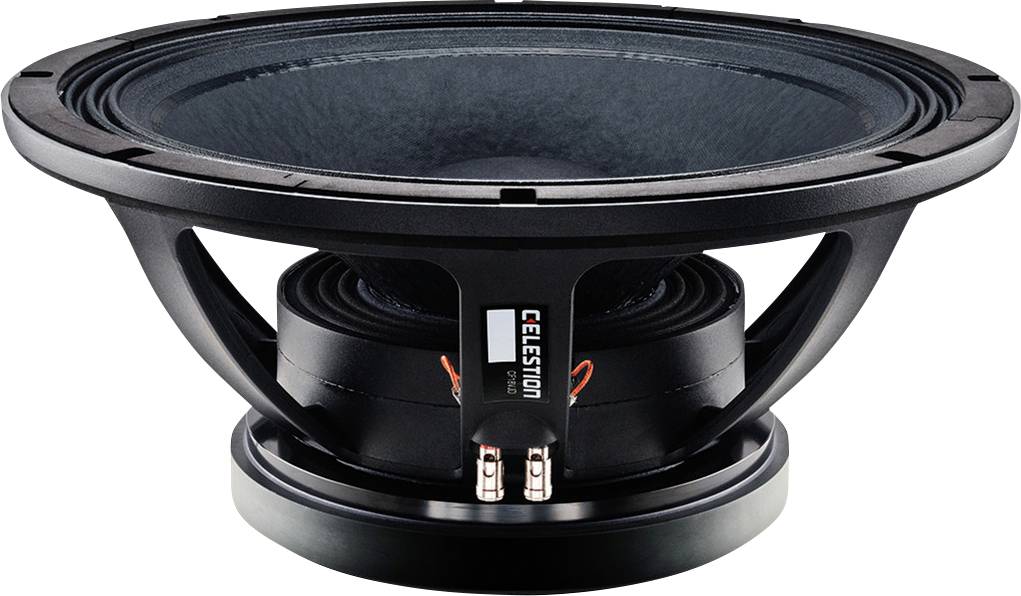

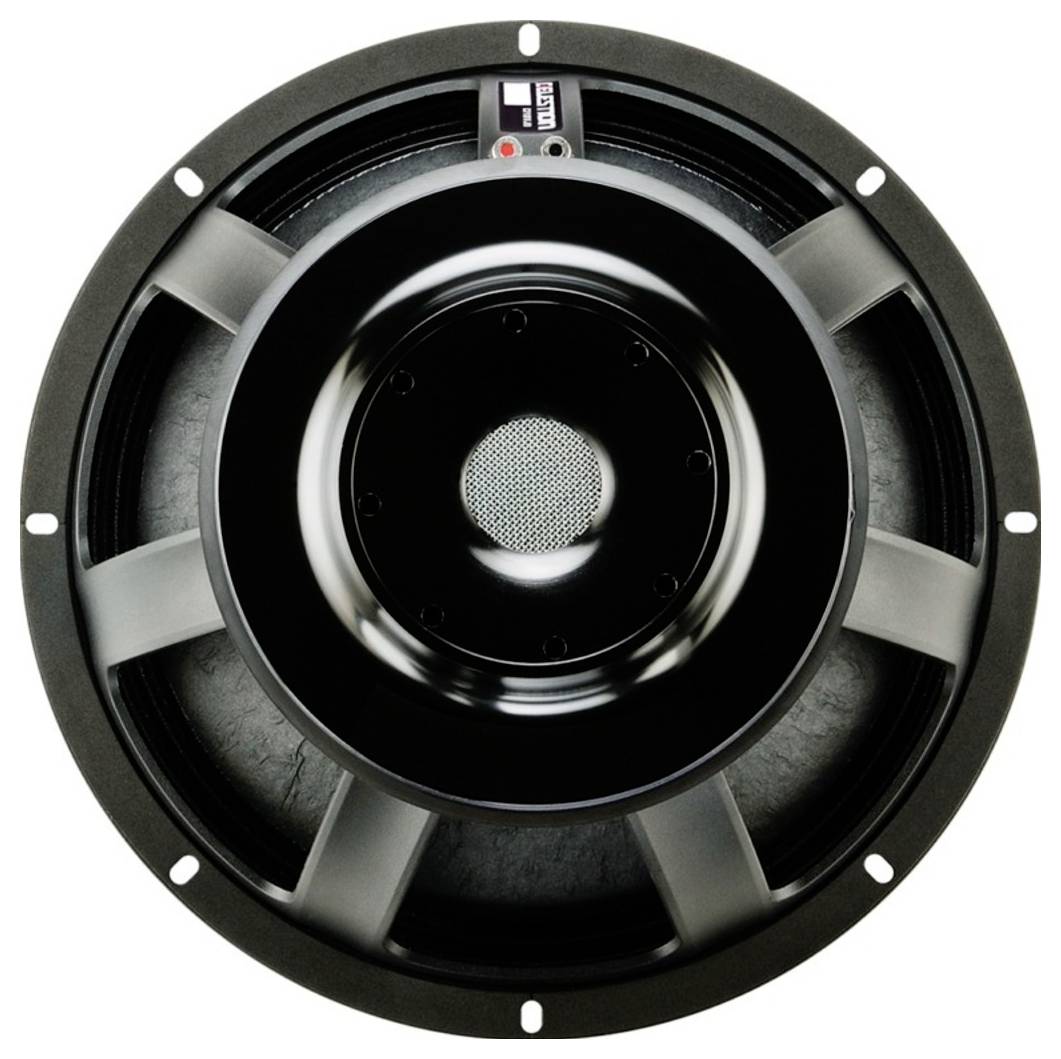

Monacor CF18VJD/8 18 inch PA subwoofer 1600 W 8 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 21 kg
- Transmission technology: Cable

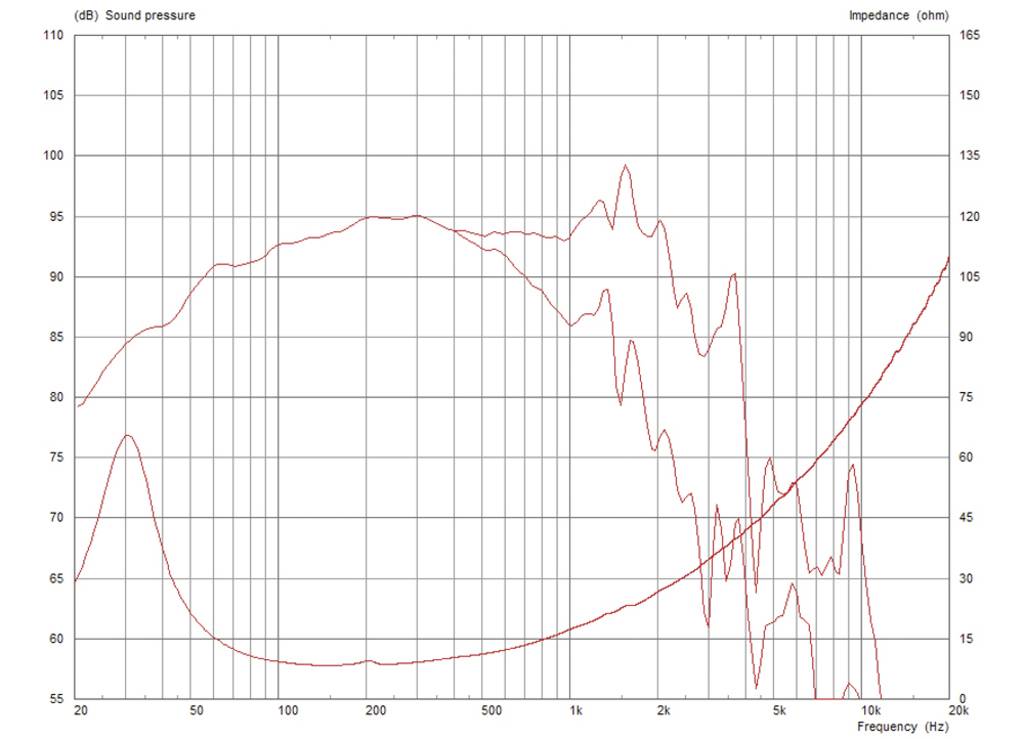

- Frequency range 25-1500 Hz
- Nominal capacity (RMS) 1600 W.
- Characteristic sound pressure 97 dB/W/m
- Installation opening: 416 mm
- Installation depth: 233 mm
- Dimensions 462 x 233 mm
- Outer diameter: 462 mm
- Width 462 mm
- Height: 462 mm
- Depth: 233 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 21 kg
- Speaker type 18"
- Gross weight: 23.3 kg
- Impedance (Z) 8 Ω
- Resonant frequency (fs): 34.5 Hz
- Music load capacity (MAX) 3200 W
- Voice coil diameter 125 mm
- Hole diameter 432-441 mm
- Suspension compliance (Cms) 0.08 mm / N
- Moving mass (MMS): 265.420 g
- Mechanical quality (QMS): 4.573
- Electrical quality (QES): 0.332
- Overall quality (Qts): 0.309
- Equivalent volume (Vas): 145.8 l
- Direct current resistance (Re) 6.13 Ω
- Power factor (WxL) 32.59 Tm
- Voice coil former (Le):1.87 mH
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 12 mm
- Effective Membrane area (SD): 1134.12 cm2
- Magnet weight: 4.93 kg
- Voice coil length 30 mm
- Voice coil material: Copper wire
- Product type
PA subwoofer
- Speaker size (inch)
18 inch
- RMS capacity
1600 W
- Max. load
3200 W
- Min. frequency
25 Hz
- Max. frequency
1500 Hz
- Impedance
8 Ω
- Sound pressure
97 dB
- Recess diameter
41.6 cm
- Recess depth
23.3 cm
- Weight
21 kg
- Factory colour
Black
- Frequency range
25 Hz - 1500 Hz
- Depth
23.3 cm
- Height
46.2 cm
- Width
46.2 cm
Documents & Downloads
Datasheet
Datasheet 3340894 Monacor CF18VJD/8 18 inch PA subwoofer 1600 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3340894 Monacor CF18VJD/8 18 inch PA subwoofer 1600 W 8 Ω
Description
PA SUBWOOFER, 1600 W, 8 Ω
Vented magnet arrangement for dynamic heat dissipation Two demodulation rings Longer moving coil for better control at high output Optimised double suspension
This text is machine translated.
Vented magnet arrangement for dynamic heat dissipation Two demodulation rings Longer moving coil for better control at high output Optimised double suspension
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 25-1500 Hz
- Resonance frequency (fs): 34.5 Hz
- Nominal capacity (RMS) 1600 W.
- Music load capacity (MAX) 3200 W
- Characteristic sound pressure 97 dB/W/m
- Suspension (Cms): 0.08 mm/N
- Moving earth (Mms): 265.420 g
- Mechanical quality (Qms): 4.573
- Electrical quality (QES): 0.332
- Overall quality (Qts): 0.309
- Equivalent volume (Vas): 145.8 l
- Direct current resistance (Re): 6.13 Ω
- Power factor (WxL) 32.59 Tm
- Voice coil former (Le): 1.87 mH
- Voice coil diameter: Ø 125 mm
- Voice coil length 30 mm
- Voice coil material: Copper wire
- Voice coil former: Glass fiber
- Linear deflection (XMAX): ± 12 mm
- Effective Membrane area (Sd): 1134.12 cm²
- Magnet weight: 4.93 kg
- Mounting hole dia. 416 mm.
- Installation depth: 233 mm
- Hole diameter: Ø 432-441 mm
- Dimensions: Ø 462 mm x 233 mm
- Outer diameter: Ø 462 mm
- Width: Ø 462 mm
- Height: Ø 462 mm
- Depth: 233 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 21 kg
- Packing: 1
- Speaker type 18"
- Packaging dimensions (W x H x L) 0.5 x 0.25 x 0.5 m
- Gross weight: 23.3 kg
- Net weight: 21 kg
