Buy Monacor CLUB-1SUB Passive PA subwoofer 20 cm 8 inch 600 W 1 pc(s)

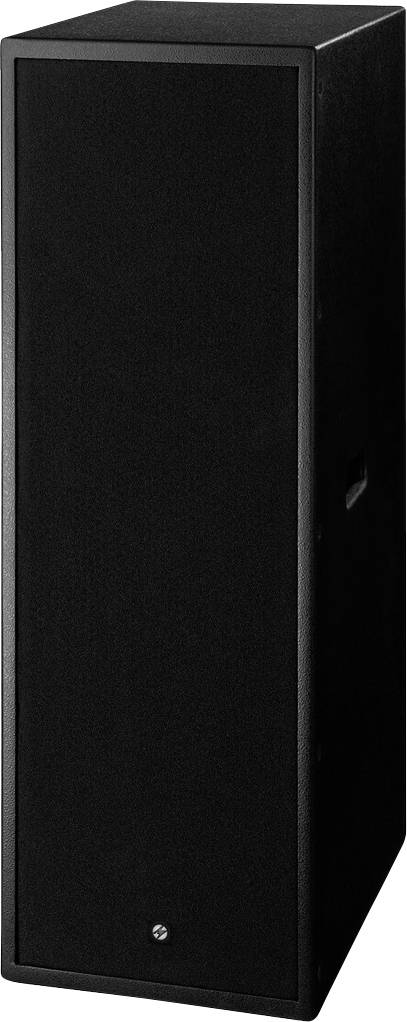

Black, rectangular speaker with discreet design against white background.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

IMG Stage Line CLUB-1 SUB PA subwoofer

RMS capacity:600 W
Max. load (W):1200 W
8 inch
122 dB

Technical specifications

System: Bass reflex subwoofer
Woofer 4 x 20 cm (8)
Tweeter: -
Maximum load capacity 1200 WMAX
Nominal load 600 WRMS
Impedance: 8 ohms/2 x 4 ohms/2 ohms
Frequency range 45-250 Hz
Avg. Sound pressure (1 W/m): 96 dB
Max. Nominal sound pressure 122 dB
Sul. Operating temperature: 0-40 °C.
Dimensions: 300x880x440 mm
Inputs: 1x or 2xNEUTRIK-type SPK, switchable
Outputs: -
Weight: 29.5 kg"

Product type: Passive PA subwoofer

RMS capacity: 600 W

Max. load: 1200 W

Speaker size (cm): 20 cm

Speaker size (inch): 8 inch

Max. sound pressure: 122 dB

Interfaces: SPK type socket

Dim: (W x H x D) 30 x 88 x 44 cm

Impedance: 8 Ω

Frequency range: 45 - 250 Hz

Content: 1 pc(s)

Width: 30 cm

Height: 88 cm

Depth: 44 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1331434 Monacor CLUB-1SUB Passive PA subwoofer 20 cm 8 inch 600 W 1 pc(s)

Features

The club system from IMG Stage Line: Kompakt-Vollbereichslautsprecher, subwoofer and amplifier, the absolutely perfectly co-ordinated with one another and in the combination to a maximum best shot, measured at the dimensions and the price simply fascinate! Also, individually or with other most significant sound products, the devices offer the club series from IMG Stage Line but unique possibilities! The perfect performance center for volume and variable sound systems. Ideal powerful for clubs and lounges, catering, room sound, music scene pubs, dance schools, fitness studios with course rooms, etc. The 3-channel design with extremely high performance, variable frequency filters and various connection options can be a very large number of different systems concepts. Particularly suitable for IMG Stage Line Club Speaker CLUB-1 SUB and club-1 top. It can, however, other high-quality PA speakers operate
Very high output power.
High load stability (Sat-Out: 4 Ohm, sub-out 2 Ohm)
Integrated limiter
Integrated Subsonic Filter (30 Hz)
Ground-lift
Professional connection facilities
Regulated fan (with cold device off.) Professional Subwoofer, 1200 WMAX, 600WRMS/8 ohms or 2 ohms or 2 x 600WMAX, 2x 300 WRMS/4 Ohm
4 x 20 cm Top-Class Woofer (8)
Slim, compact design
Variable impedance concept (can be switched between 1 x 8 Ohm and 2 x 4 Ohm, in parallel connection in the 2 x 4 Ohm-Stellung as 1x 2 Ohm)
High-quality, varnished MDF cabinet with acoustic foam covered Vollvergitterung
For the operation is an amplifier with integrated or external active crossover filter erforderlichdiscret 02/2011" at the club system is especially convincing the well thought out approach for high flexibility, reliability and solid quality with good power reserves. High performance, good facilities and processing you get for your money in all cases and the sound is for many, even the most demanding applications in the scene and club catering make sure is more than sufficient." "The powerful amplifier and tools 4 music 01/2011 the slim bass conjure up a smile to the face of ravern self-bass hungry." + good processing + Slim Design + impedance option beat 69, 07-08/2011" a flexible system, in continuous use proved to the system as a stable and reliable. The small satellites are pleasant assertive. The Subwoofer round blade and full. The club offers sophisticated, compact and reliable sound on good level at a fair price." SOUNDCHECK 10/2010 "a beautiful round feel-good bass as a slim tower, with Impedance switch." with the extremely high load-carrying capacity and a perfect sound can already with a club-1 SUB a system in the bass. to be removed that several top parts, such as for the combination perfectly suitable CLUB-1 TOP are ideally supplemented. In the case of particularly high level requirements in the bass can also be easily up to three CLUB-1 SUB for example on the Mono-Sub-channel of the STA-1603 CLUB (depending in 8-Ohm-Mode, all parallel). In the 2x4-Ohm-Betrieb is the club-1 SUB, of course, also an ideal game partner to other multi-channel amplifier or all of the suitable 2-channel subwoofer amplifier."
