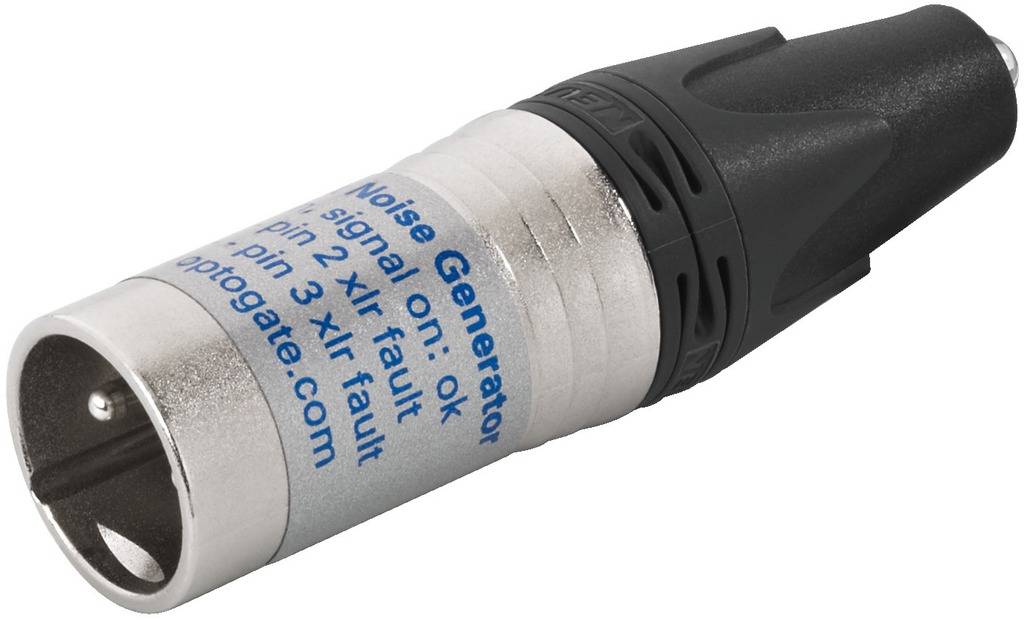

Monacor CTG-1NOISE XLR generator XLR generator
EAN:
Part number:
Item no:
Technical specifications
- Product type
XLR generator
n.rel.
- Dim
(L x W x H) 19 x 19 x 74 mm
- Weight
32 g
- Width
19 mm
- Height
74 mm
- Length
19 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331462 Monacor CTG-1NOISE XLR generator XLR generator
Information
Information 1331462 Monacor CTG-1NOISE XLR generator XLR generator
Description
Features
- XLR-function tester
- With integrated Pink noise generator
- For the quick and easy function testing symmetric microphone cable or microphone inputs on the stage
- Optical error message via LED
- Blinking 2x: pin 2 of the XLR-cable is defective
- 3 x flashing: pin 3 of the XLR cable is defective
- The LED is off: pin 1 or phantom power supply is defective
- LED lights up permanently: Cable is error-free, noise generator
- 3-pole NEUTRIK XLR plug
- Power supply via phantom power supply 9-48 V
- Output amplitude 100 mVss
- This text is machine translated.
