Monacor DA-10-260/T PA ceiling speaker 1.5 W White 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Monaocr since -10-260/T PA loudspeaker
- 100-V transformer technology
- EN -54-24 certification
- Protection class IP65
Technical specifications
- Product type
PA ceiling speaker
- Operating voltage
100 V
- RMS capacity
1.5 W
- Max. load
12 W
- Max. sound pressure
103 dB
- Features
weatherproof
IP65
- Material
Aluminium
- Length
19.7 cm
- Width
16.6 cm
- Content
1 pc(s)
- Weight
2.31 kg
- Factory colour
White
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1780952 Monacor DA-10-260/T PA ceiling speaker 1.5 W White 1 pc(s)
Description

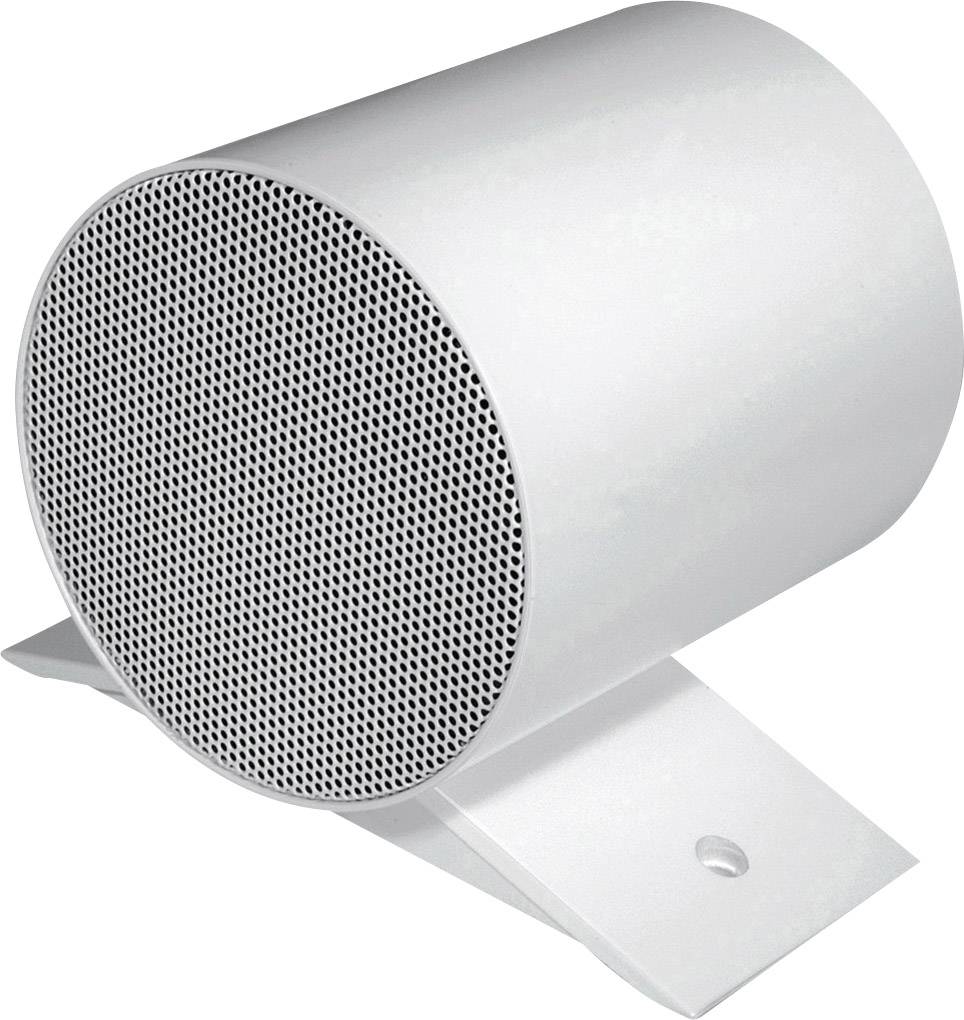

The 10 W strong sound projector is equipped with two 13-cm wide-band speakers and a 100V transformer with 4 power taps. A robust, plastic coated aluminum housing in RAL 9010, as well as a vandal-proof aluminum mounting plate ensure a permanent installation of this speaker. For additional operational safety, the 2-pole-Ceramic clamp and thermal protection, as well as the moisture impregnation of the loudspeaker chassis. The speaker is also with the high IP65 degree of protection against the risks of environmental influences. Particularly suitable for the application in corridors and halls. The speaker has the conformity to the British Standard BS 5839, Part 8.
This text is machine translated.
This text is machine translated.
Features
- Wall mounting
- EN -54-24 certification
- 100-V transformer technology
- 2 x 13-cm wide-band speaker for birektionale radiation
- 100-V transformer with power taps 10/6/3/1.5 W
- Connection is made via a ceramic terminal with thermal fuse in the mounting base.
- Stable plastic-coated aluminum casing with front grilles
- Stable vandal-proof aluminum mounting plate
- IP65.
