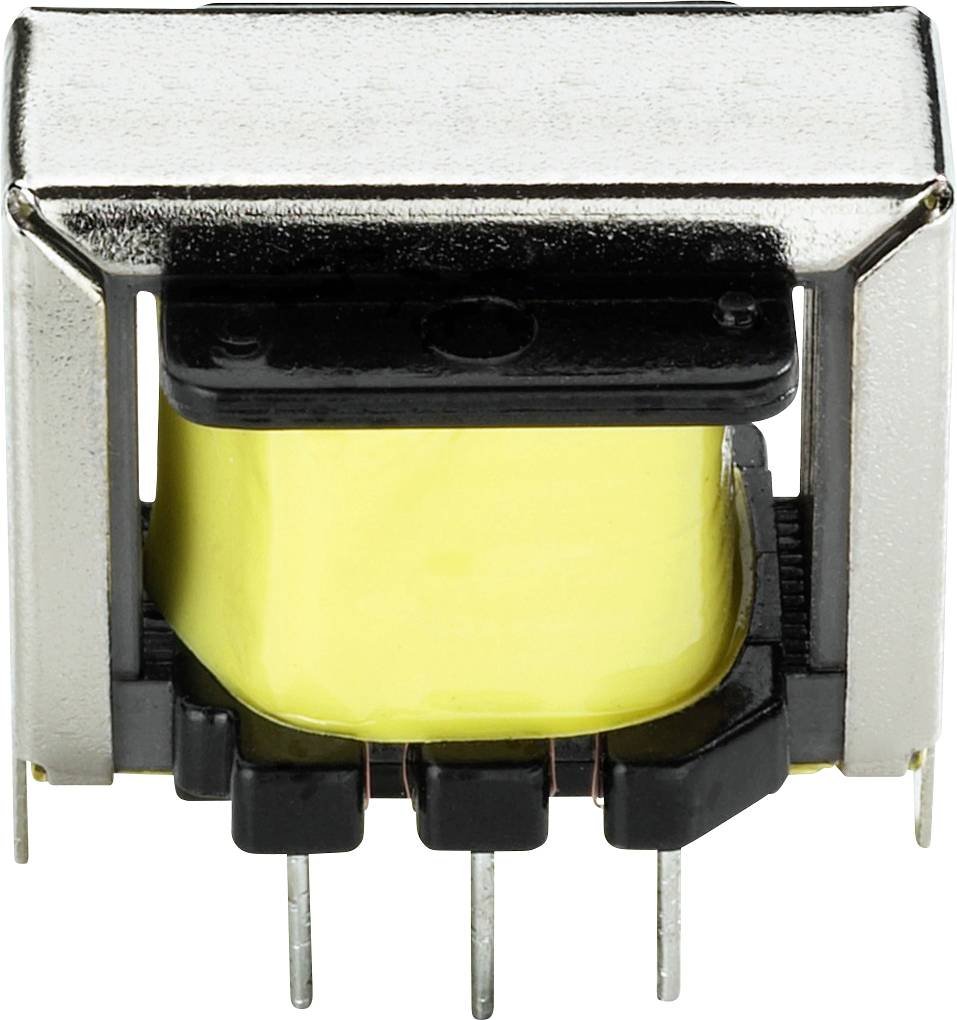

Monacor DIB-110 DI box transducer DI box transducer
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.03 kg
- Frequency range 15-30000 Hz
- Dimensions 25 x 24 x 21 mm
- Width: 25 mm
- Height: 24 mm
- Depth: 21 mm
- Ass. Operating temperature 0-40 °C
- Weight 0.028 kg
- Inputs: PCB connections
- Outputs: PCB connections

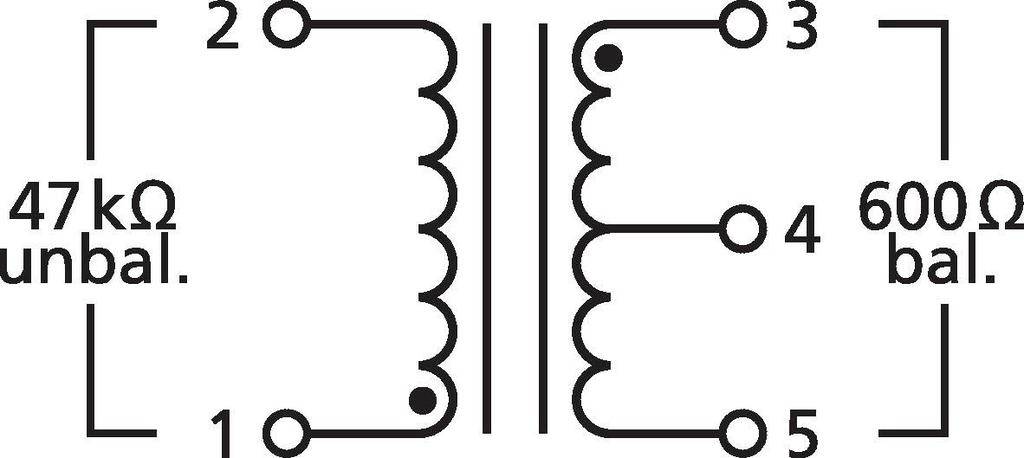

- Output impedance 600 Ω, sym.
- Type: DI box
- 47 kΩ input impedance, unbalanced
- Transmission ratio 10:1
- Product type
DI box transducer
n.rel.
- Dim
(L x W x H) 21 x 25 x 24 mm
- Weight
28 g
- Width
25 mm
- Height
24 mm
- Length
21 mm
Documents & Downloads
Datasheet
Datasheet 3340540 Monacor DIB-110 DI box transducer DI box transducer
User & Safety Instructions
User & Safety Instructions 3340540 Monacor DIB-110 DI box transducer DI box transducer
Description
DI transformer 10:1
Unshielded version with Print connections Broadband design Transition from unbalanced to balanced and reverse galvanic separation for avoiding/eliminating ground loop Maximum input voltage 5 V (1% sine wave distortion/40 Hz)
This text is machine translated.
Unshielded version with Print connections Broadband design Transition from unbalanced to balanced and reverse galvanic separation for avoiding/eliminating ground loop Maximum input voltage 5 V (1% sine wave distortion/40 Hz)
This text is machine translated.
Features
- Type: DI box
- Frequency range 15-30000 Hz
- 47 kΩ input impedance
- /unbalanced
- Output impedance 600 Ω
- balanced
- Transmission ratio 10:1
- Ass. Operating temperature 0-40 °C
- Dimensions 25 x 24 x 21 mm
- Weight: 28 g
- Inputs: PCB connections
- Outputs: PCB connections
- Width: 25 mm
- Height: 24 mm
- Depth: 21 mm
- Weight 0.028 kg
